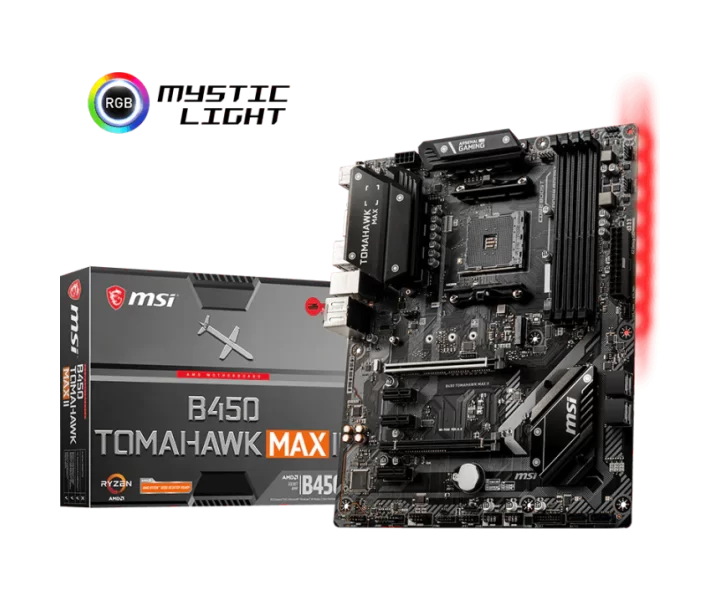

B450 TOMAHAWK MAX II özellikleri ve fiyatları

B450 TOMAHAWK MAX II teknik özellikleri

Model kodu

B450 TOMAHAWK MAX II

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4 x DDR4 memory slots, up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required. 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE); For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Bellekte hata düzeltme (ECC)

Non-ECC

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

AMD CPU; 2 x SATA 6Gb/s ports; 1 x M.2 slot (Key M); Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s; Supports 2242/ 2260 /2280/ 22110 storage devices; AMD B450; 4 x SATA 6Gb/s ports; SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD B450; Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB bağlantısı

AMD B450; 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel; 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel; 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector; 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); AMD CPU; 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1 x Realtek 8111H Gigabit LAN controller

Kablolu ağ denetleyicisi

1 x Realtek 8111H Gigabit LAN controller

Ses yongası

Realtek ALC892/ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 6 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports); 1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors; 1 x TPM module connector; 1 x Front panel audio connector; 2 x System panel connectors; 1 x Chassis Intrusion connector; 1 x Serial Port connector; 1 x Clear CMOS jumper; 2 x 5050 RGB LED strip 12V connectors

Güç bağlantıları

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors

Fan bağlantısı sayısı

6

RGB aydınlatma bağlantısı sayısı

2

Arka panel bağlantıları

Flash BIOS Button; PS/2 Combo Port; USB 3.2 Gen 1 5Gbps Type-A ports; LAN Port; HD Audio Connectors; USB 2.0 Port; DVI-D Port; HDMI Port; USB 3.2 Gen 2 10Gbps Type-A+C ports

Görüntü çıkışları ve kullanım koşulları

1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz; 1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz; Maximum shared memory of 16GB; Only available when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

TPM güvenlik modülü bağlantısı

1 x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

PCIe yuvaları

1 x PCIe 3.0 x16 slot (PCI_E1); 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed; 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode); 3 x PCIe 2.0 x1 slots; PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

PCIe sürümü

PCIe 3.0 / PCIe 2.0

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4; Processor: See supported processors; Chipset: AMD B450 Chipset; Memory: 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.; Memory: Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); Memory: For AMD Ryzen Gen3 (R5/R7/R9); Memory: Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE); Memory: For AMD Other CPU; Memory: Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: See supported memory; Slots: 1 x PCIe 3.0 x16 slot (PCI_E1); Slots: 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed; Slots: Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed; Slots: 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode); Slots: 3 x PCIe 2.0 x1 slots; Slots: PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.; Onboard Graphics: 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz; Onboard Graphics: 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz; Onboard Graphics: Maximum shared memory of 16GB, Onboard Graphics: Only available when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Multi-GPU: Supports 2-Way AMD CrossFire Technology; Storage: AMD CPU; Storage: 2 x SATA 6Gb/s ports; Storage: 1 x M.2 slot (Key M); Storage: Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s; Storage: Supports 2242/ 2260 /2280/ 22110 storage devices; Storage: AMD B450; Storage: 4 x SATA 6Gb/s ports; Storage: SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.; RAID: AMD B450; RAID: Supports RAID 0, RAID1 and RAID 10 for SATA storage devices; USB: AMD B450; USB: 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel; USB: 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel; USB: 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector; USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); USB: AMD CPU; USB: 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; Audio: Realtek ALC892/ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1 x Realtek 8111H Gigabit LAN controller; Internal connectors: 1 x 24-pin ATX main power connector, Internal connectors: 1 x 8-pin ATX 12V power connector; Internal connectors: 6 x SATA 6Gb/s connectors; Internal connectors: 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1 x 4-pin CPU fan connector; Internal connectors: 1 x 4-pin water-pump-fan connector; Internal connectors: 4 x 4-pin system fan connectors; Internal connectors: 1 x TPM module connector; Internal connectors: 1 x Front panel audio connector; Internal connectors: 2 x System panel connectors; Internal connectors: 1 x Chassis Intrusion connector; Internal connectors: 1 x Serial Port connector; Internal connectors: 1 x Clear CMOS jumper; Internal connectors: 2 x 5050 RGB LED strip 12V connectors; Back panel ports: Flash BIOS Button; Back panel ports: PS/2 Combo Port; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A ports; Back panel ports: LAN Port; Back panel ports: HD Audio Connectors; Back panel ports: USB 2.0 Port; Back panel ports: DVI-D Port; Back panel ports: HDMI Port; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A+C ports; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Operating System: Support for Windows 7 64-bit; Operating System: * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU., Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
