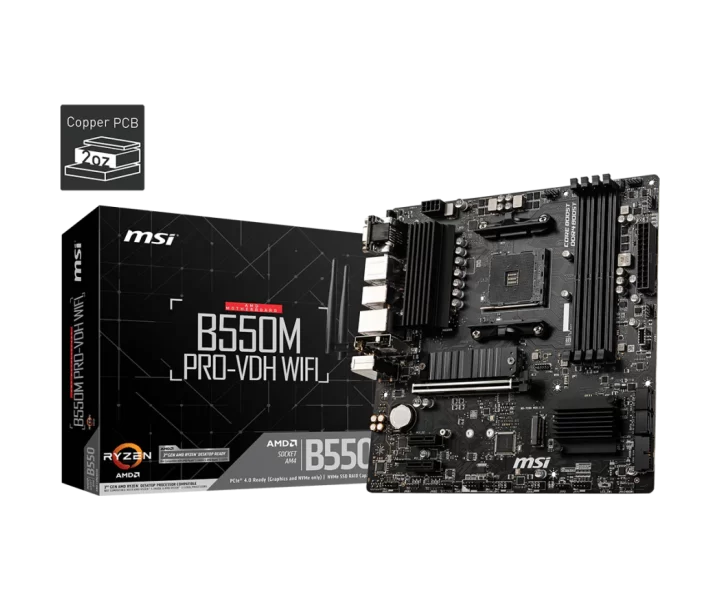

B550M PRO-VDH WIFI özellikleri ve fiyatları

B550M PRO-VDH WIFI teknik özellikleri

Model kodu

B550M PRO-VDH WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ

Bellek hızı ve uyumluluk koşulları

DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); 2x PCIe 3.0 x1 slots; The supported specification depends on installed processor.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices; The supported specification depends on installed processor.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); AMD Processor; 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8111HN Gigabit LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8111HN Gigabit LAN controller

Ses yongası

Realtek ALC892/ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Serial port connector; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector; 1x Clear CMOS jumper

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors

Fan bağlantısı sayısı

5

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

VGA; USB 3.2 Gen 1 5Gbps Type-A; Keyboard / Mouse; LAN; Flash BIOS Button; DisplayPort; HDMI™; USB 2.0; Wi-Fi Antenna connectors; 3x Audio jacks

Görüntü çıkışları ve kullanım koşulları

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Support HDCP 1.4 & 2.3; Maximum shared memory of 16 GB; Available for the processor with integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

TPM güvenlik modülü bağlantısı

1xTPM module connector

Wi-Fi

Wi-Fi AC; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.; Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

Bluetooth sürümü

4.2

Boyutlar

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors; CPU: See supported processors; Chipset: AMD B550 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Memory: Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; Memory: 1DPC 1R max speed 4400 MHZ; Memory: 1DPC 2R max speed 3733 MHZ; Memory: 2DPC 1R max speed 3866 MHZ; Memory: 2DPC 2R max speed 3466 MHZ; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory; Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); Expansion Slot: 2x PCIe 3.0 x1 slots; Expansion Slot: The supported specification depends on installed processor.; Onboard Graphics: 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; Onboard Graphics: 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; Onboard Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Onboard Graphics: Support HDCP 1.4 & 2.3; Onboard Graphics: Maximum shared memory of 16 GB, Onboard Graphics: Available for the processor with integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Storage: AMD B550 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 2x M.2 slots (Key M); Storage: M2_1 slot (from AMD Processor); Storage: Supports PCIe 4.0/ 3.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: M2_2 slot (from AMD B550 chipset); Storage: Supports PCIe 3.0x4; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: The supported specification depends on installed processor.; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; USB: AMD B550 Chipset; USB: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); USB: AMD Processor; USB: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; Audio: Realtek ALC892/ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Realtek 8111HN Gigabit LAN controller; Wireless LAN & Bluetooth: Wi-Fi AC; Wireless LAN & Bluetooth: Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.; Wireless LAN & Bluetooth: Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2; Internal connectors: 1x 24-pin ATX main power connector, Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 3x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Serial port connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 2x 4-pin RGB LED connectors; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1xTPM module connector; Internal connectors: 1x Clear CMOS jumper; Back panel ports: VGA; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: Keyboard / Mouse; Back panel ports: LAN; Back panel ports: Flash BIOS Button; Back panel ports: DisplayPort; Back panel ports: HDMI; Back panel ports: USB 2.0; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: Wi-Fi Antenna connectors; Back panel ports: 3x Audio jacks; Dimensions: Micro-ATX Form Factor; Dimensions: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); MOUNTING: 8 mounting holes, Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
