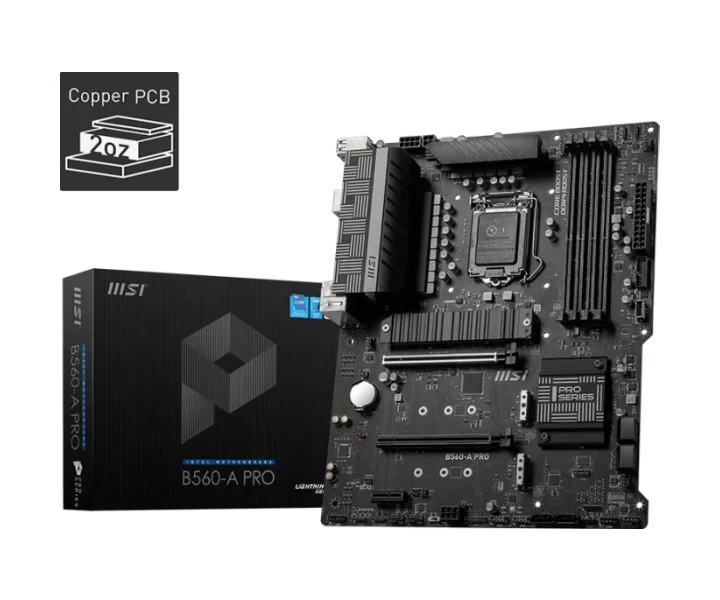

B560-A PRO özellikleri ve fiyatları

B560-A PRO teknik özellikleri

Model kodu

B560-A PRO

İşlemci soketi

LGA1200

Anakart yonga seti

Intel B560

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1200;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz; Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz; 1DPC 2R Max speed up to 4600+ MHz; 2DPC 1R Max speed up to 4266+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU; Supports up to PCIe 3.0 for 10th Gen Intel CPU; PCI_E2 (from B560 chipset) Supports up to PCIe 3.0 x4; 1x PCIe 3.0 x1 slot (from B560 chipset)

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (from B560 chipset); 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU; Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from B560 chipset) Supports up to PCIe 3.0 x4; Supports SATA up to 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; PCI_E2 will be unavailable when installing M.2 SSD in the M2_3 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

Intel B560 Chipset; Intel B560 Chipset 1x USB 3.2 Gen 2x2 20Gbps (Type-C port on the back panel); 1x USB 3.2 Gen 2 10Gbps ports (1 Type-C available through the internal connector); 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors); USB 2.0 Hubs GL850G 4x USB 2.0 Type-A ports on the back panel; 4x USB 2.0 ports are available through the internal USB 2.0 connectors

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

ALC897

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

RealtekALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 1x 6-pin PCIE power connector; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 5x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (Supports RTD3); 1x Tuning controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 1x 6-pin PCIE power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 5x 4-pin system fan connectors

Fan bağlantısı sayısı

7

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

USB 2.0; DisplayPort; LAN port; USB 3.2 Gen 2x2 20Gbps Type-C; Audio connector; HDMI™; USB 3.2 Gen 1 5Gbps Type-A; Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz; 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Diğer anakart özellikleri

1x EZ LED Control switch; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
