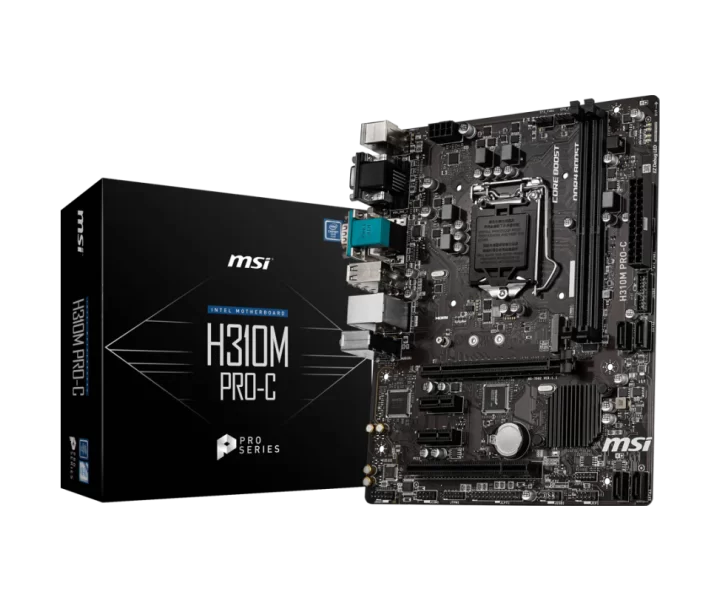

H310M PRO-C özellikleri ve fiyatları

H310M PRO-C teknik özellikleri

Model kodu

H310M PRO-C

İşlemci soketi

LGA1151

Anakart yonga seti

Intel H310 Chipset; This chipset is ME11 firmware based and doesn't feature SDA3.0

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1151; 9 / 8 Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

DDR4 2666/ 2400/ 2133 MHz; Intel Extreme Memory Profile (XMP)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0 x16 slot; 2x PCIe 2.0 x1 slots; 1x PCI slot

PCIe sürümü

PCIe 3.0 / PCIe 2.0

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel H310 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M); Supports up to PCIe 2.0 x2 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

USB bağlantısı

Intel H310 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Realtek 8111H 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8111H 1Gbps LAN controller

Ses yongası

Realtek ALC892 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1x USB 3.2 Gen1 5Gbps connector (support additional 2 USB 3.2 Gen1 5Gbps ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x Serial port connector; 1x Parallel port connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

2

Arka panel bağlantıları

Mouse; VGA; COM port; USB 2.0; LAN; Keyboard; DVI-D; HDMI™; USB 3.2 Gen 1 Type-A; 3 HD audio connectors

Görüntü çıkışları ve kullanım koşulları

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz; 1x DVI-D port, supporting a maximumresolution of 1920x1200 @60Hz; 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

TPM güvenlik modülü bağlantısı

1x TPM module connector

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket; Processor: See supported processors; Chipset: Intel H310 Chipset; Chipset: This chipset is ME11 firmware based and doesn't feature SDA3.0; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports DDR4 2666/ 2400/ 2133 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe 3.0 x16 slot; Expansion Slot: 2x PCIe 2.0 x1 slots; Expansion Slot: 1x PCI slot; Onboard Graphics: 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz; Onboard Graphics: 1x DVI-D port, supporting a maximumresolution of 1920x1200 @60Hz; Onboard Graphics: 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz; Storage: Intel H310 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 1x M.2 slot (Key M); Storage: Supports up to PCIe 2.0 x2 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; USB: Intel H310 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector); Audio: Realtek ALC892 Codec; Audio: 7.1-Channel High Definition Audio, LAN: 1x Realtek 8111H 1Gbps LAN controller; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); Internal connectors: 1x USB 3.2 Gen1 5Gbps connector (support additional 2 USB 3.2 Gen1 5Gbps ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x Front panel connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x Serial port connector; Internal connectors: 1x Parallel port connector; Back panel ports: Mouse; Back panel ports: VGA; Back panel ports: COM port; Back panel ports: USB 2.0; Back panel ports: LAN; Back panel ports: Keyboard; Back panel ports: DVI-D; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 Type-A; Back panel ports: 3 HD audio connectors; I/O Controller: NUVOTON NCT6797 Controller Chip; Form Factor: Micro-ATX Form Factor; Form Factor: 9.6 in. x 7.6 in. (24.4 cm x 19.3 cm); Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
