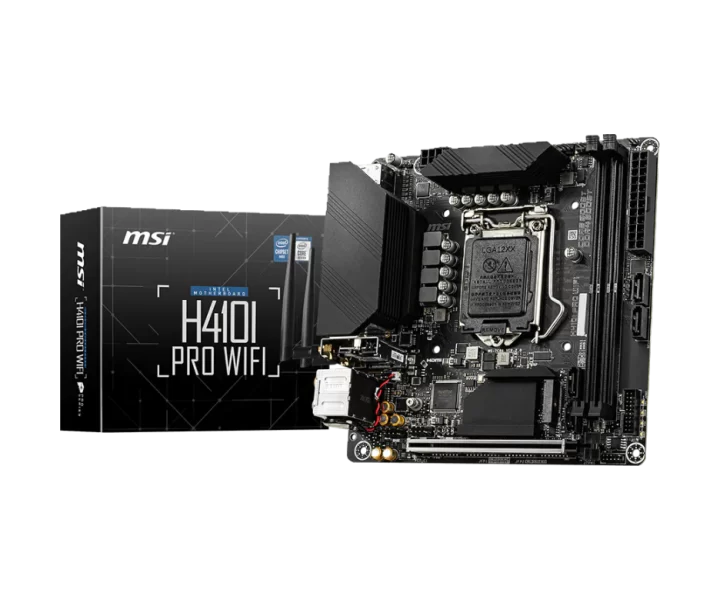

H410I PRO WIFI özellikleri ve fiyatları

H410I PRO WIFI teknik özellikleri

Model kodu

H410I PRO WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Intel H410

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; Intel 10 Gen processors for LGA 1200 socket;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Core i7/ i9 up to DDR4 2933 MHz; Intel Core i5 and below up to DDR4 2666 MHz; Intel Extreme Memory Profile (XMP)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0 x16 slot (From CPU)

PCIe sürümü

PCIe 3.0

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel H410 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M); Supports PCIe 3.0 x4; Supports SATA 6Gb/s; Supports 2280 storage devices

Desteklenen M.2 boyut kodları

2280

M.2 bağlantı anahtarı

M-Key

USB bağlantısı

Intel H410 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Intel 1219V Gigabit LAN Controller

Kablolu ağ denetleyicisi

1x Intel 1219V Gigabit LAN Controller

Ses yongası

Realtek ALC1200 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slot (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 1x System panel connector; 1x 4-pin RGB LED connector; 1x 3-pin RAINBOW LED connector; 1x Chassis Intrusion connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

3

RGB aydınlatma bağlantısı sayısı

2

Arka panel bağlantıları

DisplayPort; LAN; Wireless / Bluetooth; Audio Connectors; USB 2.0; HDMI™; USB 3.2 Gen 1 5Gbps Type-A; Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ port, supports a maximum resolution of 4096x2160 @30Hz; 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz

Wi-Fi

Intel 3168NGW; The Wireless module is pre-installed in the M.2 (Key-E slot; Supports 802.11 a/ b/ g/ n/ ac; Supports Bluetooth 4.2

Bluetooth sürümü

4.2

Boyutlar

6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports Intel 10th Gen processors for LGA 1200 socket; Processor: Please go to www.intel.com for more compatibility information.; Processor: Onboard graphics output are disabled when using F SKU processors.; Processor: See supported processors; Chipset: Intel H410 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Intel Core i7/ i9; Memory: Supports up to DDR4 2933 MHz; Memory: Intel Core i5 and below; Memory: Supports up to DDR4 2666 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe 3.0 x16 slot (From CPU); Onboard Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz; Onboard Graphics: 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz; Storage: Intel H410 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 1x M.2 slot (Key M); Storage: Supports PCIe 3.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2280 storage devices; USB: Intel H410 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector); Audio: Realtek ALC1200 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output, LAN: 1x Intel 1219V Gigabit LAN Controller; Wireless LAN & Bluetooth: Intel 3168NGW; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E slot; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac; Wireless LAN & Bluetooth: Supports Bluetooth 4.2; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 1x M.2 slot (M-Key); Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 1x System panel connector; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 1x 3-pin RAINBOW LED connector; Internal connectors: 1x Chassis Intrusion connector; Back panel ports: DisplayPort; Back panel ports: LAN; Back panel ports: Wireless / Bluetooth; Back panel ports: Audio Connectors; Back panel ports: USB 2.0; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: Optical S/PDIF OUT; Dimensions: Mini-ITX Form Factor; Dimensions: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm); Mounting: 4 mounting holes, Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
