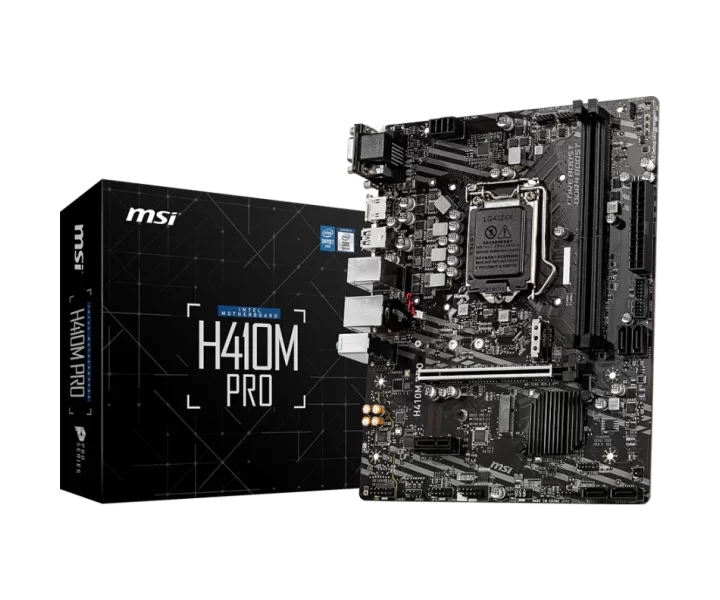

H410M PRO özellikleri ve fiyatları

H410M PRO teknik özellikleri

Model kodu

H410M PRO

İşlemci soketi

LGA1200

Anakart yonga seti

Intel H410

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10 Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Core i7/ i9 up to DDR4 2933 MHz; Intel Core i5 and below up to DDR4 2666 MHz; Intel Extreme Memory Profile (XMP)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0 x16 slot (From CPU); 1x PCIe 3.0 x1 slot (From PCH); 1x M.2 slot with E key for WiFi module only

PCIe sürümü

PCIe 3.0

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel H410 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M); M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

USB bağlantısı

Intel H410 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Intel I219V Gigabit LAN controller

Kablolu ağ denetleyicisi

1x Intel I219V Gigabit LAN controller

Ses yongası

Realtek ALC892/ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x Front panel connectors; 1x Serial port connector; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x 4-pin RGB LED connector; 1x 3-pin RAINBOW LED connector; 4x EZ Debug LED

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

2

RGB aydınlatma bağlantısı sayısı

2

Arka panel bağlantıları

VGA; Keyboard / Mouse; LAN; DVI-D; HDMI™; USB 3.2 Gen 1 5Gbps Type-A; USB 2.0; Audio Connectors

Görüntü çıkışları ve kullanım koşulları

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz; 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket; Processor: Please go to www.intel.com for more compatibility information.; Processor: Onboard graphics output are disabled when using F SKU processors.; Processor: See supported processors; Chipset: Intel H410 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Intel Core i7/ i9; Memory: Supports up to DDR4 2933 MHz; Memory: Intel Core i5 and below; Memory: Supports up to DDR4 2666 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe 3.0 x16 slot (From CPU); Expansion Slot: 1x PCIe 3.0 x1 slot (From PCH); Expansion Slot: 1x M.2 slot with E key for WiFi module only; Onboard Graphics: 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; Onboard Graphics: 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz; Onboard Graphics: 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz; Storage: Intel H410 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 1x M.2 slot (Key M); Storage: M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; USB: Intel H410 Chipset, USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector); Audio: Realtek ALC892/ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Intel I219V Gigabit LAN controller; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); Internal connectors: 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x Front panel connectors; Internal connectors: 1x Serial port connector; Internal connectors: 1x TPM module connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 1x 3-pin RAINBOW LED connector; Internal connectors: 4x EZ Debug LED; Back panel ports: VGA; Back panel ports: Keyboard / Mouse; Back panel ports: LAN; Back panel ports: DVI-D; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: USB 2.0; Back panel ports: USB 2.0, Back panel ports: Audio Connectors; Dimensions: Mirco-ATX Form Factor; Dimensions: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm); Mounting: 6 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
