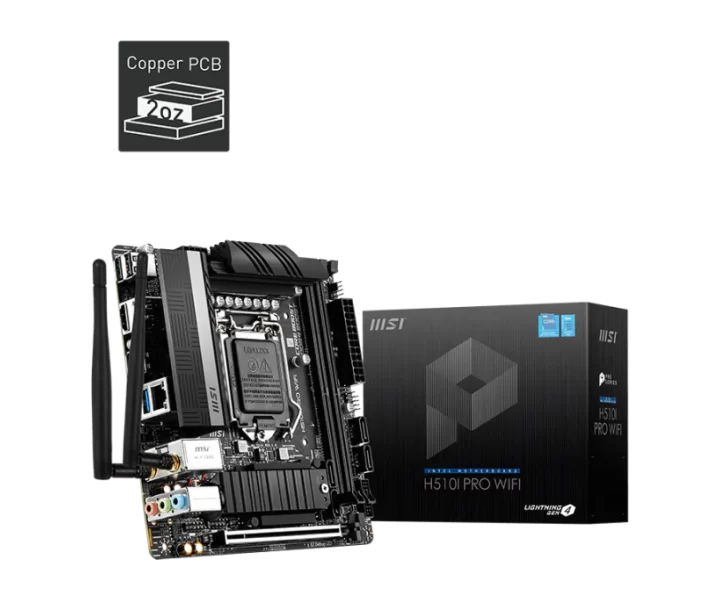

H510I PRO WIFI özellikleri ve fiyatları

H510I PRO WIFI teknik özellikleri

Model kodu

H510I PRO WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Intel H510

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10 Gen Intel Core Processors, 11 Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1200;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max frequency: 1DPC 1R Max speed up to 3200+ MHz; 1DPC 2R Max speed up to 3200+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot; Support up to PCIe 4.0 for 11th Gen Intel CPU; Support up to PCIe 3.0 for 10th Gen Intel CPU

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel H510 Chipset; 4x SATA 6Gb/s ports (from H510 chipset); 1x M.2 slot (from H510 chipset); Support up to PCIe 3.0; Supports SATA 6Gb/s; Supports 2280 storage devices

Desteklenen M.2 boyut kodları

2280

USB bağlantısı

Intel H510 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the; back panel, 2 ports available through the internal USB; connectors); 4x USB 2.0 Type-A ports on the back panel; GL850G Hub; 2x USB 2.0 ports available through the internal USB; connector

Kablolu ağ bağlantısı

1x Realtek 8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connectors

Fan bağlantısı sayısı

3

Arka panel bağlantıları

USB 2.0; DisplayPort; LAN port; WIFI / Bluetooth; Audio connector; HDMI™; USB 3.2 Gen 1 5Gbps Type-A

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz; 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6 AX201; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; WiFi 6 pre certified; Supports Bluetooth 5.1, FIPS, FISMA

Wi-Fi standardı

Wi-Fi 6

Bluetooth sürümü

5.1

Boyutlar

6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core Processors, 11th Gen Intel; Processor: Core Processors, Pentium Gold and Celeron Processors; Processor: Processor socket LGA1200; Processor: Please go to intel.com for compatibility information.; Processor: See supported processors; Chipset: Intel H510 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Memory: Max frequency:; Memory: 1DPC 1R Max speed up to 3200+ MHz; Memory: 1DPC 2R Max speed up to 3200+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot; Expansion Slot: Support up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slot: Support up to PCIe 3.0 for 10th Gen Intel CPU; Onboard Graphics: 1x HDMI 2.0b with HDR port, supports a maximum; Onboard Graphics: resolution of 4K 60Hz; Onboard Graphics: 1x DisplayPort 1.4 port, supports a maximum resolution of; Onboard Graphics: 5120x3200 60Hz; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Storage: Intel H510 Chipset; Storage: 4x SATA 6Gb/s ports (from H510 chipset), Storage: 1x M.2 slot (from H510 chipset); Storage: Support up to PCIe 3.0; Storage: Supports SATA 6Gb/s; Storage: Supports 2280 storage devices; USB: Intel H510 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the; USB: back panel, 2 ports available through the internal USB; USB: connectors); USB: 4x USB 2.0 Type-A ports on the back panel; USB: GL850G Hub; USB: 2x USB 2.0 ports available through the internal USB; USB: connector; Audio: Realtek ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Realtek 8125B 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel Wi-Fi 6 AX201; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: WiFi 6 pre certified; Wireless LAN & Bluetooth: Supports Bluetooth 5.1, FIPS, FISMA; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 1x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector, Internal connectors: 1x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x TPM module connector; Back panel ports: USB 2.0; Back panel ports: DisplayPort; Back panel ports: USB 2.0; Back panel ports: LAN port; Back panel ports: WIFI / Bluetooth; Back panel ports: Audio connector; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Dimensions: Mini-ITX Form Factor; Dimensions: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm); Mounting: 4 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
