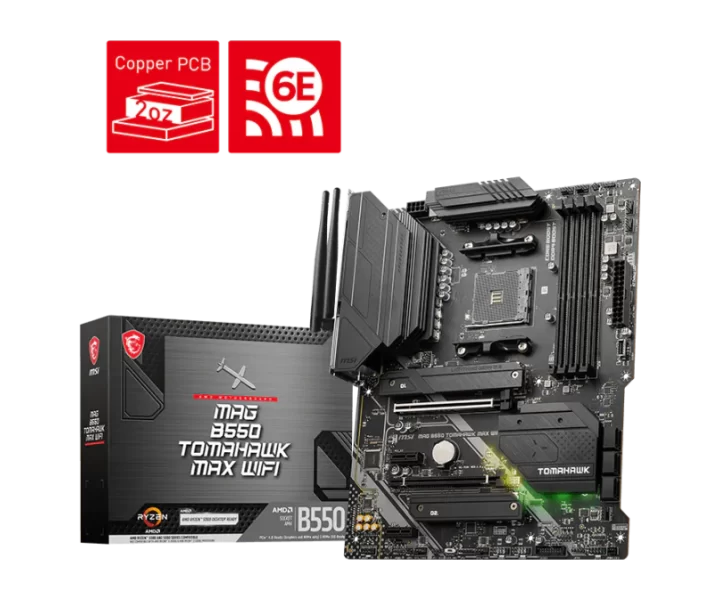

MAG B550 TOMAHAWK MAX WIFI özellikleri ve fiyatları

MAG B550 TOMAHAWK MAX WIFI teknik özellikleri

Model kodu

MAG B550 TOMAHAWK MAX WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4 x DDR4 memory slots, up to 128GB DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ

Bellek hızı ve uyumluluk koşulları

DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ; 1DPC 2R max speed 3866 MHZ; 2DPC 1R max speed 4000 MHZ; 2DPC 2R max speed 3600 MHZ

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed; 2x PCIe 3.0 x1 slots; The supported specification depends on installed processor.; When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.

PCIe şerit paylaşımı ve işlemci koşulları

When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

AMD B550 Chipset; 6x SATA 6Gb/s ports; 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices; The supported specification depends on installed processor.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel); 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC897

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS jumper

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Keyboard / Mouse; DisplayPort 1.4; 2.5G LAN Port; USB 3.2 Gen 2 10Gbps Type-A; Wi-Fi / Bluetooth Antenna; Audio Connectors; Flash BIOS Button; USB 2.0 Port; HDMI 2.1 Port; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2 10Gbps Type-C; Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Support HDCP 1.4 & 2.3; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; Maximum shared memory of 16 GB; Available for the processor with integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11; Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
