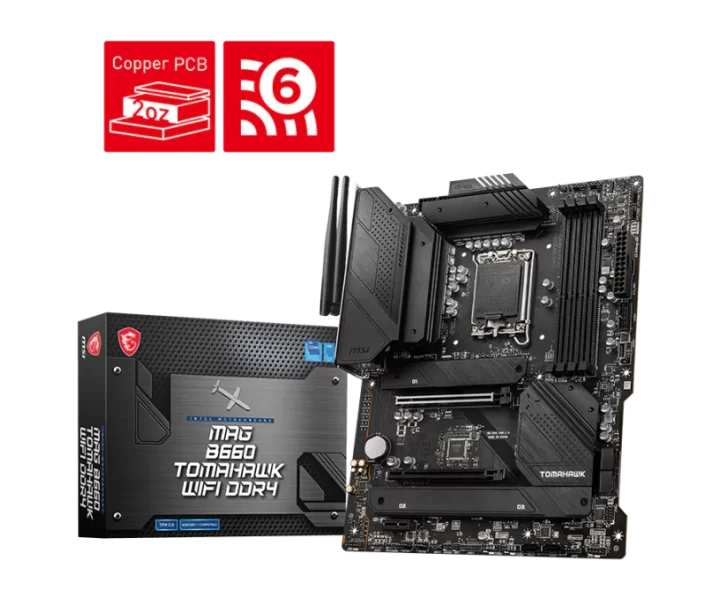

MAG B660 TOMAHAWK WIFI DDR4 özellikleri ve fiyatları

MAG B660 TOMAHAWK WIFI DDR4 teknik özellikleri

Model kodu

MAG B660 TOMAHAWK WIFI DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B660

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4000+ MHz; 2DPC 1R Max speed up to 4000+ MHz; 2DPC 2R Max speed up to 3600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCIe x16 slots; PCI_E1 (From CPU); Support up to PCIe 4.0; PCI_E2 (From B660 chipset); Support up to PCIe 3.0 x4; 1x PCIe 3.0 x1 slot (From B660 chipset)

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports; SATA5~8 (From B660 chipset); SATAA~B (From ASM1061); 3x M.2 slots (Key M); M2_1 slot (From CPU); Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 & M2_3 slots (From B660 chipset); M2_2 supports up to PCIe 4.0 x4; M2_3 supports up to PCIe 4.0 x2; Supports SATA up to 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory; Supports Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; SATAA & SATAB do not support RAID function.

USB bağlantısı

Intel B660 Chipset; 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel); 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector); 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector; 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Kablolu ağ bağlantısı

1x Realtek RTL8125B-CG 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B-CG 2.5Gbps LAN controller

Ses yongası

Realtek ALC1220P Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220P Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 5x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (supports RTD3); 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 5x 4-pin system fan connectors

Fan bağlantısı sayısı

7

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

USB 2.0 Port; DisplayPort 1.4; 2.5G LAN Por; Wi-Fi / Bluetooth Antenna; HD Audio Connectors; HDMI 2.1 Port; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz /; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Diğer anakart özellikleri

2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2

Wi-Fi standardı

Wi-Fi 6

Bluetooth sürümü

5.2

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to msi.com to get the newest support status as new processors are released.; Processor: See supported processors; Chipset: Intel B660 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR); Memory: Max overclocking frequency:; Memory: 1DPC 1R Max speed up to 5333+ MHz; Memory: 1DPC 2R Max speed up to 4000+ MHz; Memory: 2DPC 1R Max speed up to 4000+ MHz; Memory: 2DPC 2R Max speed up to 3600+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer to www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 2x PCIe x16 slots; Expansion Slot: PCI_E1 (From CPU); Expansion Slot: Support up to PCIe 4.0; Expansion Slot: PCI_E2 (From B660 chipset); Expansion Slot: Support up to PCIe 3.0 x4; Expansion Slot: 1x PCIe 3.0 x1 slot (From B660 chipset); Multi-GPU: Supports AMD CrossFire Technology; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum; Onboard Graphics: resolution of 4K 60Hz /; Onboard Graphics: 1x DisplayPort 1.4 port with HBR3, supports a maximum; Onboard Graphics: resolution of 4K 60Hz /; Onboard Graphics: Available only on processors featuring integrated graphics., Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Storage: 6x SATA 6Gb/s ports; Storage: SATA5~8 (From B660 chipset); Storage: SATAA~B (From ASM1061); Storage: 3x M.2 slots (Key M); Storage: M2_1 slot (From CPU); Storage: Supports up to PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 & M2_3 slots (From B660 chipset); Storage: M2_2 supports up to PCIe 4.0 x4; Storage: M2_3 supports up to PCIe 4.0 x2; Storage: Supports SATA up to 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; RAID: SATAA & SATAB do not support RAID function.; USB: Intel B660 Chipset; USB: 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel); USB: 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector); USB: 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector; USB: 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors); Audio: Realtek ALC1220P Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek RTL8125B-CG 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel Wi-Fi 6, Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 3x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2; Internal connectors: USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0; Internal connectors: ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 5x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x TPM module connector; Internal connectors: 1x TBT connector (supports RTD3); Internal connectors: 1x Tuning Controller connector; LED Feature: 2x 4-pin RGB LED connectors; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 4x EZ Debug LED; Back panel ports: USB 2.0 Port; Back panel ports: DisplayPort 1.4; Back panel ports: 2.5G LAN Por, Back panel ports: Wi-Fi / Bluetooth Antenna; Back panel ports: HD Audio Connectors; Back panel ports: HDMI 2.1 Port; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A; Back panel ports: USB 3.2 Gen 2x2 20Gbps Type-C; Back panel ports: Optical S/PDIF OUT; Dimensions: ATX Form Factor; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Box content: ​; Box content: ​; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: ​; Box content: These pictures are for reference only and may vary without notice.; Box content: ​
