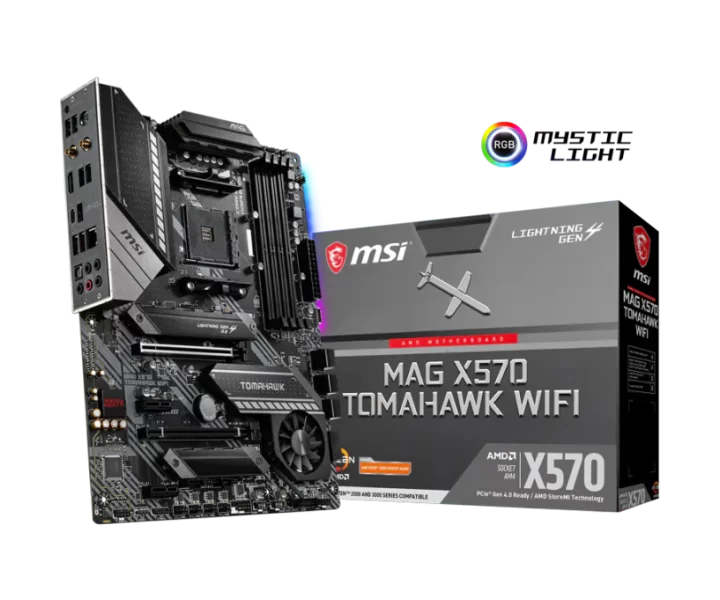

MAG X570 TOMAHAWK WIFI özellikleri ve fiyatları

MAG X570 TOMAHAWK WIFI teknik özellikleri

Model kodu

MAG X570 TOMAHAWK WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB 3rd Gen AMD Ryzen Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE; 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0x16 mode; Ryzen 4000 G-Series support PCIe 3.0 x16 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode; 2x PCIe 3.0 x1 slots; The speeds may vary for different devices

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0x16 mode; Ryzen 4000 G-Series support PCIe 3.0 x16 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (from AMD X570 Chipset); 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD X570 Chipset) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; The speeds may vary for different devices

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector); 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors; 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen / Ryzen 4000 G-Series) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel; 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8125B 2.5Gbps LAN Controller

Kablolu ağ denetleyicisi

1x Realtek 8125B 2.5Gbps LAN Controller

Ses yongası

Realtek ALC1200 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 1x USB 3.2 Gen 2 10Gbps Type-C Port; 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LEDs

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 4x 4-pin system fan connectors

Fan bağlantısı sayısı

5

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Keyboard / Mouse; Wireless / Bluetooth; USB 3.2 Gen 1 5Gbps Type A; USB 3.2 Gen 2 10Gbps Type A; 2.5G LAN port; Audio Connectors; Flash BIOS button; USB 2.0; HDMI port; USB 3.2 Gen 2 10Gbps Type C; Optical S/PDIF out

Görüntü çıkışları ve kullanım koşulları

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz; Support for HDMI 1.4 version, HDCP 1.4 & 2.3; Only support when using Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors; Maximum shared memory of 2048 MB

BIOS özellikleri

Flash BIOS button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6 AX200; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; Supports Bluetooth 5.2; The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

Wi-Fi standardı

Wi-Fi 6

Bluetooth sürümü

5.2

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
