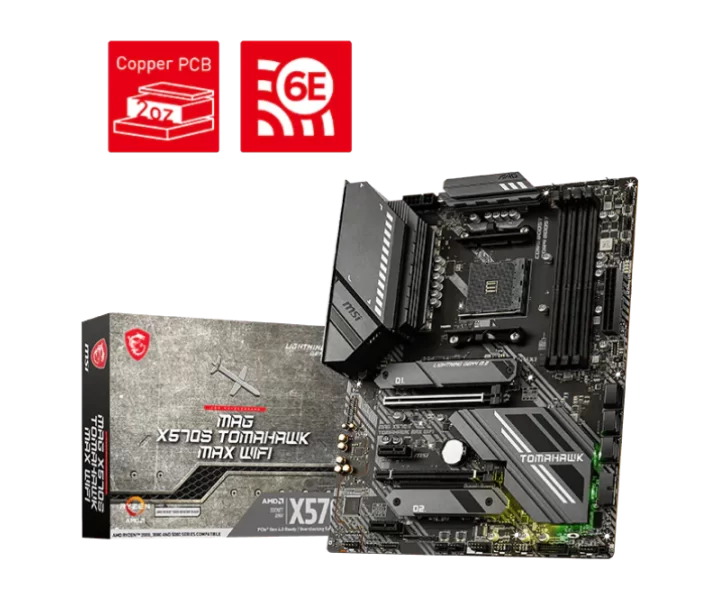

MAG X570S TOMAHAWK MAX WIFI özellikleri ve fiyatları

MAG X570S TOMAHAWK MAX WIFI teknik özellikleri

Model kodu

MAG X570S TOMAHAWK MAX WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Socket AM4;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz; 1DPC 2R Max speed up to 4000 MHz; 2DPC 1R Max speed up to 4266 MHz; 2DPC 2R Max speed up to 3600 MHz; For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz; 1DPC 2R Max speed up to 3866 MHz; 2DPC 1R Max speed up to 4000 MHz; 2DPC 2R Max speed up to 3600 MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

Supports PCIe 4.0 / PCIe 3.0 specification; PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 1x PCIe x16 slot (From processor); PCI_E1 supports PCIe 4.0/ 3.0 x16; 1x PCIe x16 slot (From X570 chipset); PCI_E3 supports PCIe 4.0/ 3.0 x4; 2x PCIe 3.0 x1 slots (From X570 chipset)

PCIe şerit paylaşımı ve işlemci koşulları

Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (from AMD X570 Chipset); 2x M.2 slots (Key M); Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors; Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor; Supports up to SATA 6Gb/s; M2_1 slot (from Processor); Support 2280/22110 storage devices; M2_2 slot (from AMD X570 Chipset); Supports 2242/ 2260/ 2280 storage devices

Desteklenen M.2 boyut kodları

2280 / 22110 / 2242 / 2260

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector); 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors; 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C); 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8125B 2.5Gbps LAN Controller

Kablolu ağ denetleyicisi

1x Realtek 8125B 2.5Gbps LAN Controller

Ses yongası

Realtek ALC4080 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Chassis Intrusion connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 4x 4-pin system fan connectors

Fan bağlantısı sayısı

6

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

PS/2 Mouse / Keyboard; Wi-Fi Antenna; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A); 2.5G LAN Port; HD Audio Connectors; Flash BIOS Button; USB 2.0 Port; HDMI™ 2.1 Port; USB 3.2 Gen 2 10Gbps (Type-C); Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.1 port, supports a maximum resolution of 4K 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

Diğer anakart özellikleri

2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED; 1X EZ LED Control switch

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6E AX210; The Wireless module is pre-installed in the M.2 (Key-E); slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz; (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Processor: Supports Socket AM4; Processor: Please go to msi.com to get the newest support status as new processors are released.; Processor: See supported processors; Chipset: AMD X570 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Memory: Max overclocking frequency by A-XMP OC mode:; Memory: For Ryzen 5000 G-Series & 4000 G-Series processors; Memory: 1DPC 1R Max speed up to 5100 MHz; Memory: 1DPC 2R Max speed up to 4000 MHz; Memory: 2DPC 1R Max speed up to 4266 MHz; Memory: 2DPC 2R Max speed up to 3600 MHz; Memory: For Ryzen 5000 Series & 3000 Series processors; Memory: 1DPC 1R Max speed up to 5100 MHz; Memory: 1DPC 2R Max speed up to 3866 MHz; Memory: 2DPC 1R Max speed up to 4000 MHz; Memory: 2DPC 2R Max speed up to 3600 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: Supports PCIe 4.0 / PCIe 3.0 specification; Expansion Slot: PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; Expansion Slot: 1x PCIe x16 slot (From processor); Expansion Slot: PCI_E1 supports PCIe 4.0/ 3.0 x16; Expansion Slot: 1x PCIe x16 slot (From X570 chipset), Expansion Slot: PCI_E3 supports PCIe 4.0/ 3.0 x4; Expansion Slot: 2x PCIe 3.0 x1 slots (From X570 chipset); Multi-GPU: Supports AMD CrossFire Technology; Onboard Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Storage: 6x SATA 6Gb/s ports (from AMD X570 Chipset); Storage: 2x M.2 slots (Key M); Storage: Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors; Storage: Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor; Storage: Supports up to SATA 6Gb/s; Storage: M2_1 slot (from Processor); Storage: Support 2280/22110 storage devices; Storage: M2_2 slot (from AMD X570 Chipset); Storage: Supports 2242/ 2260/ 2280 storage devices; RAID: Supports RAID 0, RAID 1 and RAID 10; USB: AMD X570 Chipset; USB: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector); USB: 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors; USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); USB: AMD Processor; USB: 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C); USB: 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; Audio: Realtek ALC4080 Codec, Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek 8125B 2.5Gbps LAN Controller; Wireless LAN & Bluetooth: Intel Wi-Fi 6E AX210; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E); Wireless LAN & Bluetooth: slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz; Wireless LAN & Bluetooth: (160MHz) up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2, FIPS, FISMA; Wireless LAN & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Wireless LAN & Bluetooth: Bluetooth 5.2 will be ready in WIN10 21H1.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 1x 4-pin ATX 12V power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump connector; Internal connectors: 4x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector, Internal connectors: 1x TPM module connector; Internal connectors: 1x Serial port connector; Internal connectors: 1x Chassis Intrusion connector; LED Feature: 2x 4-pin RGB LED connectors; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 4x EZ Debug LED; LED Feature: 1X EZ LED Control switch; Back panel ports: PS/2 Mouse / Keyboard; Back panel ports: Wi-Fi Antenna; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: USB 3.2 Gen 2 10Gbps (Type-A); Back panel ports: 2.5G LAN Port; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0 Port; Back panel ports: HDMI 2.1 Port; Back panel ports: USB 3.2 Gen 2 10Gbps (Type-C); Back panel ports: USB 3.2 Gen 2 10Gbps (Type-A); Back panel ports: Optical S/PDIF OUT; Dimensions: ATX Form Factor; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
