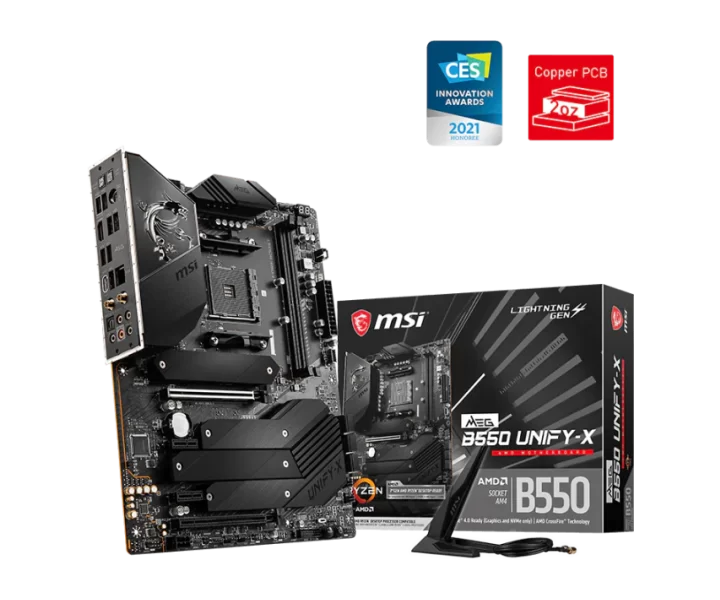

MEG B550 UNIFY-X özellikleri ve fiyatları

MEG B550 UNIFY-X teknik özellikleri

Model kodu

MEG B550 UNIFY-X

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

2x DDR4 memory slots, up to 64GB DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; AMD Ryzen 4000 G-Series processors DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 5000/ 5100/ 5300+ (Max. 5800) MHz by A-XMP OC MODE; 3rd Gen AMD Ryzen processors DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE

Bellek hızı ve uyumluluk koşulları

AMD Ryzen 4000 G-Series processors 1DPC 1R max speed 5300 MHz (QVL), Max. 5800 MHz; 1DPC 2R max speed 4266 MHz (QVL), Max. 4600 MHz; 3rd Gen AMD Ryzen processors 1DPC 1R max speed 5100 MHz (QVL), Max. 5300 MHz; 1DPC 2R max speed 4260 MHz (QVL)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

AMD Processor; 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); AMD B550 Chipset; 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed; 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3); The supported specification depends on installed processor.; The PCI_E4 slot will be unavailable, when installing M.2 SSD into M2_4.; The both PCIe x1 slots will be unavailable after you install the M.2 SSD into M2_2 slot in Chipset support mode (default mode).

PCIe şerit paylaşımı ve işlemci koşulları

The PCI_E4 slot will be unavailable, when installing M.2 SSD into M2_4.; The both PCIe x1 slots will be unavailable after you install the M.2 SSD into M2_2 slot in Chipset support mode (default mode).

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports; 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2280/ 22110 storage devices; M2_2 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2; CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4; Supports 2280 storage devices; M2_3 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2; CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2280/ 22110 storage devices; M2_4 slot Supports PCIe 3.0 x4; Supports 2280 storage devices; The SATA5 port will be unavailable when installing M.2 SATA SSD into M2_3.; The SATA5 and SATA6 ports will be unavailable when installing M.2 PCIe SSD into M2_3; M.2 specifications may vary depending on the CPU installed.

Desteklenen M.2 boyut kodları

2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC1220P

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220P Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connector; 1x 6-pin PCIE power connector; 6x SATA 6Gb/s connectors; 4x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2; USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector; 1x TPM module connector; 1x Clear CMOS jumper; 1x Power button; 1x Reset button

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connector; 1x 6-pin PCIE power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

3

Arka panel bağlantıları

Clear CMOS Button; Keyboard / Mouse; USB 2.0 Ports; 2.5G LAN; Wi-Fi /Bluetooth; HD Audio Connectors; Flash BIOS Button; HDMI™ 2.1 Port; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A+C); Optical S/PDIF-Out

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz; Support HDCP 1.4 & 2.3; Maximum shared memory of 16GB; Available for the processor with integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6 AX200; The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.1

Wi-Fi standardı

Wi-Fi 6

Bluetooth sürümü

5.1
