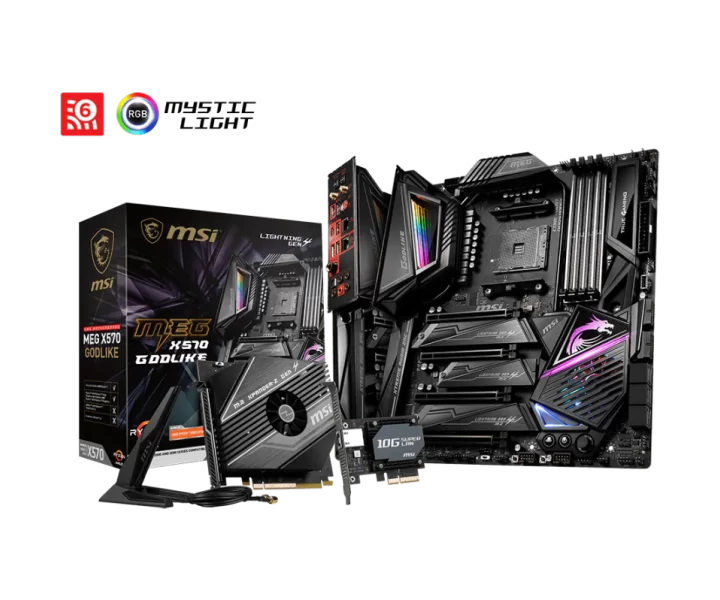

MEG X570 GODLIKE özellikleri ve fiyatları

MEG X570 GODLIKE teknik özellikleri

Model kodu

MEG X570 GODLIKE

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB 3rd Gen AMD Ryzen Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE; 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe 4.0/3.0 x16 slot (PCI_E1~3); 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; 2nd Gen AMD Ryzen support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0/x0 mode; 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode); The speeds may vary for different devices

PCIe şerit paylaşımı ve işlemci koşulları

3x PCIe 4.0/3.0 x16 slot (PCI_E1~3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; 2nd Gen AMD Ryzen support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0/x0 mode

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

AMD X570 Chipset; 4x SATA 6Gb/s ports (SATA1-SATA4); 3x M.2 slots (Key M); M2_1 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices; M2_3 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 storage devices; ASMedia ASM1061; 2x SATA 6Gb/s ports (SATA5, SATA6); The speeds may vary for different devices

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD X570 Chipset; Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors); 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors; 4x USB 2.0 (High-speed USB) ports through the internal USB connectors; AMD Processor; 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen/ Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel; 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Killer E2600 Gigabit LAN Controller; 1x Killer E3000 2.5 Gbps LAN Controller

Kablolu ağ denetleyicisi

1x Killer E2600 Gigabit LAN Controller; 1x Killer E3000 2.5 Gbps LAN Controller

Ses yongası

2x Realtek ALC1220 Codec; ESS E9018 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

2x Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output; ESS E9018 Codec; Supports 6.3mm Gold-plated stereo headphone out

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen2 Type-C port; 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin Water Pump connector; 7x 4-pin system fan connectors; 1x 3-pin Water Flow connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 2-pin Thermal Sensors connectors; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin Water Pump connector; 7x 4-pin system fan connectors

Fan bağlantısı sayısı

9

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; Wi-Fi /Bluetooth Antenna Connectors; PS/2 GAMING Device Port; Killer 2.5G + Killer Gigabit LAN; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen1 Ports; USB 3.2 Gen2 Ports Type-A+C; USB 3.2 Gen2 Ports; 6.3mm headphone; Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Boyutlar

12 in. x 10.7 in. (30.5 cm x 27.2 cm)

Wi-Fi

Killer Wi-Fi 6 AX1650 Chipset; The Wireless module is pre-install in the M2_4 (Key-E) slot; Supports Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed; Supports Bluetooth 5.1

Bluetooth sürümü

5.1

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket; Processor: See supported processors; Chipset: AMD X570 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE; Memory: 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3); Expansion Slots: 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Expansion Slots: 2nd Gen AMD Ryzen support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Expansion Slots: Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode, Expansion Slots: Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0/x0 mode; Expansion Slots: 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode); Expansion Slots: The speeds may vary for different devices; Multi-GPU: Supports 2-Way NVIDIA SLI Technology; Multi-GPU: Supports 4-Way AMD CrossFire Technology; Storage: AMD X570 Chipset; Storage: 4x SATA 6Gb/s ports (SATA1-SATA4); Storage: 3x M.2 slots (Key M); Storage: M2_1 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices; Storage: M2_3 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 storage devices; Storage: ASMedia ASM1061; Storage: 2x SATA 6Gb/s ports (SATA5, SATA6); Storage: The speeds may vary for different devices; RAID: AMD X570 Chipset; RAID: Supports RAID 0, RAID 1 and RAID 10; USB: AMD X570 Chipset, USB: 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors); USB: 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors; USB: 4x USB 2.0 (High-speed USB) ports through the internal USB connectors; USB: AMD Processor; USB: 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen/ Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel; USB: 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel; Audio: 2x Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; Audio: ESS E9018 Codec; Audio: Supports 6.3mm Gold-plated stereo headphone out; LAN: 1x Killer E2600 Gigabit LAN Controller; LAN: 1x Killer E3000 2.5 Gbps LAN Controller; WiFi & Bluetooth: Killer Wi-Fi 6 AX1650 Chipset; WiFi & Bluetooth: The Wireless module is pre-install in the M2_4 (Key-E) slot; WiFi & Bluetooth: Supports Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed; WiFi & Bluetooth: Supports Bluetooth 5.1; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 3x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen2 Type-C port; Internal connectors: 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports), Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin Water Pump connector; Internal connectors: 7x 4-pin system fan connectors; Internal connectors: 1x 3-pin Water Flow connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 2x 2-pin Thermal Sensors connectors; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1x 3-pin CORSAIR LED connector; Back panel ports: Clear CMOS Button; Back panel ports: Wi-Fi /Bluetooth Antenna Connectors; Back panel ports: PS/2 GAMING Device Port; Back panel ports: Killer 2.5G + Killer Gigabit LAN; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 3.2 Gen1 Ports; Back panel ports: USB 3.2 Gen2 Ports Type-A+C; Back panel ports: USB 3.2 Gen2 Ports; Back panel ports: 6.3mm headphone; Back panel ports: Optical S/PDIF-Out; Dimensions: 12 in. x 10.7 in. (30.5 cm x 27.2 cm); Dimensions: E-ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
