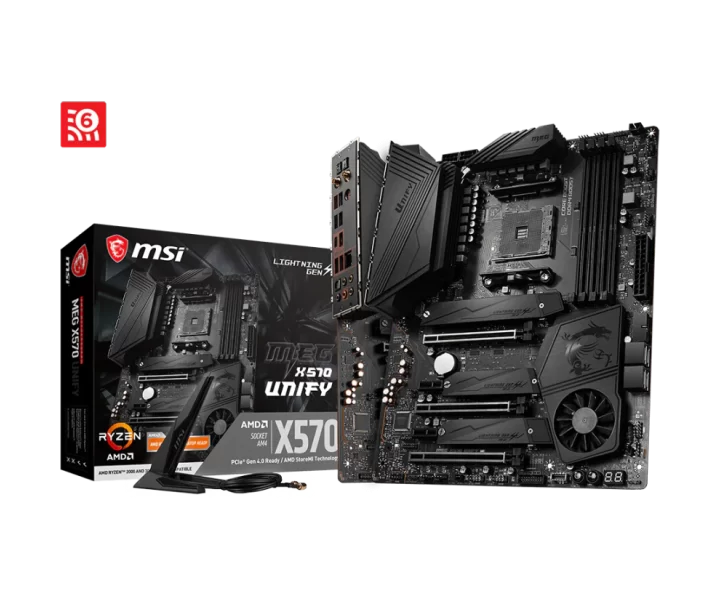

MEG X570 UNIFY özellikleri ve fiyatları

MEG X570 UNIFY teknik özellikleri

Model kodu

MEG X570 UNIFY

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB 3rd Gen AMD Ryzen Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE; 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3); 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes; 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes; Ryzen 4000 G-Series support PCIe 3.0 x16/x0, x8/x8 modes; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode); 2x PCIe 4.0/ 3.0 x1 slots; PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen processors.; The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.; The speeds may vary for different devices

PCIe şerit paylaşımı ve işlemci koşulları

2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes; 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes; Ryzen 4000 G-Series support PCIe 3.0 x16/x0, x8/x8 modes; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen processors.; The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

AMD X570 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (M2_2/ M2_3, Key M); Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s; Support 2242/ 2260 /2280 storage devices; AMD Processor; 1x M.2 slot (M2_1, Key M); Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); Supports 2242/ 2260 /2280/ 22110 storage devices; The speeds may vary for different devices

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector); 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors; 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen/ Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel; 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek RTL8125 2.5 Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125 2.5 Gbps LAN controller

Ses yongası

Realtek ALC1220 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 4x SATA 6Gb/s connectors; 2x USB 2.0 connectors (support additional 4 USB 2.0 ports); 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports); 1x USB 3.2 Gen 2 Type-C Port; 1x 4-pin CPU fan connector; 5x 4-pin system fan connectors; 1x 4-pin water-pump connector; 1x Front panel audio connector; 2x System panel connectors; 1x TPM module connector; 1x Clear CMOS jumper; 1x Chassis Intrusion connector; 1x Power button; 1x Reset button; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR connector; 1x 2-pin LED power input; 1x Debug Code LED; 4x EZ Debug LEDs

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 5x 4-pin system fan connectors; 1x 4-pin water-pump connector

Fan bağlantısı sayısı

7

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; Wi-Fi /Bluetooth Antenna Connectors; PS/2 GAMING Device Port; Realtek 2.5G LAN; HD Audio Connectors; Flash BIOS Button; USB 2.0 Ports; USB 3.2 Gen1 Ports; USB 3.2 Gen2 Ports Type A+C; USB 3.2 Gen2 Ports

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Wi-Fi

Intel WiFi 6/ 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2; The wireless module varies according to the production batch.

Bluetooth sürümü

5.2

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket; Processor: See supported processors; Chipset: AMD X570 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE; Memory: 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3); Expansion Slots: 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes; Expansion Slots: 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes; Expansion Slots: Ryzen 4000 G-Series support PCIe 3.0 x16/x0, x8/x8 modes, Expansion Slots: Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; Expansion Slots: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode); Expansion Slots: 2x PCIe 4.0/ 3.0 x1 slots; Expansion Slots: PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen processors.; Expansion Slots: The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.; Expansion Slots: The speeds may vary for different devices; Multi-GPU: Supports 2-Way NVIDIA SLI Technology; Multi-GPU: Supports 3-Way AMD CrossFire Technology; Storage: AMD X570 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 2x M.2 slots (M2_2/ M2_3, Key M); Storage: Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s; Storage: Support 2242/ 2260 /2280 storage devices; Storage: AMD Processor; Storage: 1x M.2 slot (M2_1, Key M); Storage: Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); Storage: Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); Storage: Supports 2242/ 2260 /2280/ 22110 storage devices; Storage: The speeds may vary for different devices; RAID: Supports RAID 0, RAID 1 and RAID 10; USB: AMD X570 Chipset; USB: 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector); USB: 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors, USB: 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); USB: AMD Processor; USB: 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen/ Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel; USB: 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel; Audio: Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; LAN: 1x Realtek RTL8125 2.5 Gbps LAN controller; WiFi & Bluetooth: Intel WiFi 6/ 6E; WiFi & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; WiFi & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; WiFi & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; WiFi & Bluetooth: Supports Bluetooth 5.2; WiFi & Bluetooth: The wireless module varies according to the production batch.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x USB 2.0 connectors (support additional 4 USB 2.0 ports); Internal connectors: 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports); Internal connectors: 1x USB 3.2 Gen 2 Type-C Port; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 5x 4-pin system fan connectors, Internal connectors: 1x 4-pin water-pump connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Power button; Internal connectors: 1x Reset button; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1x 3-pin CORSAIR connector; Internal connectors: 1x 2-pin LED power input; Internal connectors: 1x Debug Code LED; Internal connectors: 4x EZ Debug LEDs; Back panel ports: Clear CMOS Button; Back panel ports: Wi-Fi /Bluetooth Antenna Connectors; Back panel ports: PS/2 GAMING Device Port; Back panel ports: Realtek 2.5G LAN; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0 Ports; Back panel ports: USB 3.2 Gen1 Ports; Back panel ports: USB 3.2 Gen2 Ports Type A+C; Back panel ports: USB 3.2 Gen2 Ports; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
