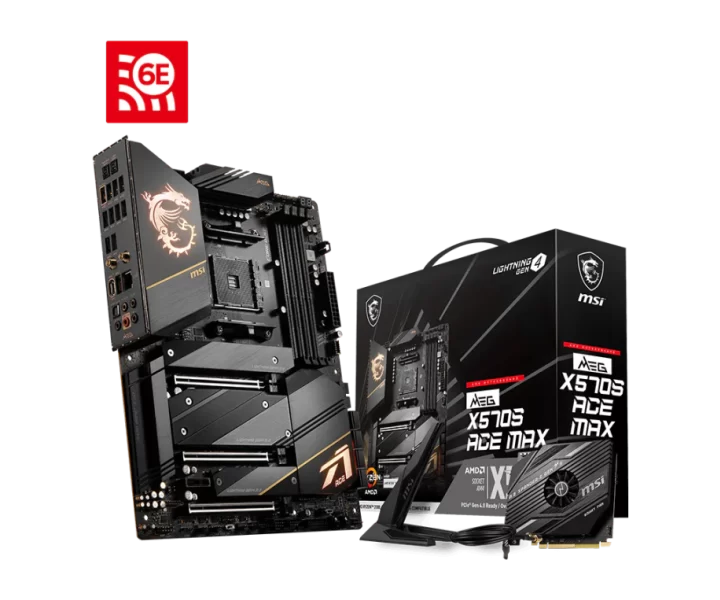

MEG X570S ACE MAX özellikleri ve fiyatları

MEG X570S ACE MAX teknik özellikleri

Model kodu

MEG X570S ACE MAX

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Socket AM4; Please refer www.msi.com for more information on compatible memory.;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (overclocking up to 5500+ MHz)

Bellek hızı ve uyumluluk koşulları

Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (overclocking up to 5500+ MHz); 1DPC 2R Max speed up to 4266 MHz; 2DPC 1R Max speed up to 4400 MHz; 2DPC 2R Max speed up to 3600 MHz; For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz; 1DPC 2R Max speed up to 4000 MHz; 2DPC 1R Max speed up to 4000 MHz; 2DPC 2R Max speed up to 3600 MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 2x PCIe x16 slots (From processor) PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors; PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen 2000 G-Series and 3000 G-Series desktop processors; 1x PCIe x16 slot (From X570 chipset) PCI_E4 supports x8; 1x PCIe x1 slot (From X570 chipset); PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.; The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot.

PCIe şerit paylaşımı ve işlemci koşulları

Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 2x PCIe x16 slots (From processor) PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors; PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen 2000 G-Series and 3000 G-Series desktop processors; PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.; The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot.

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

8

M.2 uyumluluğu ve şerit paylaşımı

8x SATA 6Gb/s ports (From X570 chipset); 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; Support SATA 6Gbps (For M2_1, M2_3 & M2_4); M2_1 (From processor) Supports 2280/ 22110 storage devices; M2_2 (From X570 chipset) Supports 2260/ 2280 storage devices; M2_3 (From X570 chipset) Supports 2280/ 22110 storage devices; M2_4 (From X570 chipset) Supports 2260/ 2280 storage devices; PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.

Desteklenen M.2 boyut kodları

2280 / 22110 / 2260

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD X570 Chipset; Supports RAID 0, RAID 1 and RAID 10

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5 Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5 Gbps LAN controller

Ses yongası

Realtek ALC4082

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 8x SATA 6Gb/s connectors; 4x M.2 slots (M-Key); 2x USB 2.0 connectors (support additional 4 USB ports); 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports); 1x USB 3.2 Gen 2 10Gbps Type-C connector; 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 2x 2-pin Thermal sensors connectors; 1x Water Flow Meter connector; 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

7

Arka panel bağlantıları

Clear CMOS Button; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A); Wi-Fi / Bluetooth; 2.5G LAN; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6E AX210; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz; (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2
