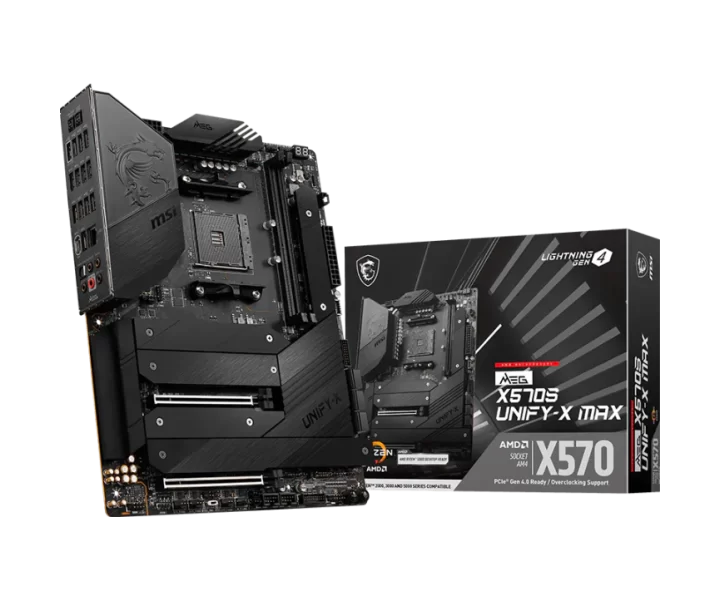

MEG X570S UNIFY-X MAX özellikleri ve fiyatları

MEG X570S UNIFY-X MAX teknik özellikleri

Model kodu

MEG X570S UNIFY-X MAX

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Socket AM4; Please refer www.msi.com for more information on compatible memory.;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (overclocking up to 5800 MHz)

Bellek hızı ve uyumluluk koşulları

Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (overclocking up to 5800 MHz); 1DPC 2R Max speed up to 4266 MHz (overclocking up to 4600 MHz); For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5300 MHz; 1DPC 2R Max speed up to 4266 MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 2x PCIe x16 slots (PCI_E1 from processor, PCI_E2 from X570 chipset) Support x16/ x8 for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors; Support x8/ x8 for AMD Ryzen 2000 G-Series and 3000 G-Series desktop processors; PCI_E1~2, M2_3~6 and SATA5~6 share the same bandwidth. Please see the page 32 for more details.

PCIe şerit paylaşımı ve işlemci koşulları

Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 2x PCIe x16 slots (PCI_E1 from processor, PCI_E2 from X570 chipset) Support x16/ x8 for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors; Support x8/ x8 for AMD Ryzen 2000 G-Series and 3000 G-Series desktop processors; PCI_E1~2, M2_3~6 and SATA5~6 share the same bandwidth. Please see the page 32 for more details.

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

6

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From X570 chipset); 6x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; M2_1 (From processor) Supports SATA 6Gb/s and PCIe M.2 2260/ 2280 storage devices; M2_2 (From X570 chipset) Supports PCIe M.2 2280/ 22110 storage devices; M2_3 (From processor) Supports PCIe M.2 2280/ 22110 storage devices; M2_4 (From processor) Supports PCIe M.2 2260/ 2280 storage devices; M2_5 (From X570 chipset) Supports PCIe M.2 2280/ 22110 storage devices; M2_6 (From X570 chipset) Supports SATA 6Gb/s and PCIe M.2 2280/ 22110 storage devices; PCI_E1~2, M2_3~6 and SATA5~6 share the same bandwidth. Please see the page 32 for more details.

Desteklenen M.2 boyut kodları

2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD X570 Chipset; Supports RAID 0, RAID 1 and RAID 10

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5 Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5 Gbps LAN controller

Ses yongası

Realtek ALC4080

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 6x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 2x 2-pin Thermal Sensors connectors; 1x Water Flow Meter connector; 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

Arka panel bağlantıları

Clear CMOS Button; USB 2.0>; USB 3.2 Gen 1 5Gbps (Type-A); USB 2.0; 2.5G LAN; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector
