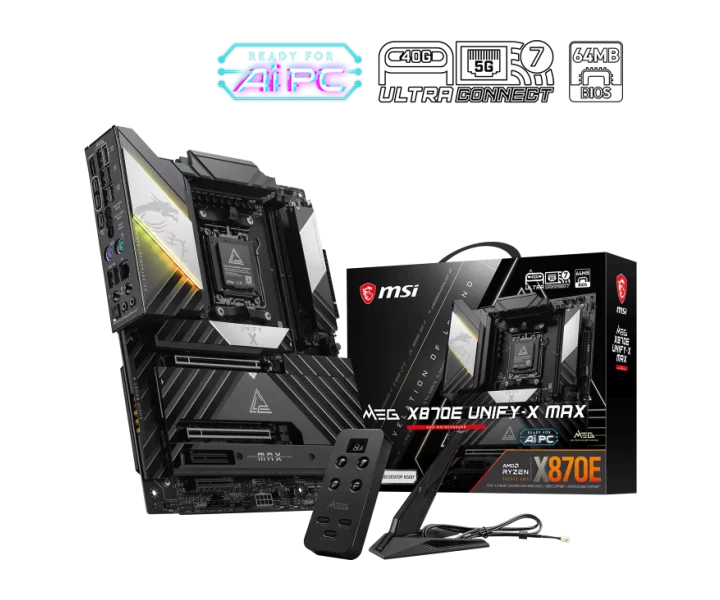

MEG X870E UNIFY-X MAX özellikleri ve fiyatları

MEG X870E UNIFY-X MAX teknik özellikleri

Model kodu

MEG X870E UNIFY-X MAX

İşlemci soketi

AM5

Anakart yonga seti

AMD X870E

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Memory DDR5 10600 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; AMD POR Speed and JEDEC Speed; Memory Overclocking and AMD EXPO; CUDIMM, Clock Driver bypass mode only*

Bellek hızı ve uyumluluk koşulları

Ryzen 9000 Series Processors max. overclocking:; 1DPC 1R Max speed up to 8600+ MT/s; 1DPC 2R Max speed up to 8600+ MT/s; CUDIMM, Clock Driver bypass mode only*; CUDIMM and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCI-E x16 slot; 2x PCI-E x4 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset); PCI_E1 & PCI_E2 slots; Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x8/ x0 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports up to PCIe 4.0 x4/ x0 (For Ryzen 8500/ 8300 Series processors); PCI_E3 & M.2_5 share the bandwidth. PCI_E3 will be disabled when installing device in the M.2_5 slot. You can enable PCI_E3 slot in the BIOS, but this will disable the M.2_5 slot.; Please refer to the PCIe configuration table in the manual for more details.

PCIe şerit paylaşımı ve işlemci koşulları

Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x8/ x0 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports up to PCIe 4.0 x4/ x0 (For Ryzen 8500/ 8300 Series processors); PCI_E3 & M.2_5 share the bandwidth. PCI_E3 will be disabled when installing device in the M.2_5 slot. You can enable PCI_E3 slot in the BIOS, but this will disable the M.2_5 slot.

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

5

SATA bağlantı sayısı

2

M.2 uyumluluğu ve şerit paylaşımı

5x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 2x SATA 6G; M.2_1:; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors); M.2_2:; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors); The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.; M.2_5 & PCI_E3 share the bandwidth. PCI_E3 will be disabled when installing device in the M.2_5 slot. You can enable PCI_E3 slot in the BIOS, but this will disable the M.2_5 slot.; USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.; Please refer to the manual for M.2 SSD heatsink restrictions.

Desteklenen M.2 boyut kodları

2280 / 2260 / 22110

RAID desteği

Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; RAID 5/ 10 configuration is only supported by Ryzen 9000/ 7000 series processors.

USB bağlantısı

4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 8x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear); To achieve USB PD 60W fast charging, the PD_PWR1 connector needs to be connected to the power supply unit.; USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen 8500/ 8300 Series processors.; USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.

Kablolu ağ bağlantısı

1x Realtek 8126 5Gbps LAN

Kablolu ağ denetleyicisi

1x Realtek 8126 5Gbps LAN

Ses yongası

Realtek ALC4080

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel

Dahili bağlantılar ve ön panel başlıkları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x Power Good connector (JM_PSU1); 1x CPU Fan; 2x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports

Güç bağlantıları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin)

Fan ve pompa bağlantıları

1x CPU Fan; 2x Combo Fan (Pump_Sys Fan); 5x System Fan

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

USB 10Gbps (Type-A); Flash BIOS Button; Clear CMOS Button; Smart Button; Keyboard / Mouse; 5G LAN; Wi-Fi / Bluetooth; HD Audio Connectors; HDMI 2.1 Port; USB 40Gbps (Type-C); USB 10Gbps (Type-C); Optical S/PDIF-Out

Görüntü çıkışları ve kullanım koşulları

1x HDMI; Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button; Clear CMOS Button; Smart Button

Diğer anakart özellikleri

1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; 1x EZ LED Control switch

TPM güvenlik modülü bağlantısı

1x TPM pin header(Support TPM 2.0)

Wi-Fi

Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4**, MLO, 4KQAM; 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.; The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

Wi-Fi standardı

Wi-Fi 7

Bluetooth sürümü

5.4

Boyutlar

243.84mmx304.8mm
