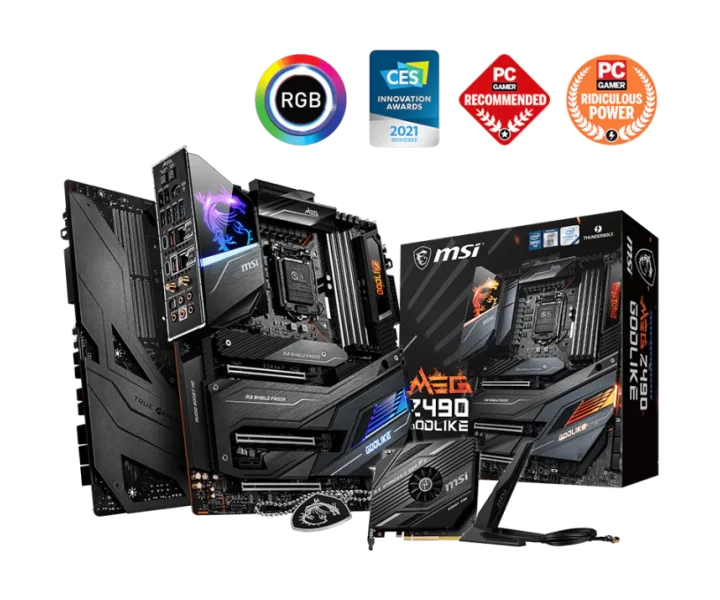

MEG Z490 GODLIKE özellikleri ve fiyatları

MEG Z490 GODLIKE teknik özellikleri

Model kodu

MEG Z490 GODLIKE

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z490

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz; 1DPC 2R Max speed up to 4600+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode; PCI_E1 & PCI_E2 slots (From CPU); Support up to PCIe 4.0 for 11th Gen Intel CPU; Support up to PCIe 3.0 for 10th Gen Intel CPU; PCI_E3 slot (From chipset); Supports up to PCIe 3.0; 1x PCIe 3.0 x1 slot

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports; 3x M.2 slots (Key M); M2_1 slot; CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Intel Z490 Chipset; Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB bağlantısı

Intel Z490 Chipset; 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); ASMedia ASM1074 Chipset; 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors); Intel JHL7540 Thunderbolt 3 Controller; 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel

Kablolu ağ bağlantısı

1x Aquantia AQC107 10G LAN controller; 1x Realtek RTL8125B 2.5G LAN controller

Kablolu ağ denetleyicisi

1x Aquantia AQC107 10G LAN controller; 1x Realtek RTL8125B 2.5G LAN controller

Ses yongası

Realtek ALC1220 Codec + ESS E9018 combo DAC

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec + ESS E9018 combo DAC; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors; 1x 3-pin Water Flow connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 2-pin Thermal Sensors connectors; 1x TPM module connector; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

Güç bağlantıları

1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors

Fan bağlantısı sayısı

10

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; PS/2 Keyboard / Mouse Port; USB 3.2 Gen1 5Gbps (Type-A); 2.5G LAN; 10G Super LAN; Wi-Fi /Bluetooth Antenna Connectors; HD Audio Connectors; Flash BIOS Button; USB 2.0; Thunderbolt 3 (40Gbps); USB 3.2 Gen2 10Gbps (Type-A); Optical S/PDIF-Out

Görüntü çıkışları ve kullanım koşulları

Intel JHL7540 Thunderbolt 3 Controller; 2x Thunderbolt 3 (Type-C) ports on the back panel; Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz; Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz; Maximum shared memory is 1GB; Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 10.9 in. (30.5 cm x 27.7 cm)

Wi-Fi

Intel AX201; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6; Supports Bluetooth 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot; Only support windows 10 64-bit

Bluetooth sürümü

5.1

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket; Processor: See supported processors; Processor: Onboard graphics output are disabled when using F SKU processors.; Processor: BIOS updated to be compatible with 11th Gen Intel Core Processors; Chipset: Intel Z490 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/2666/2933 MHz; Memory: 1DPC 1R Max speed up to 5000+ MHz; Memory: 1DPC 2R Max speed up to 4600+ MHz; Memory: 2DPC 1R Max speed up to 4400+ MHz; Memory: 2DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode; Expansion Slots: PCI_E1 & PCI_E2 slots (From CPU); Expansion Slots: Support up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slots: Support up to PCIe 3.0 for 10th Gen Intel CPU; Expansion Slots: PCI_E3 slot (From chipset); Expansion Slots: Supports up to PCIe 3.0; Expansion Slots: 1x PCIe 3.0 x1 slot; Multi-GPU: Supports 2-Way NVIDIA SLI Technology; Multi-GPU: Supports 3-Way AMD CrossFire Technology; Onboard Graphics: Intel JHL7540 Thunderbolt 3 Controller; Onboard Graphics: 2x Thunderbolt 3 (Type-C) ports on the back panel, Onboard Graphics: Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz; Onboard Graphics: Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz; Onboard Graphics: Maximum shared memory is 1GB; Onboard Graphics: Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.; Storage: 6x SATA 6Gb/s ports; Storage: 3x M.2 slots (Key M); Storage: M2_1 slot; Storage: CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Storage: Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory Ready; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; Storage: SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.; Storage: Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.; RAID: Intel Z490 Chipset; RAID: Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices; USB: Intel Z490 Chipset, USB: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); USB: ASMedia ASM1074 Chipset; USB: 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors); USB: Intel JHL7540 Thunderbolt 3 Controller; USB: 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel; Audio: Realtek ALC1220 Codec + ESS E9018 combo DAC; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; Thunderbolt 3: Intel JHL7540 Thunderbolt 3 Controller; Thunderbolt 3: 2x Thunderbolt 3 (USB Type-C) ports on the back panel; Thunderbolt 3: Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices; Thunderbolt 3: Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices; Thunderbolt 3: Supports up to 5V/3A , 15W power charging; Thunderbolt 3: Supports Daisy-chain up to six ThunderboltTM 3 devices; LAN: 1x Aquantia AQC107 10G LAN controller; LAN: 1x Realtek RTL8125B 2.5G LAN controller; WiFi & Bluetooth: Intel AX201; WiFi & Bluetooth: Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi & Bluetooth: WiFi 6; WiFi & Bluetooth: Supports Bluetooth 5.1 , FIPS, FISMA; WiFi & Bluetooth: The Wireless module is pre-install in the M2 (Key-E) slot; WiFi & Bluetooth: Only support windows 10 64-bit, Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 1x 6-pin ATX PCIE power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 3x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 8x 4-pin system fan connectors; Internal connectors: 1x 3-pin Water Flow connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 2x 2-pin Thermal Sensors connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1x 3-pin CORSAIR LED connector; Back panel ports: Clear CMOS Button; Back panel ports: PS/2 Keyboard / Mouse Port; Back panel ports: USB 3.2 Gen1 5Gbps (Type-A); Back panel ports: 2.5G LAN; Back panel ports: 10G Super LAN; Back panel ports: Wi-Fi /Bluetooth Antenna Connectors; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0, Back panel ports: Thunderbolt 3 (40Gbps); Back panel ports: USB 3.2 Gen2 10Gbps (Type-A); Back panel ports: Optical S/PDIF-Out; Dimensions: 12 in. x 10.9 in. (30.5 cm x 27.7 cm); Dimensions: E-ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
