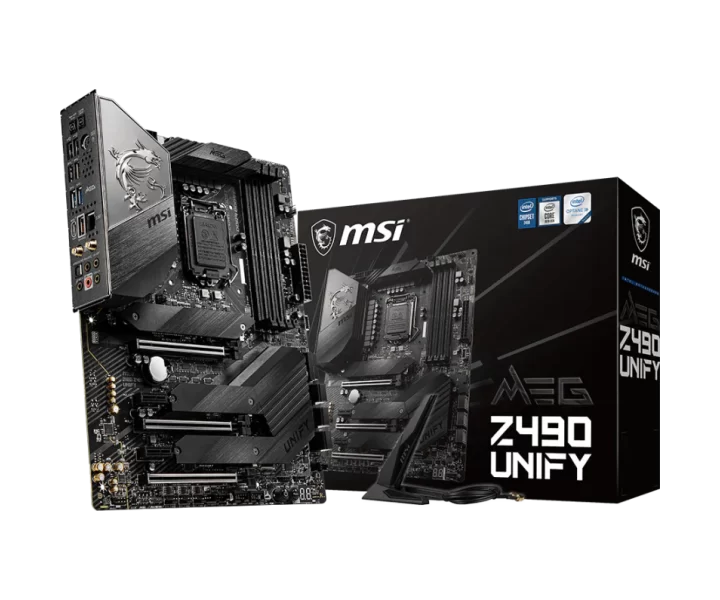

MEG Z490 UNIFY özellikleri ve fiyatları

MEG Z490 UNIFY teknik özellikleri

Model kodu

MEG Z490 UNIFY

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z490

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz; 1DPC 2R Max speed up to 4500+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe 3.0x 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4); PCI_E1 & PCI_E2 slots (From CPU); Support up to PCIe 4.0 for 11th Gen Intel CPU; Support up to PCIe 3.0 for 10th Gen Intel CPU; PCI_E3 slot (From chipset); Supports up to PCIe 3.0; 2x PCIe x1 slots (from chipset); PCIE_5 shares lanes with M2_3, please refer to manual for details

PCIe şerit paylaşımı ve işlemci koşulları

PCIE_5 shares lanes with M2_3, please refer to manual for details

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports; 3x M.2 slots (Key M); M2_1 slot; CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.; M2_3 shares lanes with PCIE_5, please refer to manual for details; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Intel Z490 Chipset; Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB bağlantısı

Intel Z490 Chipset; 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector); 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); ASMedia 3241 chipset; 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

Kablolu ağ bağlantısı

1x Realtek 8125B 2.5G LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8125B 2.5G LAN controller

Ses yongası

Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors; 1x front panel audio connector; 2x system panel connectors; 1x Chassis Intrusion connector; 1x slow mode jumper; 1x power button; 1x reset button; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector; 1x RTD3 connector; 1x TBT connector; Thunderbolt card need support RTD3

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; PS/2 Keyboard / Mouse Port; 2.5G LAN; Wi-Fi /Bluetooth Antenna Connectors; HD Audio Connectors; Flash BIOS Button; USB 2.0 Ports; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Wi-Fi

Intel AX201; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6; Supports Bluetooth 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot; Only support windows 10 64-bit

Bluetooth sürümü

5.1

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket; Processor: Please go to intel.com for compatibility information.; Processor: BIOS updated to be compatible with 11th Gen Intel Core Processors; Processor: See supported processors; Chipset: Intel Z490 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/2666/2933 MHz; Memory: 1DPC 1R Max speed up to 5000+ MHz; Memory: 1DPC 2R Max speed up to 4500+ MHz; Memory: 2DPC 1R Max speed up to 4400+ MHz; Memory: 2DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 3x PCIe 3.0x 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4); Expansion Slots: PCI_E1 & PCI_E2 slots (From CPU); Expansion Slots: Support up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slots: Support up to PCIe 3.0 for 10th Gen Intel CPU; Expansion Slots: PCI_E3 slot (From chipset); Expansion Slots: Supports up to PCIe 3.0; Expansion Slots: 2x PCIe x1 slots (from chipset); Expansion Slots: PCIE_5 shares lanes with M2_3, please refer to manual for details; Multi-GPU: Supports 2-Way NVIDIA SLI Technology; Multi-GPU: Supports 3-Way AMD CrossFire Technology; Storage: 6x SATA 6Gb/s ports; Storage: 3x M.2 slots (Key M), Storage: M2_1 slot; Storage: CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Storage: Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; Storage: M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory Ready; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; Storage: SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.; Storage: M2_3 shares lanes with PCIE_5, please refer to manual for details; Storage: Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.; RAID: Intel Z490 Chipset; RAID: Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices; USB: Intel Z490 Chipset; USB: 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector); USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); USB: ASMedia 3241 chipset, USB: 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel; Audio: Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; LAN: 1x Realtek 8125B 2.5G LAN controller; WiFi & Bluetooth: Intel AX201; WiFi & Bluetooth: Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi & Bluetooth: WiFi 6; WiFi & Bluetooth: Supports Bluetooth 5.1 , FIPS, FISMA; WiFi & Bluetooth: The Wireless module is pre-install in the M2 (Key-E) slot; WiFi & Bluetooth: Only support windows 10 64-bit; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 3x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump connector; Internal connectors: 6x 4-pin system fan connectors; Internal connectors: 1x front panel audio connector; Internal connectors: 2x system panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x slow mode jumper; Internal connectors: 1x power button; Internal connectors: 1x reset button, Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1x 3-pin CORSAIR LED connector; Internal connectors: 1x RTD3 connector; Internal connectors: 1x TBT connector; Internal connectors: Thunderbolt card need support RTD3; Back panel ports: Clear CMOS Button; Back panel ports: PS/2 Keyboard / Mouse Port; Back panel ports: 2.5G LAN; Back panel ports: Wi-Fi /Bluetooth Antenna Connectors; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0 Ports; Back panel ports: USB 3.2 Gen 2 10Gbps (Type-A); Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: USB 3.2 Gen 2x2 20Gbps (Type-C); Back panel ports: Optical S/PDIF-Out; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
