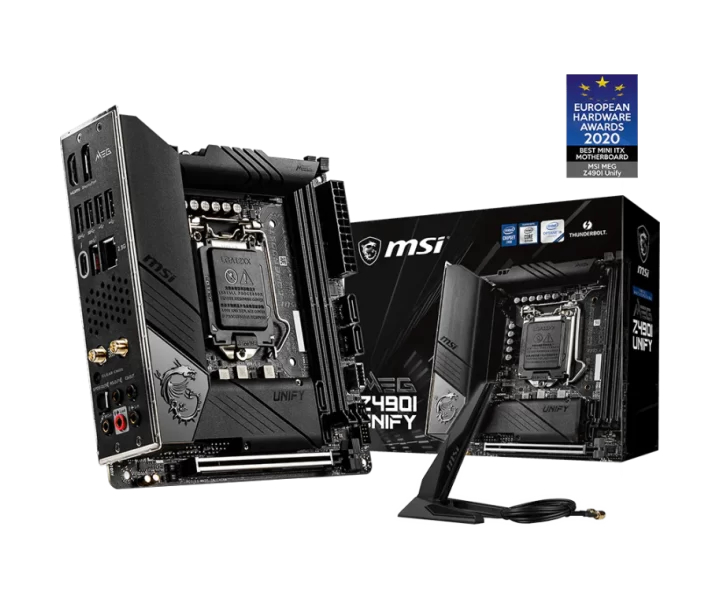

MEG Z490I UNIFY özellikleri ve fiyatları

MEG Z490I UNIFY teknik özellikleri

Model kodu

MEG Z490I UNIFY

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z490

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Extreme Memory Profile [XMP]

Bellek hızı ve uyumluluk koşulları

1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz; 1DPC 2R Max speed up to 4600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0 x16 slot (From CPU); Support up to PCIe 4.0 for 11th Gen Intel CPU; Support up to PCIe 3.0 for 10th Gen Intel CPU

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports; 2x M.2 slots [Key M]; M2_1 slot; CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Supports 2280 storage devices; M2_2 supports up to PCIe 3.0 x4, 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Intel Z490 Chipset; Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB bağlantısı

Intel Z490 Chipset; 2x USB 3.2 Gen2 10Gbps ports [1 Type-A port on the back panel, 1 Type-C internal connector]; 4x USB 3.2 Gen1 5Gbps ports [2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen1 5Gbps connector]; 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]; Intel JHL7540 Thunderbolt 3 Controller; 1x USB 3.2 Gen2 10Gbps Type-C port on the back panel

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC1220 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots [M-Key]; 1x USB 3.2 Gen2 10Gbps Type-C port; 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]; 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]; 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

3

RGB aydınlatma bağlantısı sayısı

2

TPM güvenlik modülü bağlantısı

1xTPM module connector

Wi-Fi

Intel AX201; The Wireless module is pre-installed in the M.2 [Key-E] slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz [160MHz] up to 2.4Gbps; Supports 802.11ac; WiFi 6; Supports Bluetooth 5.1, FIPS, FISMA

Bluetooth sürümü

5.1

Boyutlar

6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket; Processor: See supported processors; Processor: Onboard graphics output are disabled when using F SKU processors.; Processor: BIOS updated to be compatible with 11th Gen Intel Core Processors; Processor: See supported processors; Chipset: Intel Z490 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/2666/2933 MHz; Memory: 1DPC 1R Max speed up to 5000+ MHz; Memory: 1DPC 2R Max speed up to 4600+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode, un-buffered memory; Memory: Supports Intel Extreme Memory Profile [XMP]; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 1x PCIe 3.0 x16 slot (From CPU); Expansion Slots: Support up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slots: Support up to PCIe 3.0 for 10th Gen Intel CPU; Onbaord Graphics: 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz; Onbaord Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz; Onbaord Graphics: Intel JHL7540 Thunderbolt 3 Controller; Onbaord Graphics: 1x Thunderbolt 3 [Type-C] port on the back panel; Onbaord Graphics: Supports Thunderbolt 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz; Onbaord Graphics: Maximum shared memory is 1GB, Thunderbolt 3: Intel JHL7540 Thunderbolt 3 Controller; Thunderbolt 3: 1x Thunderbolt 3 [USB Type-C] port on the back panel; Thunderbolt 3: Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices; Thunderbolt 3: Supports up to 10 Gbps transfer rate with USB 3.2 Gen2 10Gbps devices; Thunderbolt 3: Supports up to 5V/3A , 15W power charging; Thunderbolt 3: Supports Daisy-chain up to six Thunderbolt 3 devices; Storage: 4x SATA 6Gb/s ports; Storage: 2x M.2 slots [Key M]; Storage: M2_1 slot; Storage: CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4; Storage: Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s; Storage: Supports 2280 storage devices; Storage: M2_2 supports up to PCIe 3.0 x4, 2280 storage devices; Storage: Intel Optane Memory Ready; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.; Storage: Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.; RAID: Intel Z490 Chipset; RAID: Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 PCIe storage devices; USB: Intel Z490 Chipset; USB: 2x USB 3.2 Gen2 10Gbps ports [1 Type-A port on the back panel, 1 Type-C internal connector], USB: 4x USB 3.2 Gen1 5Gbps ports [2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen1 5Gbps connector]; USB: 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]; USB: Intel JHL7540 Thunderbolt 3 Controller; USB: 1x USB 3.2 Gen2 10Gbps Type-C port on the back panel; Audio: Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek RTL8125B 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel AX201; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 [Key-E] slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz [160MHz] up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11ac; Wireless LAN & Bluetooth: WiFi 6; Wireless LAN & Bluetooth: Supports Bluetooth 5.1, FIPS, FISMA; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots [M-Key]; Internal connectors: 1x USB 3.2 Gen2 10Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]; Internal connectors: 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector, Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 1xTPM module connector; LED Features: 4x EZ Debug LED; Back Panel Connectors: Display port; Back Panel Connectors: USB 2.0 ports; Back Panel Connectors: 2.5G LAN; Back Panel Connectors: Wi-Fi /Bluetooth Antenna Connectors; Back Panel Connectors: HD Audio Connectors; Back Panel Connectors: HDMI port; Back Panel Connectors: USB 3.2 Gen1 5Gbps (Type-A); Back Panel Connectors: Thunderbolt 3 (40Gbps); Back Panel Connectors: USB 3.2 Gen2 10Gbps (Type-A); Back Panel Connectors: Clear CMOS Button; Back Panel Connectors: Optical S/PDIF Out; Dimensions: 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]; Dimensions: Mini-ITX Form Factor; Mounting: 4 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
