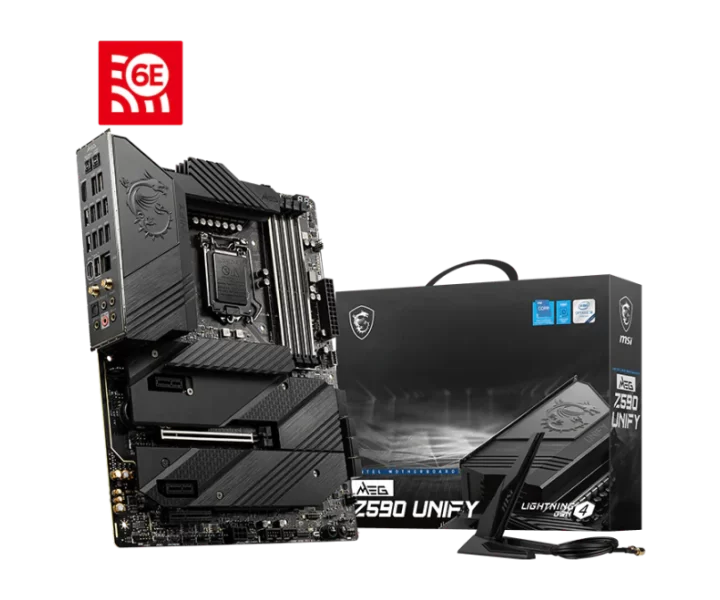

MEG Z590 UNIFY özellikleri ve fiyatları

MEG Z590 UNIFY teknik özellikleri

Model kodu

MEG Z590 UNIFY

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1200;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot (PCI_E2, from CPU); Supports up to PCIe 4.0 x16 with11th Gen CPU; Supports up to PCIe 3.0 x16 with10th Gen CPU; 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset); 2x PCIe 3.0 x1 slots (from Z590 chipset); PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS; selection.; PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them; simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only; support x2 speed. But if you want to install and enable the graphics card in; PCI_E4 slot, the M2_4 slot should be empty.

PCIe şerit paylaşımı ve işlemci koşulları

PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.; PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (from Z590 chipset); 4x M.2 slots (Key M); M2_1 (from CPU); Available only on 11th Gen Intel CPU; Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2, M2_3 slots; Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default); Support up to PCIe 4.0 x4 (from CPU, by BIOS selection); M2_2 supports 2242/ 2260/ 2280 storage devices; M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices; M2_4 slot (from Z590 chipset); Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 or M2_3 slot; Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest; version from MSI website.; PCIe 4.0 specification is available only on 11th Gen Intel CPU.; PCI_E4 and M2_4 share the same bandwidth, if you want to use both of; them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will; only support x2 speed. But if you want to install and enable the graphics card in; PCI_E4 slot, the M2_4 slot should be empty.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

Intel Z590 Chipset; 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel; 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector); 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the; back panel, 2 ports are available through internal USB; 3.2 Gen 1 connector); 2x USB 2.0 ports on the back panel; Hub-GL850G; 4x USB 2.0 ports through internal USB 2.0 connector

Kablolu ağ bağlantısı

1x Intel I225-V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I225-V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4080 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX PCIE power connector; 6x SATA 6Gb/s connectors; 4x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 2-pin Thermal Sensors connector; 1xTPM module connector; 1x Tuning Controller connector; 1x TBT connector (Supports RTD3)

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX PCIE power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

Arka panel bağlantıları

Clear CMOS Button; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; HD Audio Connectors; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz; Available for the processor with integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

TPM güvenlik modülü bağlantısı

1xTPM module connector

Wi-Fi

Intel WiFi 6E AX210; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz); up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

RGB aydınlatma bağlantısı sayısı

3

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; Processor: Processor socket LGA1200; Processor: Please go to intel.com for compatibility information.; Processor: See supported processors; Chipset: Intel Z590 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Memory: Max overclocking frequency:; Memory: 1DPC 1R Max speed up to 5600 MHz; Memory: 1DPC 2R Max speed up to 4800+ MHz; Memory: 2DPC 1R Max speed up to 4400+ MHz; Memory: 2DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer to www.msi.com for more information on compatible memory; Memory: See supported memory; Expansion Slots: 1x PCIe x16 slot (PCI_E2, from CPU); Expansion Slots: Supports up to PCIe 4.0 x16 with11th Gen CPU; Expansion Slots: Supports up to PCIe 3.0 x16 with10th Gen CPU; Expansion Slots: 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset); Expansion Slots: 2x PCIe 3.0 x1 slots (from Z590 chipset); Expansion Slots: PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS; Expansion Slots: selection.; Expansion Slots: PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them, Expansion Slots: simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only; Expansion Slots: support x2 speed. But if you want to install and enable the graphics card in; Expansion Slots: PCI_E4 slot, the M2_4 slot should be empty.; Multi-GPU: Supports 2-Way AMD CrossFire Technology; Onboard Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz; Onboard Graphics: Available for the processor with integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Storage: 6x SATA 6Gb/s ports (from Z590 chipset); Storage: 4x M.2 slots (Key M); Storage: M2_1 (from CPU); Storage: Available only on 11th Gen Intel CPU; Storage: Supports up to PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2, M2_3 slots; Storage: Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default); Storage: Support up to PCIe 4.0 x4 (from CPU, by BIOS selection); Storage: M2_2 supports 2242/ 2260/ 2280 storage devices; Storage: M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_4 slot (from Z590 chipset); Storage: Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; Storage: SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 or M2_3 slot, Storage: Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest; Storage: version from MSI website.; Storage: PCIe 4.0 specification is available only on 11th Gen Intel CPU.; Storage: PCI_E4 and M2_4 share the same bandwidth, if you want to use both of; Storage: them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will; Storage: only support x2 speed. But if you want to install and enable the graphics card in; Storage: PCI_E4 slot, the M2_4 slot should be empty.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; USB: Intel Z590 Chipset; USB: 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel; USB: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector); USB: 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the; USB: back panel, 2 ports are available through internal USB; USB: 3.2 Gen 1 connector); USB: 2x USB 2.0 ports on the back panel; USB: Hub-GL850G; USB: 4x USB 2.0 ports through internal USB 2.0 connector; Audio: Realtek ALC4080 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Intel I225-V 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel WiFi 6E AX210; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot, Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz); Wireless LAN & Bluetooth: up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2, FIPS, FISMA; Wireless LAN & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Wireless LAN & Bluetooth: Bluetooth 5.2 will be ready in WIN10 21H1.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 1x 6-pin ATX PCIE power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 4x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 6x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x 2-pin Thermal Sensors connector; Internal connectors: 1xTPM module connector; Internal connectors: 1x Tuning Controller connector; Internal connectors: 1x TBT connector (Supports RTD3); LED Features: 1x 2-Digit Debug Code LED, LED Features: 4x EZ Debug LED; LED Features: 1x 4-pin RGB LED connector; LED Features: 2x 3-pin RAINBOW LED connectors; LED Features: 1x 3-pin JCORSAIR LED connector; Back panel ports: Clear CMOS Button; Back panel ports: USB 2.0; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: 2.5G LAN; Back panel ports: Wi-Fi / Bluetooth; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 2 10Gbps (Type-A); Back panel ports: USB 3.2 Gen 2x2 20Gbps (Type-C); Back panel ports: Optical S/PDIF-Out; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
