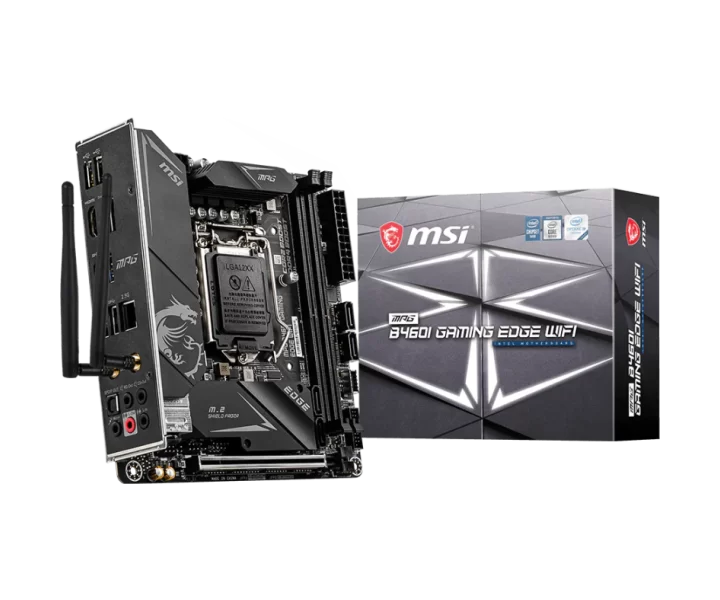

MPG B460I GAMING EDGE WIFI özellikleri ve fiyatları

MPG B460I GAMING EDGE WIFI teknik özellikleri

Model kodu

MPG B460I GAMING EDGE WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Intel B460

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

Intel 10 Gen processors for LGA 1200 socket;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Intel Core i7 / i9 up to DDR4 2933 MHz; Intel Core i5 and below up to DDR4 2666 MHz; Intel Extreme Memory Profile (XMP)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0 x16 slot (From CPU)

PCIe sürümü

PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel B460 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices; M2_2 supports up to PCIe 3.0 x4, 2280 storage devices; Intel 0ptane Memory Ready for M2_2 slot.; SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; Before using Intel 0ptane memory modules, please ensure that you have updated the drivers and BI0S to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Intel B460 Chipset; Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB bağlantısı

Intel B460 Chipset; 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector); 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC1200 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 1x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 1x System panel connector; 1x 4-pin RGB LED connector; 1x 3-pin RAINB0W LED connector; 1x Chassis Intrusion connector; 1xTPM module connector; 1x Clear CM0S jumper; 4x EZ Debug LED

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

3

RGB aydınlatma bağlantısı sayısı

1

Arka panel bağlantıları

DisplayPort; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; HD Audio Connectors; USB 2.0; HDMI™; USB 3.2 Gen 1 5Gbps (Type-C); Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ port, supports a maximum resolution of 4096x2160 @30Hz; 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz

TPM güvenlik modülü bağlantısı

1xTPM module connector

Boyutlar

6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Wi-Fi

Intel AX200; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6 Pre-Certified; Supports Bluetooth 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot; Only support windows 10 64-bit

Bluetooth sürümü

5.1

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports Intel 10th Gen processors for LGA 1200 socket; CPU: See supported processors; CPU: Please go to intel.com for compatibility information.; CPU: Onboard graphics output are disabled when using the F SKU processors.; Chipset: Intel B460 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Intel Core i7 / i9; Memory: Supports up to DDR4 2933 MHz; Memory: Intel Core i5 and below; Memory: Supports up to DDR4 2666 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 1x PCIe 3.0 x16 slot (From CPU); Onboard Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz; Onboard Graphics: 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz; Storage: Intel B460 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 2x M.2 slots (Key M); Storage: M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices; Storage: M2_2 supports up to PCIe 3.0 x4, 2280 storage devices; Storage: Intel 0ptane Memory Ready for M2_2 slot.; Storage: SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; Storage: Before using Intel 0ptane memory modules, please ensure that you have updated the drivers and BI0S to the latest version from MSI website.; RAID: Intel B460 Chipset, RAID: Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; USB: Intel B460 Chipset; USB: 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector); USB: 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector); Audio: Realtek ALC1200 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek RTL8125B 2.5Gbps LAN controller; Wireless LAN & 8luetooth: Intel AX200; Wireless LAN & 8luetooth: Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; Wireless LAN & 8luetooth: WiFi 6 Pre-Certified; Wireless LAN & 8luetooth: Supports Bluetooth 5.1 , FIPS, FISMA; Wireless LAN & 8luetooth: The Wireless module is pre-install in the M2 (Key-E) slot; Wireless LAN & 8luetooth: Only support windows 10 64-bit; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x USB 2.0 connector (supports additional 2 USB 2.0 ports), Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 1x System panel connector; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 1x 3-pin RAINB0W LED connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1xTPM module connector; Internal connectors: 1x Clear CM0S jumper; Internal connectors: 4x EZ Debug LED; Back panel ports: DisplayPort; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: 2.5G LAN; Back panel ports: Wi-Fi / Bluetooth; Back panel ports: HD Audio Connectors; Back panel ports: USB 2.0; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-C); Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: Optical S/PDIF OUT; I/O Controller: NUVOTON NCT6687 Controller Chip; Dimensions: Mini-ITX Form Factor; Dimensions: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm); Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
