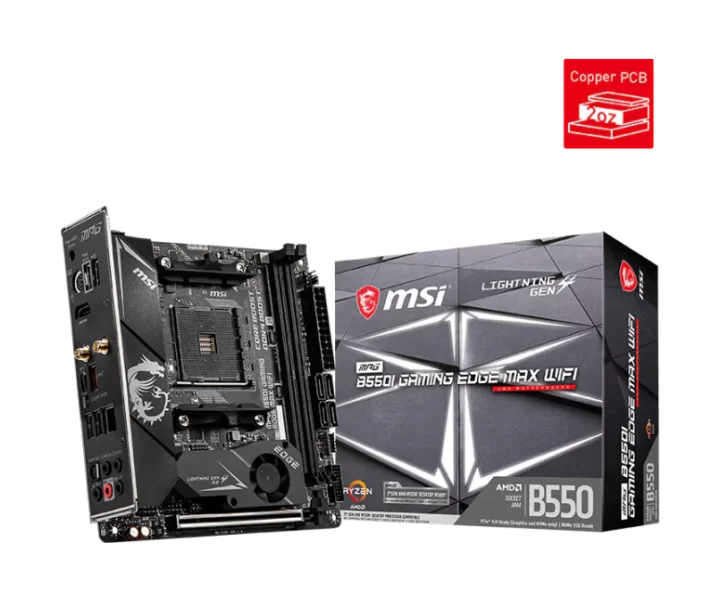

MPG B550I GAMING EDGE MAX WIFI özellikleri ve fiyatları

MPG B550I GAMING EDGE MAX WIFI teknik özellikleri

Model kodu

MPG B550I GAMING EDGE MAX WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

2x DDR4 memory slots, up to 64GB DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC; DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ

Bellek hızı ve uyumluluk koşulları

DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ; 1DPC 2R max speed 4000 MHZ

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 4.0 / 3.0 x16 slot; The supported specification depends on installed processor.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots [Key M]; M2 1 slot [from AMD Processor]; Supports PCIe 4.0/3.0 x4; Supports SATA 6Gb/s; Supports 2260/ 2280 storage devices; M2_2 slot [from AMD B550 chipset]; Supports PCIe 3.0x4; Supports 2280 storage devices; The supported specification depends on installed processor.

Desteklenen M.2 boyut kodları

2260 / 2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]; 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]; AMD Processor; 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel; 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5Gbps LAN controller

Ses yongası

Realtek ALC1200 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots [M-Key]; 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]; 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]; 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x 3-pin RAINBOW LED connector; 1x Clear CMOS jumper; 4x EZ Debug LED

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

3

RGB aydınlatma bağlantısı sayısı

1

Arka panel bağlantıları

USB 2.0; WiFi / Bluetooth; USB 3.2 Gen 2 10Gbps(Type-A); 2.5G LAN; HD Audio Connectors; Flash BIOS Button; PS/2 Combo Port; HDMI™ 2.1; USB 3.2 Gen 2 10Gbps(Type-C); Clear CMOS; USB 3.2 Gen 1 5Gbops(Type-A); Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Maximum shared memory of 2048 MB; Available for the processor with integrated graphics.

BIOS özellikleri

Flash BIOS Button; Clear CMOS

Wi-Fi

Intel AX200/AX210; The Wireless module is pre-installed in the M.2 [Key-E] slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2

Bluetooth sürümü

5.2

Boyutlar

6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors; CPU: See supported processors; Chipset: AMD B550 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC; Memory: Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE; Memory: 1DPC 1R max speed 4600 MHZ; Memory: 1DPC 2R max speed 4000 MHZ; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 1x PCIe 4.0 / 3.0 x16 slot; Expansion Slots: The supported specification depends on installed processor.; Onboard Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Onboard Graphics: Maximum shared memory of 2048 MB; Onboard Graphics: Available for the processor with integrated graphics.; Storage: AMD B550 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 2x M.2 slots [Key M]; Storage: M2 1 slot [from AMD Processor]; Storage: Supports PCIe 4.0/3.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2260/ 2280 storage devices; Storage: M2_2 slot [from AMD B550 chipset]; Storage: Supports PCIe 3.0x4; Storage: Supports 2280 storage devices, Storage: The supported specification depends on installed processor.; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; USB: AMD B550 Chipset; USB: 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]; USB: 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]; USB: AMD Processor; USB: 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel; USB: 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; Audio: Realtek ALC1200 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek RTL8125B 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel AX200/AX210; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 [Key-E] slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots [M-Key]; Internal connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports], Internal connectors: 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x 3-pin RAINBOW LED connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 4x EZ Debug LED; Back panel ports: USB 2.0; Back panel ports: WiFi / Bluetooth; Back panel ports: USB 3.2 Gen 2 10Gbps(Type-A); Back panel ports: 2.5G LAN; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: PS/2 Combo Port; Back panel ports: HDMI 2.1; Back panel ports: USB 3.2 Gen 2 10Gbps(Type-C); Back panel ports: Clear CMOS; Back panel ports: USB 3.2 Gen 1 5Gbops(Type-A); Back panel ports: Optical S/PDIF OUT; I/O Controller: NUVOTON NCT6687-R Controller Chip; Dimensions: Mini-ITX Form Factor; Dimensions: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm); Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
