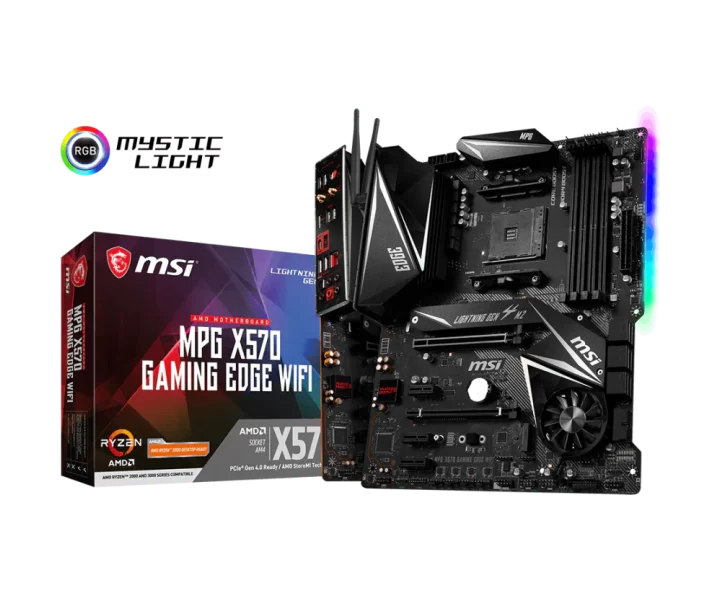

MPG X570 GAMING EDGE WIFI özellikleri ve fiyatları

MPG X570 GAMING EDGE WIFI teknik özellikleri

Model kodu

MPG X570 GAMING EDGE WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB s3rd Gen AMD Ryzen Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE; 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode; Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode); 3x PCIe 3.0 x1 slots; PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.; The speeds may vary for different devices

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode; Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

AMD X570 Chipset; 4x SATA 6Gb/s ports(SATA3-SATA6); 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); - Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD X570 Chipset); - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series,Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices; ASMedia ASM1061; 2x SATA 6Gb/s ports (SATA1, SATA2)

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD X570 Chipset; Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel; 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector; 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen / Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel; 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8111H Gigabit LAN Controller

Kablolu ağ denetleyicisi

1x Realtek 8111H Gigabit LAN Controller

Ses yongası

Realtek ALC1220 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LEDs

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 4x 4-pin system fan connectors

Fan bağlantısı sayısı

6

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Keyboard / Mouse; Wireless / Bluetooth; USB 3.2 Gen1 Type-A; LAN; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 3.2 Gen2 Type-A + C; USB 3.2 Gen2 Type-A; Optical S/PDIF out

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz; Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3; Only support when using Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors; Maximum shared memory of 2048 MB

BIOS özellikleri

Flash BIOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.4 cm x 24.3 cm)

Wi-Fi

Intel Dual Band Wireless-AC 3168; Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps; Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2; The Wireless module is pre-install in the M2_3 (Key-E) slot

Bluetooth sürümü

4.2

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket; Processor: See supported processors; Chipset: AMD X570 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: s3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE; Memory: 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); Expansion Slots: 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; Expansion Slots: 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode; Expansion Slots: Ryzen 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode; Expansion Slots: Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode, Expansion Slots: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode); Expansion Slots: 3x PCIe 3.0 x1 slots; Expansion Slots: PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.; Expansion Slots: The speeds may vary for different devices; Onboard Graphics: 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz; Onboard Graphics: Support for HDMI 1.4 version, HDCP 1.4 & 2.3; Onboard Graphics: Only support when using Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors; Onboard Graphics: Maximum shared memory of 2048 MB; Multi-GPU: Supports 2-Way AMD CrossFire Technology; Storage: AMD X570 Chipset; Storage: 4x SATA 6Gb/s ports(SATA3-SATA6); Storage: 2x M.2 slots (Key M); Storage: M2_1 slot (from AMD Processor); Storage: - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen); Storage: - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics); Storage: - Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 slot (from AMD X570 Chipset); Storage: - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen 4000 G-Series,Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices; Storage: ASMedia ASM1061; Storage: 2x SATA 6Gb/s ports (SATA1, SATA2); RAID: AMD X570 Chipset; RAID: Supports RAID 0, RAID 1 and RAID 10; USB: AMD X570 Chipset, USB: 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel; USB: 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector; USB: 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); USB: AMD Processor; USB: 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen / Ryzen 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel; USB: 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel; Audio: Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; LAN: 1x Realtek 8111H Gigabit LAN Controller; WiFi & Bluetooth: Intel Dual Band Wireless-AC 3168; WiFi & Bluetooth: Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps; WiFi & Bluetooth: Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2; WiFi & Bluetooth: The Wireless module is pre-install in the M2_3 (Key-E) slot; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 1x 4-pin ATX 12V power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports), Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump connector; Internal connectors: 4x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Serial port connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 2x 4-pin RGB LED connectors; Internal connectors: 2x 3-pin RAINBOW LED connectors; Internal connectors: 4x EZ Debug LEDs; Back panel ports: Keyboard / Mouse; Back panel ports: Wireless / Bluetooth; Back panel ports: USB 3.2 Gen1 Type-A; Back panel ports: LAN; Back panel ports: Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen2 Type-A + C; Back panel ports: USB 3.2 Gen2 Type-A; Back panel ports: Optical S/PDIF out; Dimensions: 12 in. x 9.6 in. (30.4 cm x 24.3 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
