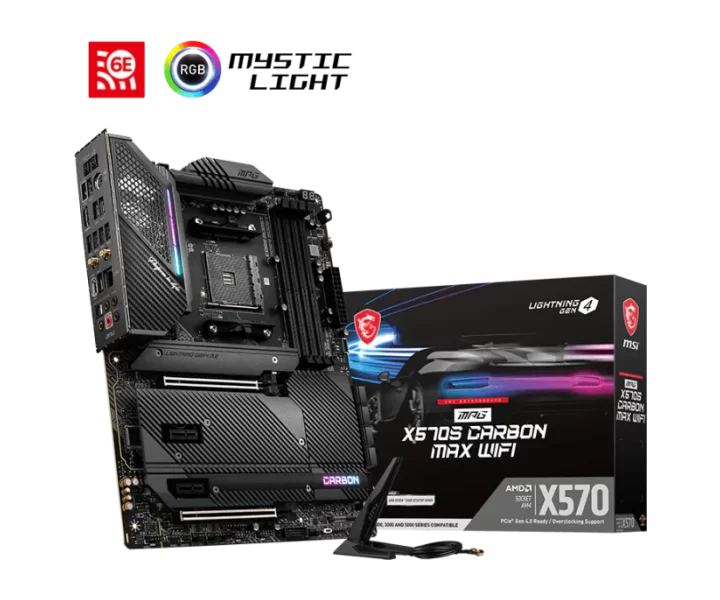

MPG X570S CARBON MAX WIFI özellikleri ve fiyatları

MPG X570S CARBON MAX WIFI teknik özellikleri

Model kodu

MPG X570S CARBON MAX WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Socket AM4;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz

Bellek hızı ve uyumluluk koşulları

Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz; 1DPC 2R Max speed up to 4266 MHz; 2DPC 1R Max speed up to 4400 MHz; 2DPC 2R Max speed up to 3600 MHz; For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz; 1DPC 2R Max speed up to 4000 MHz; 2DPC 1R Max speed up to 4000 MHz; 2DPC 2R Max speed up to 3600 MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

Supports PCIe 4.0 / PCIe 3.0; PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; 1x PCIe x16 slot (From processor); PCI_E1 supports PCIe 4.0/ 3.0 x16; PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen 3000 G-and 2000 G- series desktop processors; 1x PCIe x16 slot (From X570 chipset); PCI_E4 supports PCIe 4.0/ 3.0 x4; 2x PCIe 3.0 x1 slots (From X570 chipset); * The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4; slot.

PCIe şerit paylaşımı ve işlemci koşulları

Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen 3000 G-and 2000 G- series desktop processors; The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4 slot.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

8

M.2 uyumluluğu ve şerit paylaşımı

8x SATA 6Gb/s ports (From X570 chipset); 4x M.2 slots (Key M); Supports PCIe 4.0 / PCIe 3.0; PCIe 4.0 is available only on AMD Ryzen 5000 Series; and 3000 Series desktop processors; M2_1 (From processor); Supports 2242/ 2260/2280/22110 storage devices; Supports up to SATA 6Gb/s; M2_2, M2_3 and M2_4 slots (from AMD X570 Chipset); M2_2 & M2_4 slots support 2242/ 2260/ 2280; storage devices; M2_3 slot supports 2242/ 2260/2280/22110 storage; devices; M2_2 & M2_3 slots support up to SATA 6Gb/s; SATA5-6 will be unavailable when installing SATA SSD in the M2_3 slot;; SATA5-8 will be unavailable when installing PCIe SSD in the M2_3 slot.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

AMD X570 Chipset; Supports RAID 0, RAID 1 and RAID 10

USB bağlantısı

AMD X570 Chipset; 1x USB 3.2 Gen 2 10Gbps Type-C internal connector; 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors; 2x USB 2.0 ports on the back panel; Asmedia 1074 Chipset; 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; GL850G Hub; 4x USB 2.0 ports are available through the internal USB connectors; AMD Processor; 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel

Kablolu ağ bağlantısı

1x Realtek RTL8125B 2.5 Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8125B 2.5 Gbps LAN controller

Ses yongası

Realtek ALC4080 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 8x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 2-pin Thermal sensor connector; 1x TPM module connector; 1x Clear CMOS jumper

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; Keyboard / Mouse; USB 3.2 Gen 2 10Gbps Type-A; 2.5G LAN; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 3.2 Gen 1 5Gbps Type-A; Wi-Fi / Bluetooth; USB 3.2 Gen 2 10Gbps Type-A/C; Optical S/PDIF Out

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz/; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the processor installed.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Diğer anakart özellikleri

1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector; 4x EZ Debug LED; 1x 2-Digit Debug Code LED; 1x EZ LED Control switch

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Wi-Fi

Intel Wi-Fi 6E AX210; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Bluetooth sürümü

5.2

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; Processor: Supports Socket AM4; Processor: Please go to msi.com to get the newest support status as new processors are released.; Processor: See supported processors; Chipset: AMD X570 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Memory: Max frequency by A-XMP OC mode:; Memory: For Ryzen 5000 G-Series & 4000 G-Series processors; Memory: 1DPC 1R Max speed up to 5300 MHz; Memory: 1DPC 2R Max speed up to 4266 MHz; Memory: 2DPC 1R Max speed up to 4400 MHz; Memory: 2DPC 2R Max speed up to 3600 MHz; Memory: For Ryzen 5000 Series & 3000 Series processors; Memory: 1DPC 1R Max speed up to 5100 MHz; Memory: 1DPC 2R Max speed up to 4000 MHz; Memory: 2DPC 1R Max speed up to 4000 MHz; Memory: 2DPC 2R Max speed up to 3600 MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible memory; Memory: See supported memory; Expansion Slots: Supports PCIe 4.0 / PCIe 3.0; Expansion Slots: PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors; Expansion Slots: 1x PCIe x16 slot (From processor); Expansion Slots: PCI_E1 supports PCIe 4.0/ 3.0 x16, Expansion Slots: PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen 3000 G-and 2000 G- series desktop processors; Expansion Slots: 1x PCIe x16 slot (From X570 chipset); Expansion Slots: PCI_E4 supports PCIe 4.0/ 3.0 x4; Expansion Slots: 2x PCIe 3.0 x1 slots (From X570 chipset); Expansion Slots: * The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4; Expansion Slots: slot.; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz/; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the processor installed.; Multi-GPU: Supports AMD CrossFire Technology; Storage: 8x SATA 6Gb/s ports (From X570 chipset); Storage: 4x M.2 slots (Key M); Storage: Supports PCIe 4.0 / PCIe 3.0; Storage: PCIe 4.0 is available only on AMD Ryzen 5000 Series; Storage: and 3000 Series desktop processors; Storage: M2_1 (From processor); Storage: Supports 2242/ 2260/2280/22110 storage devices; Storage: Supports up to SATA 6Gb/s; Storage: M2_2, M2_3 and M2_4 slots (from AMD X570 Chipset); Storage: M2_2 & M2_4 slots support 2242/ 2260/ 2280; Storage: storage devices; Storage: M2_3 slot supports 2242/ 2260/2280/22110 storage; Storage: devices; Storage: M2_2 & M2_3 slots support up to SATA 6Gb/s; Storage: SATA5-6 will be unavailable when installing SATA SSD in the M2_3 slot;; Storage: SATA5-8 will be unavailable when installing PCIe SSD in the M2_3 slot.; RAID: AMD X570 Chipset, RAID: Supports RAID 0, RAID 1 and RAID 10; USB: AMD X570 Chipset; USB: 1x USB 3.2 Gen 2 10Gbps Type-C internal connector; USB: 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors; USB: 2x USB 2.0 ports on the back panel; USB: Asmedia 1074 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; USB: GL850G Hub; USB: 4x USB 2.0 ports are available through the internal USB connectors; USB: AMD Processor; USB: 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel; Audio: Realtek ALC4080 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Realtek RTL8125B 2.5 Gbps LAN controller; WiFi & Bluetooth: Intel Wi-Fi 6E AX210; WiFi & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; WiFi & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; WiFi & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; WiFi & Bluetooth: Supports Bluetooth 5.2, FIPS, FISMA; WiFi & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; WiFi & Bluetooth: Bluetooth 5.2 will be ready in WIN10 21H1.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 1x 4-pin ATX 12V power connector; Internal connectors: 8x SATA 6Gb/s connectors; Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0; Internal connectors: ports), Internal connectors: 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4; Internal connectors: USB 3.2 Gen 1 5Gbps ports); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump connector; Internal connectors: 6x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x 2-pin Thermal sensor connector; Internal connectors: 1x TPM module connector; Internal connectors: 1x Clear CMOS jumper; LED Feature: 1x 4-pin RGB LED connector; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 1x 3-pin CORSAIR LED connector; LED Feature: 4x EZ Debug LED; LED Feature: 1x 2-Digit Debug Code LED; LED Feature: 1x EZ LED Control switch; Back panel ports: Clear CMOS Button; Back panel ports: Keyboard / Mouse; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A; Back panel ports: 2.5G LAN; Back panel ports: Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: Wi-Fi / Bluetooth; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A/C; Back panel ports: Optical S/PDIF Out; Dimensions: ATX Form Factor; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit, Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
