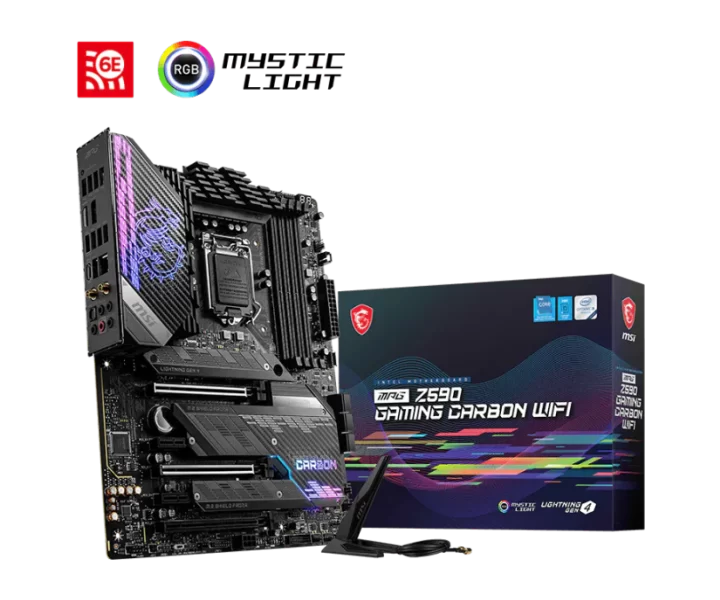

MPG Z590 GAMING CARBON WIFI özellikleri ve fiyatları

MPG Z590 GAMING CARBON WIFI teknik özellikleri

Model kodu

MPG Z590 GAMING CARBON WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1200;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz; 1DPC 2R Max speed up to 4700+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4; PCI_E1 & PCI_E3 slots (From CPU) Support PCIe 4.0 for 11th Gen Intel CPU; Support PCIe 3.0 for 10th Gen Intel CPU; PCI_E5 slot (From Z590 Chipset) Supports PCIe 3.0; 2x PCIe 3.0 x1 slots (From Z590 Chipset)

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From Z590 Chipset); 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU; Supports PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 & M2_3 slot (From Z590 Chipset) Supports PCIe 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5, for M.2 NVMe storage devices

USB bağlantısı

Intel Z590 Chipset; 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel); 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector); 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector); Hub-GL850G; 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

Kablolu ağ bağlantısı

1x Intel I225V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I225V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4080

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin PCIE power connector; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (supports RTD3) 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin PCIE power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

3

Arka panel bağlantıları

USB 2.0; DisplayPort; USB 3.2 Gen 1 5Gbps Type-A; 2.5G LAN; Audio Connectors; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Wi-Fi / Bluetooth; Optical S/PDIF Out

Görüntü çıkışları ve kullanım koşulları

1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz/; 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz/; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

Diğer anakart özellikleri

1x EZ LED Control switch; 4x EZ Debug LED; 1x 2-Digit Debug Code LED; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
