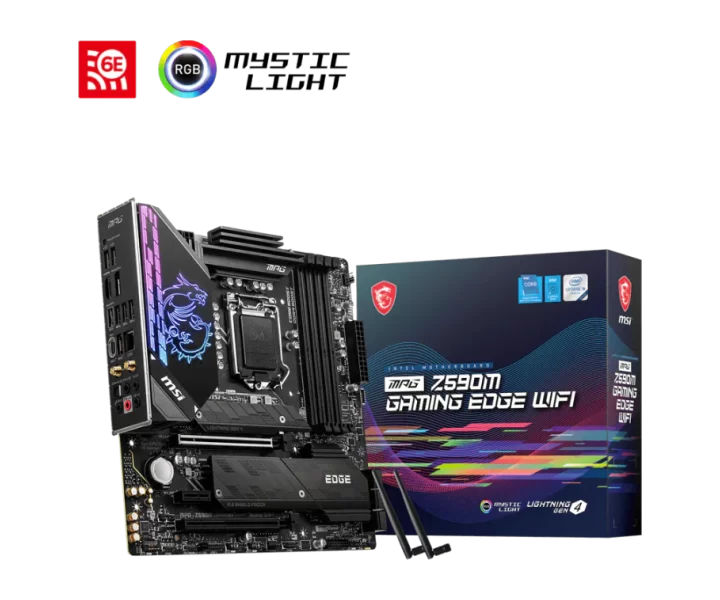

MPG Z590M GAMING EDGE WIFI özellikleri ve fiyatları

MPG Z590M GAMING EDGE WIFI teknik özellikleri

Model kodu

MPG Z590M GAMING EDGE WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z590

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1200;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz; 1DPC 2R Max speed up to 4700+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCIe x16 slots; Support x16/x4; PCI_E1 (From CPU); Supports up to PCIe 4.0 for 11th Gen Intel CPU; Supports up to PCIe 3.0 for 10th Gen Intel CPU; PCI_E3(From Z590 Chipset); Support up to PCIe 3.0; 1x PCIe 3.0 x1 slots (From Z590 Chipset)

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From Z590 Chipset); 2x M.2 slots (Key M); M2_1 slot (From CPU); Available only on 11th Gen Intel CPU; Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (From Z590 Chipset); Support up to PCIe 3.0 x4; Support up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel; Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA; storage devices

USB bağlantısı

Intel Z590 Chipset; 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel); 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A ports on the back panel); 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors); 2x USB 2.0 ports on the back panel; Hub-GL850G; 4x USB 2.0 ports are available through the internal connectors

Kablolu ağ bağlantısı

1x Intel I225V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I225V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4080

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 2-pin system fan connectors; 1x Front panel audio connectors; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Clear CMOS jumper; 1x Tuning Controller connector; 1x TBT connector (supports RTD3)

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 2-pin system fan connectors

RGB aydınlatma bağlantısı sayısı

3

Arka panel bağlantıları

DisplayPort; USB 3.2 Gen 1 5Gbps Type-A; 2.5G LAN; Wi-Fi/Bluetooth; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF Out

Görüntü çıkışları ve kullanım koşulları

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz/; 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz/; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

Diğer anakart özellikleri

1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Wi-Fi

Intel Wi-Fi 6E AX210; The Wireless module is pre-installed in the M.2 (Key-E); slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to; 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2z, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Bluetooth sürümü

5.2

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core Processors, 11th Gen; Processor: Intel Core Processors, Pentium Gold and Celeron; Processor: Processors; Processor: Processor socket LGA1200; Processor: Please go to intel.com for compatibility information.; Processor: See supported processors; Chipset: Intel Z590 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel; Memory: CPU (by JEDEC & POR); Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen; Memory: Intel CPU (by JEDEC & POR); Memory: Max overclocking frequency:; Memory: 1DPC 1R Max speed up to 5333 MHz; Memory: 1DPC 2R Max speed up to 4700+ MHz; Memory: 2DPC 1R Max speed up to 4400+ MHz; Memory: 2DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode,, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer to www.msi.com for more information on compatible memory; Memory: See supported memory; Expansion Slots: 2x PCIe x16 slots; Expansion Slots: Support x16/x4; Expansion Slots: PCI_E1 (From CPU); Expansion Slots: Supports up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slots: Supports up to PCIe 3.0 for 10th Gen Intel CPU; Expansion Slots: PCI_E3(From Z590 Chipset); Expansion Slots: Support up to PCIe 3.0; Expansion Slots: 1x PCIe 3.0 x1 slots (From Z590 Chipset); Onboard Graphics: 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz/, Onboard Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz/; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Multi-GPU: Supports 2-Way AMD CrossFire Technology; Storage: 6x SATA 6Gb/s ports (From Z590 Chipset); Storage: 2x M.2 slots (Key M); Storage: M2_1 slot (From CPU); Storage: Available only on 11th Gen Intel CPU; Storage: Supports up to PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: M2_2 slot (From Z590 Chipset); Storage: Support up to PCIe 3.0 x4; Storage: Support up to SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory Ready; Storage: Supports Intel Smart Response Technology for Intel; Storage: Core processors; Storage: SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; Storage: Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA; RAID: storage devices; USB: Intel Z590 Chipset; USB: 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel); USB: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A ports on the back panel); USB: 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors), USB: 2x USB 2.0 ports on the back panel; USB: Hub-GL850G; USB: 4x USB 2.0 ports are available through the internal connectors; Audio: Realtek ALC4080; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Intel I225V 2.5Gbps LAN controller; WIFI & BLUETOOTH: Intel Wi-Fi 6E AX210; WIFI & BLUETOOTH: The Wireless module is pre-installed in the M.2 (Key-E); WIFI & BLUETOOTH: slot; WIFI & BLUETOOTH: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to; WIFI & BLUETOOTH: 2.4Gbps; WIFI & BLUETOOTH: Supports 802.11 a/ b/ g/ n/ ac/ ax; WIFI & BLUETOOTH: Supports Bluetooth 5.2z, FIPS, FISMA; WIFI & BLUETOOTH: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; WIFI & BLUETOOTH: Bluetooth 5.2 will be ready in WIN10 21H1.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 1x 4-pin ATX 12V power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 2-pin system fan connectors; Internal connectors: 1x Front panel audio connectors, Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x TPM module connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x Tuning Controller connector; Internal connectors: 1x TBT connector (supports RTD3); LED Feature: 1x 4-pin RGB LED connector; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 4x EZ Debug LED; Back panel ports: DisplayPort; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: 2.5G LAN; Back panel ports: Wi-Fi/Bluetooth; Back panel ports: Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 2.0; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A; Back panel ports: USB 3.2 Gen 2x2 20Gbps Type-C; Back panel ports: Optical S/PDIF Out; Dimensions: Micro-ATX Form Factor; Dimensions: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
