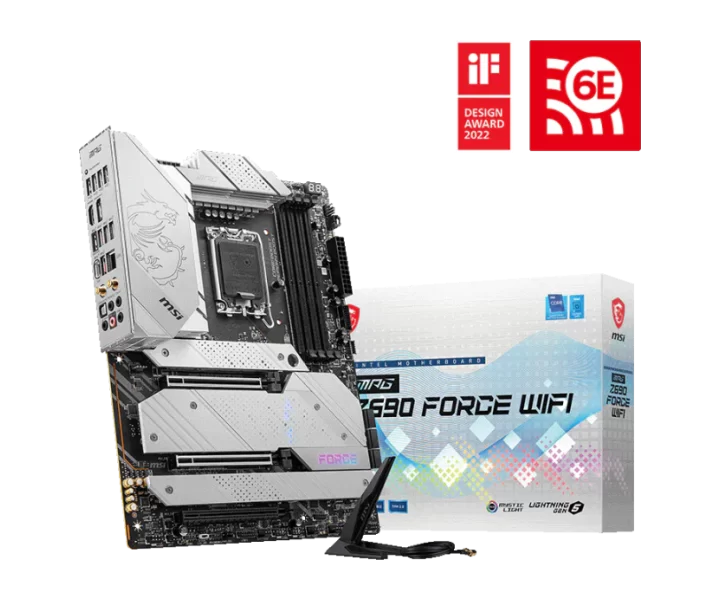

MPG Z690 FORCE WIFI özellikleri ve fiyatları

MPG Z690 FORCE WIFI teknik özellikleri

Model kodu

MPG Z690 FORCE WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z690

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 5600 MHz (by JEDEC & POR); Intel XMP 3.0 OC

Bellek hızı ve uyumluluk koşulları

Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots; PCI_E1 & PCI_E2 slots (From CPU); Support PCIe 5.0; Support x16/ x0, x8/ x8; PCI_E3 slot (From Z690 Chipset); Supports PCIe 3.0 x4

PCIe sürümü

PCIe 5.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

5

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset); 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061); 5x M.2 slots (Key M); M2_1 slot (From CPU); Supports PCIe 4.0 x4; Supports 2260/ 2280/ 22110 storage devices; M2_2 slot (From Z690 Chipset); Supports PCIe 4.0 x4; Supports 2260/ 2280 storage devices; M2_3 slot (From Z690 Chipset); Supports PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_4 slot (From Z690 Chipset); Supports PCIe 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_5 slot (From Z690 Chipset); Supports PCIe 4.0 x4; Supports SATA 6Gb/s; Supports 2260/ 2280 storage devices; M2_2~5 support Intel Optane Memory; Supports Intel Smart Response Technology for Intel; Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.

Desteklenen M.2 boyut kodları

2260 / 2280 / 22110 / 2242

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage; devices; Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2; NVMe storage devices

USB bağlantısı

Intel Z690 Chipset; 1x USB3.2 Gen2x2 20Gbps Type-C port on the back; panel; 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on; the back panel, 1 Type-C available through the internal; connector); 2x USB 3.2 Gen 1 5Gbps ports available through the; internal connector; 4 USB 2.0 ports on the back panel; USB Hub-GL850G; 4x USB 2.0 ports available through internal connectors

Kablolu ağ bağlantısı

1x Intel I225V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I225V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4080 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 5x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C connector; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (supports RTD3); 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

USB 2.0; DisplayPort; 2.5G LAN; Wi-Fi/Bluetooth; Audio Connectors; Flash BIOS Button; HDMI; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF Out

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz/; 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz/; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

Diğer anakart özellikleri

1x EZ LED Control switch; 4x EZ Debug LED; 1x 2-Digit Debug Code LED; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Wi-Fi

Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in WIN10 21H1 and Windows11.

Bluetooth sürümü

5.3

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to intel.com for compatibility information.; Processor: See supported processors; Chipset: Intel Z690 Chipset; Memory: 4x DDR5 memory slots, support up to 192GB; Memory: Supports 1R 5600 MHz (by JEDEC & POR); Memory: Max. overclocking frequency:; Memory: 1DPC 1R Max speed up to 6666+ MHz; Memory: 1DPC 2R Max speed up to 6000+ MHz; Memory: 2DPC 1R Max speed up to 6000+ MHz; Memory: 2DPC 2R Max speed up to 5600+ MHz; Memory: Supports Intel XMP 3.0 OC; Memory: Supports Dual Controller Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible memory; Memory: See supported memory; Expansion Slots: 3x PCIe x16 slots; Expansion Slots: PCI_E1 & PCI_E2 slots (From CPU); Expansion Slots: Support PCIe 5.0; Expansion Slots: Support x16/ x0, x8/ x8; Expansion Slots: PCI_E3 slot (From Z690 Chipset); Expansion Slots: Supports PCIe 3.0 x4; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum; Onboard Graphics: resolution of 4K 60Hz/; Onboard Graphics: 1x DisplayPort 1.4 port with HBR3, supports a maximum; Onboard Graphics: resolution of 4K 60Hz/; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed., Multi-GPU: Supports AMD CrossFire Technology; Storage: 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset); Storage: 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061); Storage: 5x M.2 slots (Key M); Storage: M2_1 slot (From CPU); Storage: Supports PCIe 4.0 x4; Storage: Supports 2260/ 2280/ 22110 storage devices; Storage: M2_2 slot (From Z690 Chipset); Storage: Supports PCIe 4.0 x4; Storage: Supports 2260/ 2280 storage devices; Storage: M2_3 slot (From Z690 Chipset); Storage: Supports PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_4 slot (From Z690 Chipset); Storage: Supports PCIe 3.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: M2_5 slot (From Z690 Chipset); Storage: Supports PCIe 4.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2260/ 2280 storage devices; Storage: M2_2~5 support Intel Optane Memory; Storage: Supports Intel Smart Response Technology for Intel; Storage: Core processors; Storage: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage; RAID: devices; RAID: Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2; RAID: NVMe storage devices; USB: Intel Z690 Chipset; USB: 1x USB3.2 Gen2x2 20Gbps Type-C port on the back; USB: panel; USB: 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on; USB: the back panel, 1 Type-C available through the internal; USB: connector), USB: 2x USB 3.2 Gen 1 5Gbps ports available through the; USB: internal connector; USB: 4 USB 2.0 ports on the back panel; USB: USB Hub-GL850G; USB: 4x USB 2.0 ports available through internal connectors; Audio: Realtek ALC4080 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Intel I225V 2.5Gbps LAN controller; WiFi & Bluetooth: Intel Wi-Fi 6E; WiFi & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; WiFi & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps; WiFi & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; WiFi & Bluetooth: Supports Bluetooth 5.3, FIPS, FISMA; WiFi & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; WiFi & Bluetooth: Bluetooth 5.3 will be ready in WIN10 21H1 and Windows11.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 5x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C connector; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2; Internal connectors: USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 Type-A connectors (supports additional 4 USB; Internal connectors: 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector, Internal connectors: 6x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x TPM module connector; Internal connectors: 1x TBT connector (supports RTD3); Internal connectors: 1x Tuning Controller connector; LED Feature: 1x EZ LED Control switch; LED Feature: 4x EZ Debug LED; LED Feature: 1x 2-Digit Debug Code LED; LED Feature: 1x 4-pin RGB LED connector; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 1x 3-pin CORSAIR LED connector; Back panel ports: USB 2.0; Back panel ports: DisplayPort; Back panel ports: 2.5G LAN; Back panel ports: Wi-Fi/Bluetooth; Back panel ports: Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: HDMI; Back panel ports: USB 3.2 Gen 2 10Gbps Type-A; Back panel ports: USB 3.2 Gen 2x2 20Gbps Type-C; Back panel ports: Optical S/PDIF Out; Dimensions: ATX Form Factor; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Mounting: 9 mounting holes; Operating System: Support for Windows 11 64-bit, Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
