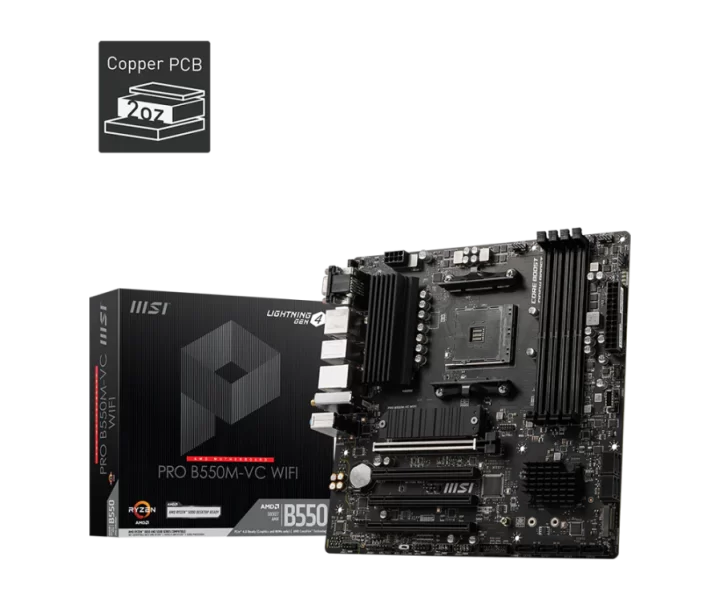

PRO B550M-VC WIFI özellikleri ve fiyatları

PRO B550M-VC WIFI teknik özellikleri

Model kodu

PRO B550M-VC WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4x DDR4 memory slots, up to 128GB DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ

Bellek hızı ve uyumluluk koşulları

DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe 3.0/ 4.0 x16 slot (PCI_E1); 3x PCIe 3.0 x16 slots, support PCIe x1 speed; The supported specification depends on installed processor.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

8

M.2 uyumluluğu ve şerit paylaşımı

ASMedia AM1064 Chipset; 4x SATA 6Gb/s ports (SATA5~8 fromASM1064); AMD B550 Chipset; 4x SATA 6Gb/s ports (SATA1~4 from PCH); 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices; The supported specification depends on installed processor.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); AMD Processor; 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8RTL8111GN / RTL8111HN 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8RTL8111GN / RTL8111HN 1Gbps LAN controller

Ses yongası

Realtek ALC892/ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 8x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connector; 1x 3-pin RAINBOW LED connector; 1xTPM module connector; 1x Clear CMOS jumper

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors

Fan bağlantısı sayısı

5

RGB aydınlatma bağlantısı sayısı

2

Arka panel bağlantıları

VGA; USB3.2 Gen 2 10Gbps Type-A; Keyboard / Mouse; LAN port; WiFi/Bluetooth; Audio connector; Flash BIOS Button; DisplayPort; HDMI; USB 2.0; USB3.2 Gen1 5Gbps Type-A

Görüntü çıkışları ve kullanım koşulları

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Maximum shared memory of 16 GB; Available for the processor with integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

TPM güvenlik modülü bağlantısı

1xTPM module connector

Wi-Fi

AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.; Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2

Boyutlar

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update; CPU: See supported processors; Chipset: AMD B550 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Memory: Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; Memory: 1DPC 1R max speed 4400 MHZ; Memory: 1DPC 2R max speed 3733 MHZ; Memory: 2DPC 1R max speed 3866 MHZ; Memory: 2DPC 2R max speed 3466 MHZ; Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1); Expansion Slot: 3x PCIe 3.0 x16 slots, support PCIe x1 speed; Expansion Slot: The supported specification depends on installed processor.; Onboard Graphics: 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz; Onboard Graphics: 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; Onboard Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz; Onboard Graphics: Maximum shared memory of 16 GB; Onboard Graphics: Available for the processor with integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed., Storage: ASMedia AM1064 Chipset; Storage: 4x SATA 6Gb/s ports (SATA5~8 fromASM1064); Storage: AMD B550 Chipset; Storage: 4x SATA 6Gb/s ports (SATA1~4 from PCH); Storage: 2x M.2 slots (Key M); Storage: M2_1 slot (from AMD Processor); Storage: Supports PCIe 4.0/ 3.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: M2_2 slot (from AMD B550 chipset); Storage: Supports PCIe 3.0x4; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: The supported specification depends on installed processor.; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; USB: AMD B550 Chipset; USB: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); USB: AMD Processor; USB: 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel; USB: 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel; Audio: Realtek ALC892/ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Realtek 8RTL8111GN / RTL8111HN 1Gbps LAN controller; Wireless LAN & Bluetooth: AMD Wi-Fi 6E; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps, Wireless LAN & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2 , FIPS, FISMA; Wireless LAN & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.; Wireless LAN & Bluetooth: Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 8x SATA 6Gb/s connectors; Internal connectors: 2x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 3x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x 4-pin RGB LED connector; Internal connectors: 1x 3-pin RAINBOW LED connector; Internal connectors: 1xTPM module connector; Internal connectors: 1x Clear CMOS jumper; Back panel ports: VGA; Back panel ports: USB3.2 Gen 2 10Gbps Type-A; Back panel ports: Keyboard / Mouse; Back panel ports: LAN port; Back panel ports: WiFi/Bluetooth, Back panel ports: Audio connector; Back panel ports: Flash BIOS Button; Back panel ports: DisplayPort; Back panel ports: HDMI; Back panel ports: USB 2.0; Back panel ports: USB3.2 Gen1 5Gbps Type-A; Dimensions: Micro-ATX Form Factor; Dimensions: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); MOUNTING: 8 mounting holes; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
