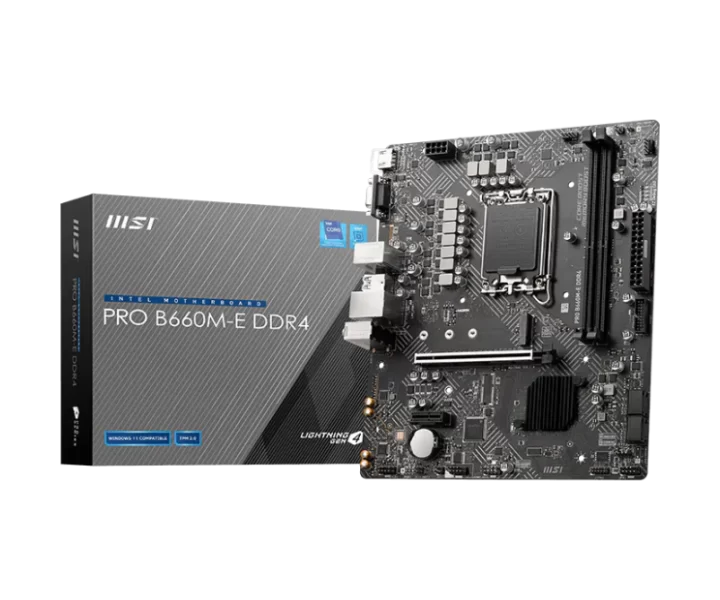

PRO B660M-E DDR4 özellikleri ve fiyatları

PRO B660M-E DDR4 teknik özellikleri

Model kodu

PRO B660M-E DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B660

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz; 1DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From B660 chipset); Supports PCIe 3.0 x1

PCIe sürümü

PCIe 4.0 / PCIe 3.0

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports (From B660chipset); SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; 1x M.2 slot (Key M, from B660 chipset); Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Support Intel Optane Memory; Supports Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA; storage devices

USB bağlantısı

Intel B660 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Intel I219V 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I219V 1Gbps LAN controller

Ses yongası

Realtek ALC892/ ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio

Arka panel bağlantıları

HDMI; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz /; Available only on processors featuring integrated graphics; Graphics specifications may vary depending on the CPU installed.

Boyutlar

9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

Depolama için M.2 yuvası sayısı

1

Fan bağlantısı sayısı

2

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to www.msi.com to get the newest support status as new processors; Processor: are released.; Processor: See supported; Processor: processors; Chipset: Intel B660 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Memory: Max overclocking frequency:; Memory: 1DPC 1R Max speed up to 4600+ MHz; Memory: 1DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer to www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot (From CPU); Expansion Slot: Supports up to PCIe 4.0 x16; Expansion Slot: 1x PCIe x1 slot (From B660 chipset); Expansion Slot: Supports PCIe 3.0 x1; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; Onboard Graphics: 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz /; Onboard Graphics: Available only on processors featuring integrated graphics; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; SATA Ports: 4x SATA 6Gb/s ports (From B660chipset); SATA Ports: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot., M.2 SSD Slot: 1x M.2 slot (Key M, from B660 chipset); M.2 SSD Slot: Supports up to PCIe 3.0 x4; M.2 SSD Slot: Supports up to SATA 6Gb/s; M.2 SSD Slot: Supports 2242/ 2260/ 2280 storage devices; M.2 SSD Slot: Support Intel Optane Memory; M.2 SSD Slot: Supports Intel Smart Response Technology for Intel Core processors; M.2 SSD Slot: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA; RAID: storage devices; Audio: Realtek ALC892/ ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Intel I219V 1Gbps LAN controller; Power Connectors: 1x 24-pin ATX main power connector; Power Connectors: 1x 8-pin ATX 12V power connector; USB: Intel B660 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); USB: 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector); Fan Connectors: 1x 4-pin CPU fan connector; Fan Connectors: 1x 4-pin system fan connector; System Connectors: 1x Front panel audio connector; System Connectors: 2x System panel connectors; System Connectors: 1x Chassis Intrusion connector; System Connectors: 1x TPM module connector; System Connectors: 1x Serial port connector; Jumpers: 1x Clear CMOS jumper; LED Features: 4x EZ Debug LED; Back panel ports: HDMI; Back panel ports: VGA; Back panel ports: Keyboard / Mouse, Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: LAN port; Back panel ports: Audio connector; Back panel ports: USB 2.0; Dimensions: M-ATX Form Factor; Dimensions: 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm); Box content: MSI does not guarantee the risks or damages caused; Box content: by changing the cover.; Box content: These pictures are for reference only and may vary without; Box content: notice.
