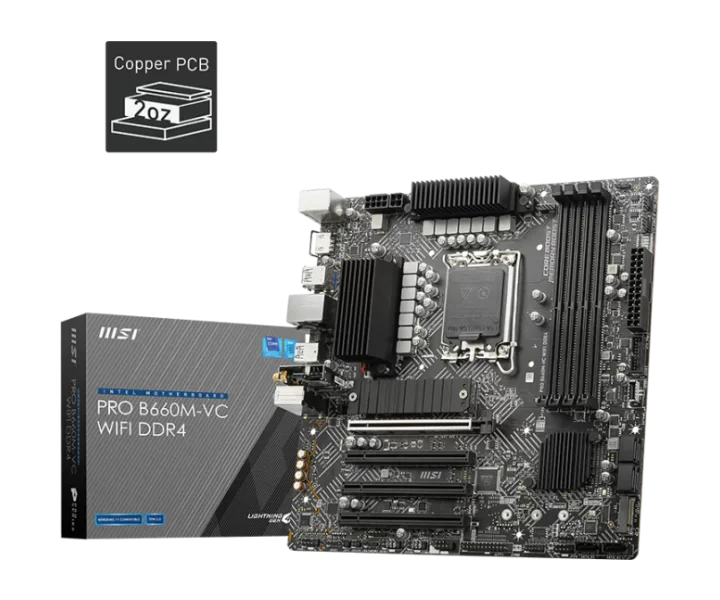

PRO B660M-VC WIFI DDR4 özellikleri ve fiyatları

PRO B660M-VC WIFI DDR4 teknik özellikleri

Model kodu

PRO B660M-VC WIFI DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B660

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4000+ MHz; 2DPC 1R Max speed up to 4000+ MHz; 2DPC 2R Max speed up to 3600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

4x PCIe x16 slots; PCI_E1 (From CPU); Support PCIe 4.0 x16; PCI_E2 ~4 (From B660 chipset); Support PCIe 3.0 x1

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset); 2x SATA 6Gb/s ports (SATA_A1 & SATA_B1, from; Asmedia ASM1061); 2x M.2 slots (Key M); M2_1 slot (From CPU); Supports PCIe 4.0 x4; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (From B660 chipset); Supports PCIe 4.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready for M2_2 slot; Support Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for; SATA storage devices; SATA_A1 & SATA_B1 do not support RAID function.

USB bağlantısı

Intel B660 Chipset; 2x USB 3.2 Gen 2 10Gbps (Type-A+Type-C) ports on the back panel; 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports and 1 Type-C port available through the internal USB connectors); 6x USB 2.0 ports (2 Type-A ports on the back panel and 4 ports available through the internal USB connectors); Asmedia ASM1074; 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Kablolu ağ bağlantısı

1x Realtek 8125BG 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek 8125BG 2.5Gbps LAN controller

Ses yongası

Realtek ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec; 7.1-Channel High Definition Audio

Arka panel bağlantıları

Keyboard / Mouse; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); Wi-Fi / Bluetooth; Audio Connectors; USB 2.0; HDMI; USB 3.2 Gen 2 10Gbps (Type-C)

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Boyutlar

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Wi-Fi

Intel Wi-Fi 6; The Wireless module is pre-installed in the M.2; (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz); up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2

Bluetooth sürümü

5.2

Fan bağlantısı sayısı

4

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 2x 4-pin system fan connectors

RGB aydınlatma bağlantısı sayısı

3

Üreticinin ayrıntılı teknik bilgileri

CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; CPU: Processor socket LGA1700; CPU: See; CPU: supported processors; CPU: Please go to www.msi.com to get the newest support status as new processors are released.; Chipset: Intel B660 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Memory: Max overclocking frequency:; Memory: 1DPC 1R Max speed up to 5333+ MHz; Memory: 1DPC 2R Max speed up to 4000+ MHz; Memory: 2DPC 1R Max speed up to 4000+ MHz; Memory: 2DPC 2R Max speed up to 3600+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memoryy; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer to www.msi.com for more information on compatible memory.; Memory: See; Memory: supported memory; Expansion Slot: 4x PCIe x16 slots; Expansion Slot: PCI_E1 (From CPU); Expansion Slot: Support PCIe 4.0 x16; Expansion Slot: PCI_E2 ~4 (From B660 chipset); Expansion Slot: Support PCIe 3.0 x1; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Audio: Realtek ALC897 Codec; Audio: 7.1-Channel High Definition Audio; Storage: 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset); Storage: 2x SATA 6Gb/s ports (SATA_A1 & SATA_B1, from, Storage: Asmedia ASM1061); Storage: 2x M.2 slots (Key M); Storage: M2_1 slot (From CPU); Storage: Supports PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: M2_2 slot (From B660 chipset); Storage: Supports PCIe 4.0 x4; Storage: Supports SATA 6Gb/s; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory Ready for M2_2 slot; Storage: Support Intel Smart Response Technology for Intel Core processors; Storage: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for; RAID: SATA storage devices; RAID: SATA_A1 & SATA_B1 do not support RAID function.; LAN: 1x Realtek 8125BG 2.5Gbps LAN controller; Wi-Fi & Bluetooth: Intel Wi-Fi 6; Wi-Fi & Bluetooth: The Wireless module is pre-installed in the M.2; Wi-Fi & Bluetooth: (Key-E) slot; Wi-Fi & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz); Wi-Fi & Bluetooth: up to 2.4Gbps; Wi-Fi & Bluetooth: Supports 802.11 a/ b/ g/ n/ ac/ ax; Wi-Fi & Bluetooth: Supports Bluetooth 5.2; USB: Intel B660 Chipset; USB: 2x USB 3.2 Gen 2 10Gbps (Type-A+Type-C) ports on the back panel; USB: 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports and 1 Type-C port available through the internal USB connectors); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel and 4 ports available through the internal USB connectors); USB: Asmedia ASM1074; USB: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, Internal Connectors: 1x 24-pin ATX main power connector; Internal Connectors: 1x 8-pin ATX 12V power connector; Internal Connectors: 1x 4-pin ATX 12V power connector; Internal Connectors: 6x SATA 6Gb/s connectors; Internal Connectors: 2x M.2 slots (M-Key); Internal Connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port; Internal Connectors: 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports); Internal Connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal Connectors: 1x 4-pin CPU fan connector; Internal Connectors: 1x 4-pin water-pump fan connector; Internal Connectors: 2x 4-pin system fan connectors; Internal Connectors: 1x Front panel audio connector; Internal Connectors: 2x System panel connectors; Internal Connectors: 1x Parallel port connector; Internal Connectors: 1x Serial port connector; Internal Connectors: 1x Chassis Intrusion connector; Internal Connectors: 1x Clear CMOS jumper; Internal Connectors: 1x TPM module connector; Internal Connectors: 1x Tuning controller connector; LED Features: 1x 4-pin RGB LED connector; LED Features: 2x 3-pin RAINBOW LED connectors; LED Features: 4x EZ Debug LED; Back panel ports: Keyboard / Mouse; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: 2.5G LAN; Back panel ports: USB 3.2 Gen 2 10Gbps (Type-A); Back panel ports: Wi-Fi / Bluetooth; Back panel ports: Audio Connectors; Back panel ports: USB 2.0; Back panel ports: HDMI, Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Back panel ports: USB 3.2 Gen 2 10Gbps (Type-C); Dimensions: Micro-ATX Form Factor; Dimensions: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); Box content: MSI does not guarantee the risks or damages caused by; Box content: changing the cover.; Box content: These pictures are for reference only and may vary without notice.
