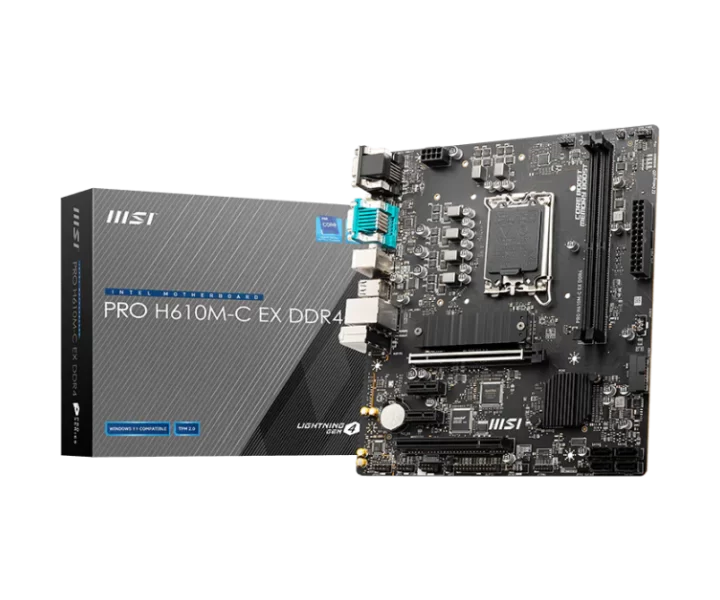

PRO H610M-C EX DDR4 özellikleri ve fiyatları

PRO H610M-C EX DDR4 teknik özellikleri

Model kodu

PRO H610M-C EX DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot; ▪ PCI_E1 (from CPU; Support up to PCIe 4.0 for 12th Gen Intel CPU; 2x PCIe x1 slots (from H610 chipset); Support up to PCIe 3.0; 1x PCI slot (from H610 chipset)

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

Intel H610 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M) (M2_1 slot); Supports up to PCIe 3.0 x 4; Supports 2242/ 2260/ 2280 storage devices; *SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280

M.2 bağlantı anahtarı

M-Key

USB bağlantısı

Intel H610 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the; back panel, and 2 Type-A ports available through the; internal connectors); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4; Type-A ports available through the internal connectors)

Kablolu ağ bağlantısı

1x Realtek RTL8111H 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8111H 1Gbps LAN controller

Ses yongası

Realtek ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec 7.1-Channel High Definition Audi

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connector (support additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x front panel audio connector; 2x system panel connectors; 1x parallel port connector; 1x serial port connector; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connecto

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

2

Arka panel bağlantıları

VGA; COM Port; Mouse; LAN Port; Audio Connectors; DVI-D; DisplayPort; HDMI; Keyboard; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A)

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz; 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; 1x DVI-D port, supporting a maximum resolution of 1920x1200 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

TPM güvenlik modülü bağlantısı

1x TPM module connecto

Boyutlar

9.6 in. x 8.7 in. (24.4 cm x 22 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to msi.com to get the newest support status as new processors are; Processor: released.; Processor: See supported processors; Chipset: Intel H610 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot; Expansion Slot: ▪ PCI_E1 (from CPU; Expansion Slot: Support up to PCIe 4.0 for 12th Gen Intel CPU; Expansion Slot: 2x PCIe x1 slots (from H610 chipset); Expansion Slot: Support up to PCIe 3.0; Expansion Slot: 1x PCI slot (from H610 chipset); Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz; Onboard Graphics: 1x DisplayPort 1.4 port, supporting a maximum resolution; Onboard Graphics: of 4K 60Hz; Onboard Graphics: 1x VGA port, supporting a maximum resolution of; Onboard Graphics: 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; Onboard Graphics: 1x DVI-D port, supporting a maximum resolution of; Onboard Graphics: 1920x1200 60Hz; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed., Storage: Intel H610 Chipset; Storage: 4x SATA 6Gb/s ports; Storage: 1x M.2 slot (Key M) (M2_1 slot); Storage: Supports up to PCIe 3.0 x 4; Storage: Supports 2242/ 2260/ 2280 storage devices; Storage: *SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot; LAN: 1x Realtek RTL8111H 1Gbps LAN controller; USB: Intel H610 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the; USB: back panel, and 2 Type-A ports available through the; USB: internal connectors); USB: 6x USB 2.0 ports (2 Type-A ports on the back panel, 4; USB: Type-A ports available through the internal connectors); Audio: Realtek ALC897 Codec; Audio: 7.1-Channel High Definition Audi; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 8-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 1x USB 3.2 Gen 1 5Gbps connector (support additional 2; Internal connectors: USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connector (support additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x front panel audio connector; Internal connectors: 2x system panel connectors; Internal connectors: 1x parallel port connector; Internal connectors: 1x serial port connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Clear CMOS jumper; Internal connectors: 1x TPM module connecto, Back panel ports: VGA; Back panel ports: COM Port; Back panel ports: Mouse; Back panel ports: LAN Port; Back panel ports: Audio Connectors; Back panel ports: DVI-D; Back panel ports: DisplayPort; Back panel ports: HDMI; Back panel ports: Keyboard; Back panel ports: USB 2.0; Back panel ports: USB 3.2 Gen 1 5Gbps (Type-A); Dimensions: mATX Form Factor; Dimensions: 9.6 in. x 8.7 in. (24.4 cm x 22 cm); Mounting: 6 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
