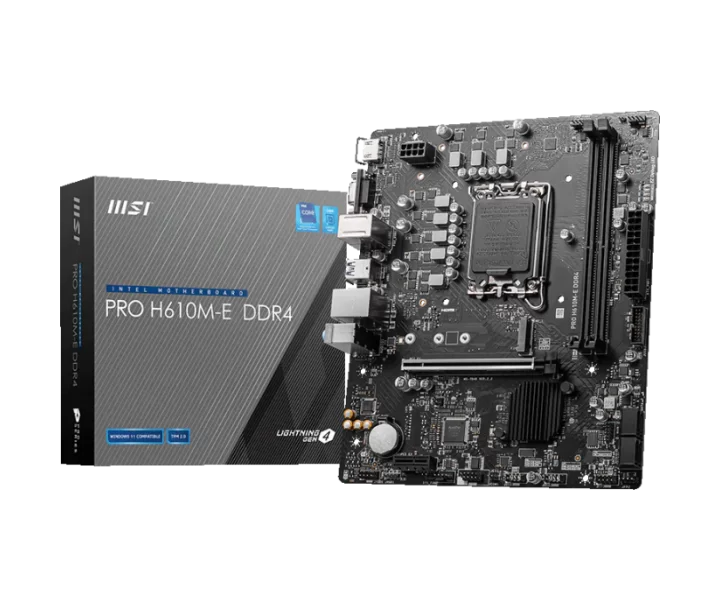

PRO H610M-E DDR4 özellikleri ve fiyatları

PRO H610M-E DDR4 teknik özellikleri

Model kodu

PRO H610M-E DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1

PCIe sürümü

PCIe 4.0 / PCIe 3.0

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from H610 chipset); Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices

Kablolu ağ bağlantısı

1x Realtek RTL8111H 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Realtek RTL8111H 1Gbps LAN controller

Ses yongası

Realtek ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec; 7.1-Channel High Definition Audio

Arka panel bağlantıları

HDMI; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0

Görüntü çıkışları ve kullanım koşulları

1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz /; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz /; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Boyutlar

9.3 in. x 7.9 in. (23.6 cm x 20 cm)

USB bağlantısı

1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports

Depolama için M.2 yuvası sayısı

1

Fan bağlantısı sayısı

3

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 2x 4-pin system fan connectors

RGB aydınlatma bağlantısı sayısı

1

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to www.msi.com to get the newest support status as new processors are released.; Processor: See supported; Processor: processors; Chipset: Intel H610 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot (From CPU); Expansion Slot: Supports up to PCIe 4.0 x16; Expansion Slot: 1x PCIe x1 slot (From H610 chipset); Expansion Slot: Supports PCIe 3.0 x1; Onboard Graphics: 1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz; Onboard Graphics: /; Onboard Graphics: 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz /; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; SATA Ports: 4x SATA 6Gb/s ports (From H610 chipset); M.2 SSD Slot: 1x M.2 slot (Key M) (from H610 chipset); M.2 SSD Slot: Supports up to PCIe 3.0 x4; M.2 SSD Slot: Supports up to SATA 6Gb/s; M.2 SSD Slot: Supports 2242/ 2260/ 2280 storage devices; Audio: Realtek ALC897 Codec, Audio: 7.1-Channel High Definition Audio; LAN: 1x Realtek RTL8111H 1Gbps LAN controller; Power Connectors: 1x 24-pin ATX main power connector; Power Connectors: 1x 8-pin +12V power connector; Internal USB Connectors: 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Internal USB Connectors: Supports additional 2 USB 3.2 Gen 1 5Gbps ports; Internal USB Connectors: 2x USB 2.0 Type-A connectors (From Hub-GL850G); Internal USB Connectors: Supports additional 4 USB 2.0 ports; Fan Connectors: 1x 4-pin CPU fan connector; Fan Connectors: 2x 4-pin system fan connectors; System Connectors: 1x Front panel audio connector; System Connectors: 2x System panel connectors; System Connectors: 1x Chassis Intrusion connector; System Connectors: 1x TPM module connector; System Connectors: 1x Serial port connector; Jumpers: 1x Clear CMOS jumper; LED Features: 1x 4-pin RGB LED connector; LED Features: 4x EZ Debug LED; Back panel ports: HDMI; Back panel ports: VGA; Back panel ports: Keyboard / Mouse; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: LAN port; Back panel ports: Audio connector; Back panel ports: USB 2.0; Dimensions: M-ATX Form Factor; Dimensions: 9.3 in. x 7.9 in. (23.6 cm x 20 cm); Box content: MSI does not guarantee the risks or damages caused; Box content: by changing the cover.; Box content: These pictures are for reference only and may vary without; Box content: notice.
