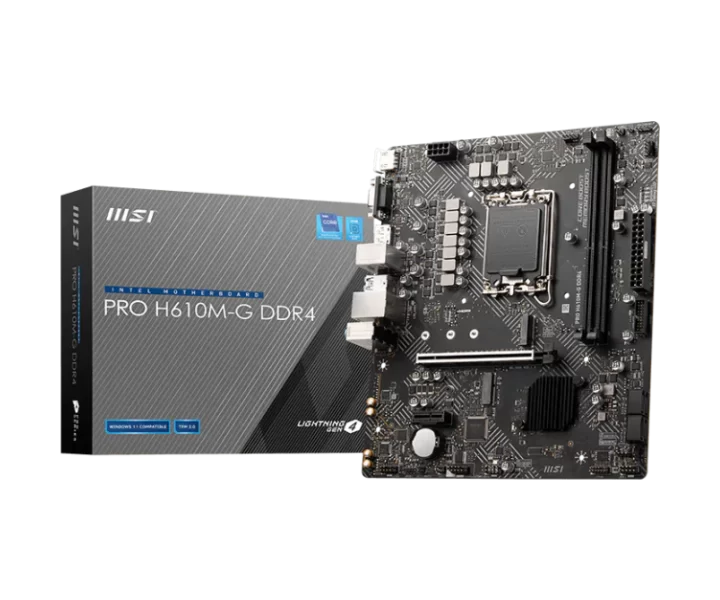

PRO H610M-G DDR4 özellikleri ve fiyatları

PRO H610M-G DDR4 teknik özellikleri

Model kodu

PRO H610M-G DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1; 1x M.2 slot with E-key for PCIe WiFi module only (M2_; WIFI1)

PCIe sürümü

PCIe 4.0 / PCIe 3.0

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports; * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; 1x M.2 slot (Key M, from chipset); Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel Smart Response Technology for Intel; Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB bağlantısı

Intel H610 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Intel I219V 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I219V 1Gbps LAN controller

Ses yongası

Realtek ALC892/ ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio

Arka panel bağlantıları

HDMI; VGA; DisplayPort; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Boyutlar

9.61 x 8.31 in. (24.4 cm x 21.1 cm)

Depolama için M.2 yuvası sayısı

1

Fan bağlantısı sayısı

2

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

RGB aydınlatma bağlantısı sayısı

3

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to www.msi.com to get the newest support status as new processors; Processor: are released.; Processor: See supported; Processor: processors; Chipset: Intel H610 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible; Memory: memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot (From CPU); Expansion Slot: Supports up to PCIe 4.0 x16; Expansion Slot: 1x PCIe x1 slot; Expansion Slot: Supports PCIe 3.0 x1; Expansion Slot: 1x M.2 slot with E-key for PCIe WiFi module only (M2_; Expansion Slot: WIFI1); Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K; Onboard Graphics: 60Hz; Onboard Graphics: 1x VGA port, supports a maximum resolution of; Onboard Graphics: 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; Onboard Graphics: x DisplayPort 1.4 port, supports a maximum resolution; Onboard Graphics: of 4K 60Hz; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; SATA Ports: 4x SATA 6Gb/s ports, SATA Ports: * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; M.2 SSD Slot: 1x M.2 slot (Key M, from chipset); M.2 SSD Slot: Supports up to PCIe 3.0 x4; M.2 SSD Slot: Supports up to SATA 6Gb/s; M.2 SSD Slot: Supports 2242/ 2260/ 2280 storage devices; M.2 SSD Slot: Supports Intel Smart Response Technology for Intel; M.2 SSD Slot: Core processors; M.2 SSD Slot: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot; USB: Intel H610 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); USB: 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector); Audio: Realtek ALC892/ ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Intel I219V 1Gbps LAN controller; Power Connectors: 1x 24-pin ATX main power connector; Power Connectors: 1x 8-pin ATX 12V power connector; Fan Connectors: 1x 4-pin CPU fan connector; Fan Connectors: 1x 4-pin system fan connector; System Connectors: 1x Front panel audio connector; System Connectors: 2x System panel connectors; System Connectors: 1x Chassis Intrusion connector; System Connectors: 1x TPM module connector; System Connectors: 1x Serial port connector; Jumpers: 1x Clear CMOS jumper; LED Features: 1x 4-pin RGB LED connector; LED Features: 2x 3-pin RAINBOW LED connectors; LED Features: 4x EZ Debug LED; Back panel ports: HDMI; Back panel ports: VGA, Back panel ports: DisplayPort; Back panel ports: Keyboard/Mouse; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: LAN port; Back panel ports: Audio connector; Back panel ports: USB 2.0; Dimensions: mATX Form Factor; Dimensions: 9.61 x 8.31 in. (24.4 cm x 21.1 cm); Operating System: Support for Windows 11 64-bit; Box content: MSI does not guarantee the risks or damages caused; Box content: by changing the cover.; Box content: These pictures are for reference only and may vary without; Box content: notice.
