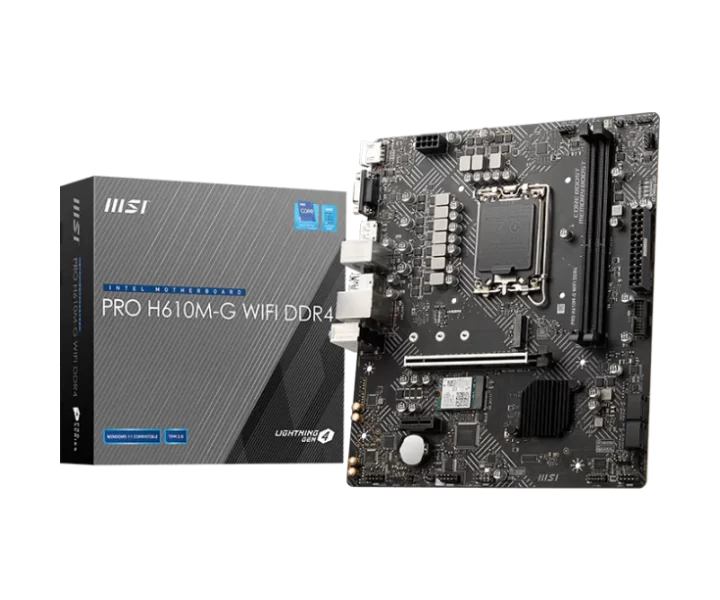

PRO H610M-G WIFI DDR4 özellikleri ve fiyatları

PRO H610M-G WIFI DDR4 teknik özellikleri

Model kodu

PRO H610M-G WIFI DDR4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1700; Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1

PCIe sürümü

PCIe 4.0 / PCIe 3.0

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

4x SATA 6Gb/s ports; * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; 1x M.2 slot (Key M, from chipset); Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel Smart Response Technology for Intel; Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB bağlantısı

Intel H610 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Kablolu ağ bağlantısı

1x Intel I219V 1Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I219V 1Gbps LAN controller

Ses yongası

Realtek ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897 Codec; 7.1-Channel High Definition Audio

Arka panel bağlantıları

HDMI; VGA; DisplayPort; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

Wi-Fi

Wi-Fi 5; Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps; Supports Bluetooth 4.2

Wi-Fi standardı

Wi-Fi 5

Bluetooth sürümü

4.2

Boyutlar

9.61 x 8.31 in. (24.4 cm x 21.1 cm)

Depolama için M.2 yuvası sayısı

1

Fan bağlantısı sayısı

2

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

RGB aydınlatma bağlantısı sayısı

3

Üreticinin ayrıntılı teknik bilgileri

Processor: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; Processor: Processor socket LGA1700; Processor: Please go to www.msi.com to get the newest support status as new processors; Processor: are released.; Processor: See supported; Processor: processors; Chipset: Intel H610 Chipset; Memory: 2x DDR4 memory slots, support up to 64GB; Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Memory: Supports Dual-Channel mode; Memory: Supports non-ECC, un-buffered memory; Memory: Please refer to www.msi.com for more information on compatible; Memory: memory.; Memory: See supported memory; Expansion Slot: 1x PCIe x16 slot (From CPU); Expansion Slot: Supports up to PCIe 4.0 x16; Expansion Slot: 1x PCIe x1 slot; Expansion Slot: Supports PCIe 3.0 x1; Wireless LAN & Bluetooth: Wi-Fi 5; Wireless LAN & Bluetooth: Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps; Wireless LAN & Bluetooth: Supports Bluetooth 4.2; Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K; Onboard Graphics: 60Hz; Onboard Graphics: 1x VGA port, supports a maximum resolution of; Onboard Graphics: 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; Onboard Graphics: x DisplayPort 1.4 port, supports a maximum resolution; Onboard Graphics: of 4K 60Hz; Onboard Graphics: Available only on processors featuring integrated graphics.; Onboard Graphics: Graphics specifications may vary depending on the CPU installed., SATA Ports: 4x SATA 6Gb/s ports; SATA Ports: * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.; M.2 SSD Slot: 1x M.2 slot (Key M, from chipset); M.2 SSD Slot: Supports up to PCIe 3.0 x4; M.2 SSD Slot: Supports up to SATA 6Gb/s; M.2 SSD Slot: Supports 2242/ 2260/ 2280 storage devices; M.2 SSD Slot: Supports Intel Smart Response Technology for Intel; M.2 SSD Slot: Core processors; M.2 SSD Slot: SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot; USB: Intel H610 Chipset; USB: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); USB: 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector); Audio: Realtek ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1x Intel I219V 1Gbps LAN controller; Power Connectors: 1x 24-pin ATX main power connector; Power Connectors: 1x 8-pin ATX 12V power connector; Fan Connectors: 1x 4-pin CPU fan connector; Fan Connectors: 1x 4-pin system fan connector; System Connectors: 1x Front panel audio connector; System Connectors: 2x System panel connectors; System Connectors: 1x Chassis Intrusion connector; System Connectors: 1x TPM module connector; System Connectors: 1x Serial port connector; Jumpers: 1x Clear CMOS jumper; LED Features: 1x 4-pin RGB LED connector; LED Features: 2x 3-pin RAINBOW LED connectors; LED Features: 4x EZ Debug LED; Back panel ports: HDMI, Back panel ports: VGA; Back panel ports: DisplayPort; Back panel ports: Keyboard/Mouse; Back panel ports: USB 3.2 Gen 1 5Gbps Type-A; Back panel ports: LAN port; Back panel ports: Audio connector; Back panel ports: USB 2.0; Dimensions: mATX Form Factor; Dimensions: 9.61 x 8.31 in. (24.4 cm x 21.1 cm); Operating System: Support for Windows 11 64-bit; Box content: MSI does not guarantee the risks or damages caused; Box content: by changing the cover.; Box content: These pictures are for reference only and may vary without; Box content: notice.
