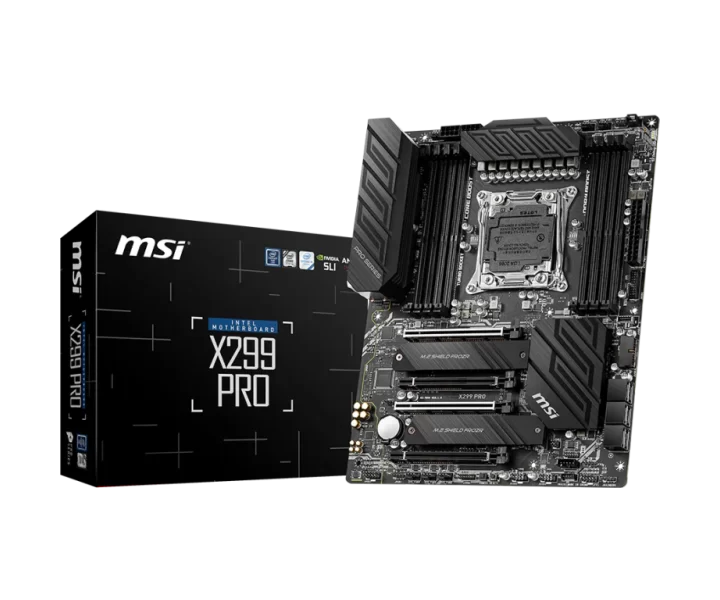

X299 PRO özellikleri ve fiyatları

X299 PRO teknik özellikleri

Model kodu

X299 PRO

İşlemci soketi

LGA2066

Anakart yonga seti

Intel X299

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket LGA2066; Intel Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066;

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

Desteklenen bellek yapılandırmaları

8 x DDR4 memory slots, up to 256GB DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz; Intel Extreme Memory Profile (XMP)

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

Intel X299 Chipset; 6 x SATA 6Gb/s ports; 2 x M.2 slot (Key M); Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; Intel Optane Memory Ready; The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.; The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.; The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.; M2_2 supports Intel Optane Memory by switching to PCH lanes.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Intel X299 Chipset; Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB bağlantısı

ASMedia ASM3242 Chipset; 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel; ASMedia ASM3142 Chipset; 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector; Intel X299 Chipset; 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors); 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Kablolu ağ bağlantısı

1 x Intel I219-V Gigabit LAN controller; 1 x Realtek RTL8125-CG 2.5G LAN controller; I219 LAN doesn’t support G3 to S5 Wake

Kablolu ağ denetleyicisi

1 x Intel I219-V Gigabit LAN controller; 1 x Realtek RTL8125-CG 2.5G LAN controller; I219 LAN doesn’t support G3 to S5 Wake

Ses yongası

Realtek ALC1220 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1 x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports); 1x USB 3.2 Gen2 Type-C port; 1x 4-pin CPU fan connector; 1x 4-pin Water Pump connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Virtual RAID on CPU connector; 1x Thunderbolt Add-on Card Connector

Güç bağlantıları

1 x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin Water Pump connector; 4x 4-pin system fan connectors

Fan bağlantısı sayısı

6

Arka panel bağlantıları

Keyboard / Mouse; Gigabit LAN; 2.5G LAN; Audio Connectors; USB 2.0; Clear CMOS Button; USB 3.2 Gen1 Type-A; USB 3.2 Gen2x2 20G Type-C; Optical S/PDIF out

BIOS özellikleri

Clear CMOS Button

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

PCIe yuvaları

4x PCIe 3.0 x16 slots; Support x16/x8/x16/x8 mode with the 48-lane CPU.; Support x16/x4/x16/x8 mode with the 44-lane CPU.; Support x16/x4/x8/x0 mode with the 28-lane CPU.; Please refer to user manual for PCIe 3.0 bandwidth table.

PCIe sürümü

PCIe 3.0

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports Intel Core X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066; Processor: See supported processors; Chipset: Intel X299 Chipset; Memory: 8 x DDR4 memory slots, support up to 256GB; Memory: Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz; Memory: Quad channel memory architecture; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Supports non-ECC UDIMM memory; Memory: Supports un-buffered memory; Memory: For the latest information about memory, please visit http://www.msi.com; Memory: Please refer the DIMM Slots section for more details.; Memory: See supported memory; Slots: 4x PCIe 3.0 x16 slots; Slots: Support x16/x8/x16/x8 mode with the 48-lane CPU.; Slots: Support x16/x4/x16/x8 mode with the 44-lane CPU.; Slots: Support x16/x4/x8/x0 mode with the 28-lane CPU.; Slots: Please refer to user manual for PCIe 3.0 bandwidth table.; Multi-GPU: Supports 3-Way NVIDIA SLI Technology; Multi-GPU: Supports 3-Way AMD CrossFire Technology; Storage: Intel X299 Chipset; Storage: 6 x SATA 6Gb/s ports; Storage: 2 x M.2 slot (Key M); Storage: Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; Storage: Intel Optane Memory Ready; Storage: The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot., Storage: The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.; Storage: The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.; Storage: M2_2 supports Intel Optane Memory by switching to PCH lanes.; RAID: Intel X299 Chipset; RAID: Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 PCIe storage devices; USB: ASMedia ASM3242 Chipset; USB: 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel; USB: ASMedia ASM3142 Chipset; USB: 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector; USB: Intel X299 Chipset; USB: 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors); USB: 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors); Audio: Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1 x Intel I219-V Gigabit LAN controller; LAN: 1 x Realtek RTL8125-CG 2.5G LAN controller; LAN: I219 LAN doesn’t support G3 to S5 Wake; Internal connectors: 1 x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 6x SATA 6Gb/s connectors, Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports); Internal connectors: 1x USB 3.2 Gen2 Type-C port; Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin Water Pump connector; Internal connectors: 4x 4-pin system fan connectors; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Virtual RAID on CPU connector; Internal connectors: 1x Thunderbolt Add-on Card Connector; Back panel ports: Keyboard / Mouse; Back panel ports: Gigabit LAN; Back panel ports: 2.5G LAN; Back panel ports: Audio Connectors; Back panel ports: USB 2.0; Back panel ports: Clear CMOS Button; Back panel ports: USB 2.0; Back panel ports: USB 3.2 Gen1 Type-A; Back panel ports: USB 3.2 Gen1 Type-A; Back panel ports: USB 3.2 Gen2x2 20G Type-C; Back panel ports: Optical S/PDIF out; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Dimensions: ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
