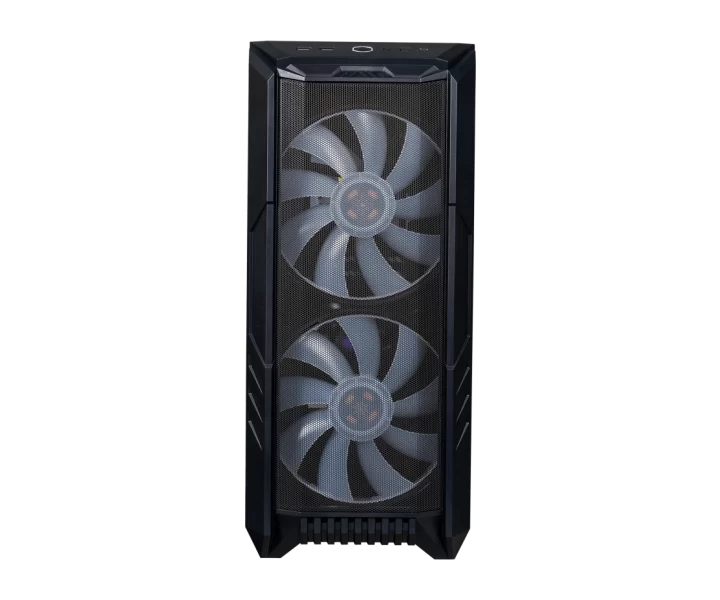

Cooler Master HAF 500 özellikleri ve fiyatları

Cooler Master HAF 500 teknik özellikleri

Model kodu

H500-KGNN-S00

part Number

H500-KGNN-S00

case Form Factor

Mid Tower

motherboard Support

Motherboard Support: ITX, M-ATX, ATX, SSI CEB, E-ATX* (*up to 12"x14.1", may impact cable management and case features)

Boyutlar

Dimensions (L x W x H): 516 x 224 x 510mm (incl. Protrusions)

panel Materials

Materials - Exterior: Steel, Mesh, Plastic; Materials - Left Side Panel: Tempered Glass, Steel

side Panel Material

Materials - Left Side Panel: Tempered Glass, Steel

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2 type C; I/O Panel - Audio In / Out: 1x single Audio jack; I/O Panel - Other: 1x ARGB Hub

included Fans

Pre-installed Fans - Front: 2x 200mm ARGB Fan; Pre-installed Fans - Rear: 1x 120mm SickleFlow PWM ARGB; Pre-installed Fans - Top on HDD cage: 1x 120mm SickleFlow PWM

fan Mounts

Fan Support - Top: 3x 120mm / 2x 140mm / 2x 200mm; Fan Support - Front: 3x 120mm / 2x 140mm / 2x 200mm (*200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness); Fan Support - Rear: 1x 120mm; Fan Support - Top on HDD cage: 1x 120mm

radiator Support

Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm; Radiator Support - Front: 120 / 140 / 200 / 240 / 280 / 360mm; Radiator Support - Rear: 120mm

drive Bays

2.5" / 3.5" Drive Bays (Combo): 2; 2.5" Drive Bays: 2

dust Filters

Dust Filters: Top, Bottom

psu Support

Power Supply Support: Bottom Mount, ATX

clearance Conditions

Clearance - CPU Cooler: 167mm/6.5"; Clearance - PSU: 180mm/7.1"; Clearance - GFX: 410mm/16.1"

Garanti

Warranty: 2 years

case Features

Cable Routing - Behind Motherboard Tray: 30mm

expansion Slots

7

Üreticinin ayrıntılı teknik bilgileri

Model Number: HAF 500: H500-KGNN-S00, HAF 500 White: H500-WGNN-S00, Exterior Color: HAF 500: Black, HAF 500 White: White, Materials - Exterior: Steel, Mesh, Plastic, Materials - Left Side Panel: Tempered Glass, Steel, Dimensions (L x W x H): 516 x 224 x 510mm (incl. Protrusions), Motherboard Support: ITX, M-ATX, ATX, SSI CEB, E-ATX* (*up to 12"x14.1", may impact cable management and case features), Expansion Slots: 7, 5.25" Drive Bays: N/A, 2.5" / 3.5" Drive Bays (Combo): 2, 2.5" Drive Bays: 2, I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2 type C, I/O Panel - Audio In / Out: 1x single Audio jack, I/O Panel - Other: 1x ARGB Hub, Pre-installed Fans - Front: 2x 200mm ARGB Fan, Pre-installed Fans - Rear: 1x 120mm SickleFlow PWM ARGB, Pre-installed Fans - Top on HDD cage: 1x 120mm SickleFlow PWM, Fan Support - Top: 3x 120mm / 2x 140mm / 2x 200mm, Fan Support - Front: 3x 120mm / 2x 140mm / 2x 200mm (*200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness), Fan Support - Rear: 1x 120mm, Fan Support - Top on HDD cage: 1x 120mm, Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm, Radiator Support - Front: 120 / 140 / 200 / 240 / 280 / 360mm, Radiator Support - Rear: 120mm, Clearance - CPU Cooler: 167mm/6.5", Clearance - PSU: 180mm/7.1", Clearance - GFX: 410mm/16.1", Cable Routing - Behind Motherboard Tray: 30mm, Dust Filters: Top, Bottom, Power Supply Support: Bottom Mount, ATX, Warranty: 2 years, Size: Mid Tower, Series: HAF Series
