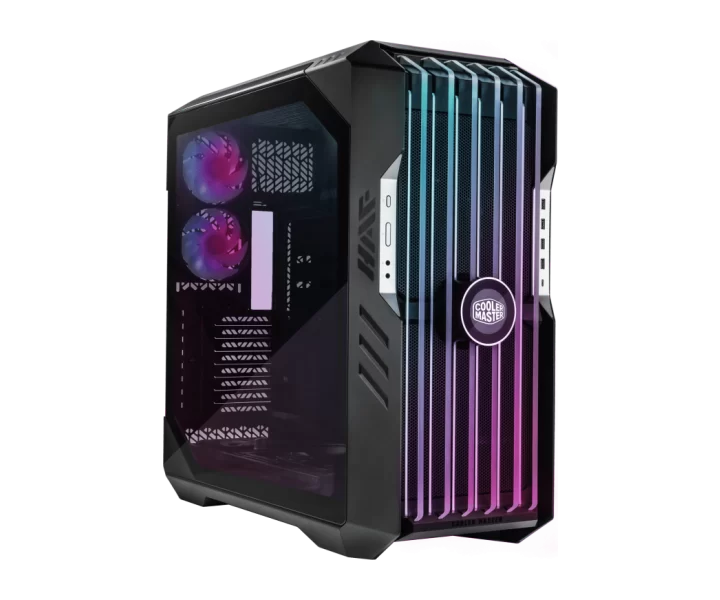

Cooler Master HAF 700 EVO özellikleri ve fiyatları

Cooler Master HAF 700 EVO teknik özellikleri

Model kodu

H700E-IGNN-S00

part Number

H700E-IGNN-S00

case Form Factor

Full Tower

motherboard Support

Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB

Boyutlar

Dimensions (L x W x H): 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)

panel Materials

Materials - Exterior: Mesh, Steel, Plastic; Materials - Left Side Panel: Tempered Glass, Steel

side Panel Material

Materials - Left Side Panel: Tempered Glass, Steel

front Io

I/O Panel - USB Ports: 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0); I/O Panel - Audio In / Out: 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack; I/O Panel - Other: 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub

included Fans

Pre-installed Fans - Front: HAF 700 EVO: 2x SickleFlow PWM Performance Ed. 200mm, HAF 700 EVO White: 2x SickleFlow White PWM Performance Ed. ARGB 200mm; Pre-installed Fans - Rear: HAF 700 EVO: 2x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 2x SickleFlow White PWM ARGB 120mm; Pre-installed Fans - Bottom: HAF 700 EVO: 1x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 1x SickleFlow White PWM ARGB 120mm

fan Mounts

Fan Support - Top: 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket); Fan Support - Front: 2x 200mm, 3x 120/140mm; Fan Support - Rear: 2x 120mm; Fan Support - Bottom: 3x 120/140mm; Fan Support - Side: 4x 120mm / 3x 140mm

radiator Support

Radiator Support - Top: Up to 2x 360mm / 1x 420mm; Radiator Support - Front: Up to 420/360mm; Radiator Support - Rear: Up to 240mm; Radiator Support - Bottom: Up to 420/360mm; Radiator Support - Side: Up to 480/420mm

drive Bays

2.5" / 3.5" Drive Bays (Combo): 12; 2.5" Drive Bays: 12

dust Filters

Dust Filters: Front, Bottom, Side

psu Support

Power Supply Support: Bottom Mount, ATX

clearance Conditions

Clearance - CPU Cooler: 166mm / 6.53"; Clearance - PSU: 200mm / 7.87"; Clearance - GFX: 490mm / 19.29"

Garanti

Warranty: 2 years

Kutu içeriği

Included Accessories: HAF 700 EVO: Vertical Graphics Card Holder V3 (Include 165mm PCIe 4.0 Riser Cable), HAF 700 EVO White: Universal Graphics Card Holder Kit V3 White

case Features

Cable Routing - Behind Motherboard Tray: 90-101mm; Note: * For regular 30mm thick radiators, for thicker please reference user manual.

expansion Slots

8

Üreticinin ayrıntılı teknik bilgileri

Model Number: HAF 700 EVO: H700E-IGNN-S00, HAF 700 EVO White: H700E-WGNN-S00, Exterior Color: HAF 700 EVO: Titanium Grey, HAF 700 EVO White: White, Materials - Exterior: Mesh, Steel, Plastic, Materials - Left Side Panel: Tempered Glass, Steel, Dimensions (L x W x H): 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions), Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB, Expansion Slots: 8, 5.25" Drive Bays: N/A, 2.5" / 3.5" Drive Bays (Combo): 12, 2.5" Drive Bays: 12, I/O Panel - USB Ports: 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0), I/O Panel - Audio In / Out: 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack, I/O Panel - Other: 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub, Pre-installed Fans - Front: HAF 700 EVO: 2x SickleFlow PWM Performance Ed. 200mm, HAF 700 EVO White: 2x SickleFlow White PWM Performance Ed. ARGB 200mm, Pre-installed Fans - Rear: HAF 700 EVO: 2x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 2x SickleFlow White PWM ARGB 120mm, Pre-installed Fans - Bottom: HAF 700 EVO: 1x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 1x SickleFlow White PWM ARGB 120mm, Fan Support - Top: 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket), Fan Support - Front: 2x 200mm, 3x 120/140mm, Fan Support - Rear: 2x 120mm, Fan Support - Bottom: 3x 120/140mm, Fan Support - Side: 4x 120mm / 3x 140mm, Radiator Support - Top: Up to 2x 360mm / 1x 420mm, Radiator Support - Front: Up to 420/360mm, Radiator Support - Rear: Up to 240mm, Radiator Support - Bottom: Up to 420/360mm, Radiator Support - Side: Up to 480/420mm, Clearance - CPU Cooler: 166mm / 6.53", Clearance - PSU: 200mm / 7.87", Clearance - GFX: 490mm / 19.29", Cable Routing - Behind Motherboard Tray: 90-101mm, Included Accessories: HAF 700 EVO: Vertical Graphics Card Holder V3 (Include 165mm PCIe 4.0 Riser Cable), HAF 700 EVO White: Universal Graphics Card Holder Kit V3 White, Dust Filters: Front, Bottom, Side, Power Supply Support: Bottom Mount, ATX, Warranty: 2 years, Size: Full Tower, Series: HAF Series, Note: * For regular 30mm thick radiators, for thicker please reference user manual.
