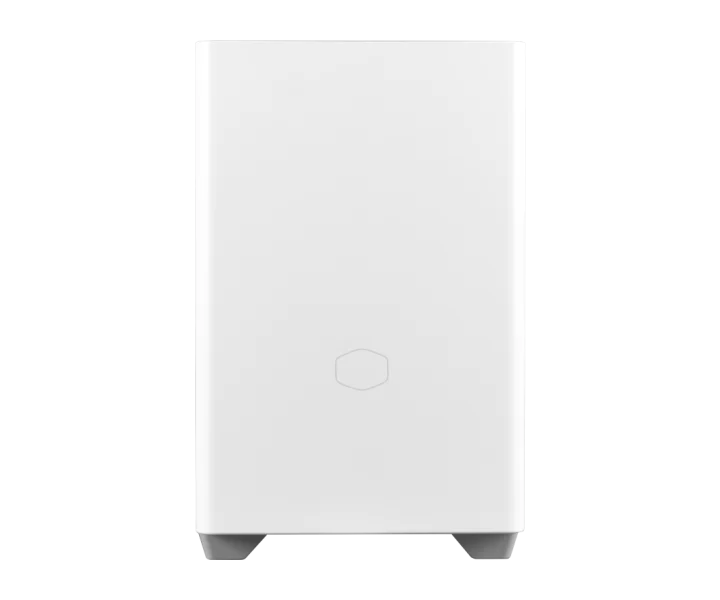

Cooler Master MasterBox NR200 özellikleri ve fiyatları

Cooler Master MasterBox NR200 teknik özellikleri

Model kodu

MCB-NR200-WNNN-S00

part Number

MCB-NR200-WNNN-S00

case Form Factor

Mini ITX

motherboard Support

Motherboard Support: Mini DTX; Motherboard Support: Mini ITX; Motherboard Support: Max MB size: 244 x 226mm (L x H)

Boyutlar

Dimensions (L x W x H): 376 x 185 x 292mm incl. Protrusions; Dimensions (L x W x H): 360 x 185 x 274mm excl. Protrusions

panel Materials

Materials: Steel; Materials: Plastic; Materials: Mesh

front Io

I/O Panel: 2x USB 3.2 Gen 1 Type-A; I/O Panel: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Top: 1x 120mm 650-1800RPM PWM (SickleFlow); Pre-installed Fans - Rear: 1x 92mm 650-2300RPM PWM (SickleFlow)

fan Mounts

Fan Support - Side: 2x 120/140mm; Fan Support - Rear: 1x 92mm; Fan Support - Bottom: 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots); Fan Support - Top: 2x 120mm

radiator Support

Radiator Support - Bottom: 120mm; Radiator Support - Side: 120mm; Radiator Support - Side: 140mm; Radiator Support - Bottom: 240mm; Radiator Support - Rear: 92mm (Not Compatible with Vertical GPU Installation); Radiator Support - Side: 240mm; Radiator Support - Side: 280mm; Radiator Support - Side: (not compatible with vertical GPU installation); Radiator Support - Bottom: (recommended for custom loops only)

drive Bays

2.5" / 3.5" Drive Bays (Combo): 1; 5.25" Drive Bays: 0; 3.5" Drive Bays: 1 (Max. 2); 2.5" Drive Bays: 2 (Max. 3)

dust Filters

Dust Filters: Top; Dust Filters: Bottom; Dust Filters: Left side; Dust Filters: Right side

psu Support

Power Supply Support: SFX; Power Supply Support: SFX-L

clearance Conditions

Clearance - CPU Cooler: 155mm; Clearance - PSU: 130mm; Clearance - CPU Cooler: 76mm (GPU in vertical position); Clearance - GFX: L: 330mm (incl. power connector); Clearance - GFX: H: 156mm (incl. power connector); Clearance - GFX: W: 60mm (triple slot)

Garanti

Warranty: 2 years

case Features

Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position

expansion Slots

3

psu Max Length Mm

130

Ağırlık

4800 g

Üreticinin ayrıntılı teknik bilgileri

Materials: Steel, Radiator Support - Bottom: 120mm, Dust Filters: Top, 2.5" / 3.5" Drive Bays (Combo): 1, Radiator Support - Side: 120mm, Radiator Support - Side: 140mm, Warranty: 2 years, 5.25" Drive Bays: 0, Materials: Plastic, Color(s): Black, Series: MasterBox Series, Pre-installed Fans - Bottom: N/A, Fan Support - Side: 2x 120/140mm, Color(s): White, Radiator Support - Bottom: 240mm, Dust Filters: Bottom, Radiator Support - Rear: 92mm (Not Compatible with Vertical GPU Installation), Radiator Support - Side: 240mm, Radiator Support - Side: 280mm, Pre-installed Fans - Top: 1x 120mm 650-1800RPM PWM (SickleFlow), Size: Mini ITX, Dust Filters: Left side, Volume: 18.25L (exlc. Protrusions), Dust Filters: Right side, Radiator Support - Side: (not compatible with vertical GPU installation), Radiator Support - Bottom: (recommended for custom loops only), Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, Fan Support - Rear: 1x 92mm, Fan Support - Bottom: 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots), Motherboard Support: Mini DTX, Materials: Mesh, Motherboard Support: Mini ITX, Expansion Slots: 3, Pre-installed Fans - Rear: 1x 92mm 650-2300RPM PWM (SickleFlow), Fan Support - Top: 2x 120mm, Motherboard Support: Max MB size: 244 x 226mm (L x H), Radiator Support - Top: N/A, I/O Panel: 2x USB 3.2 Gen 1 Type-A, Pre-installed Fans - Front: N/A, Clearance - CPU Cooler: 155mm, Clearance - PSU: 130mm, Clearance - CPU Cooler: 76mm (GPU in vertical position), Power Supply Support: SFX, Power Supply Support: SFX-L, I/O Panel: 1x 3.5mm Headset Jack (Audio+Mic), 3.5" Drive Bays: 1 (Max. 2), Clearance - GFX: L: 330mm (incl. power connector), Clearance - GFX: H: 156mm (incl. power connector), Clearance - GFX: W: 60mm (triple slot), Weight: 4.8 kg, 2.5" Drive Bays: 2 (Max. 3), Dimensions (L x W x H): 376 x 185 x 292mm incl. Protrusions, Dimensions (L x W x H): 360 x 185 x 274mm excl. Protrusions, Model Number: MCB-NR200-WNNN-S00, Model Number: MCB-NR200-KNNN-S00
