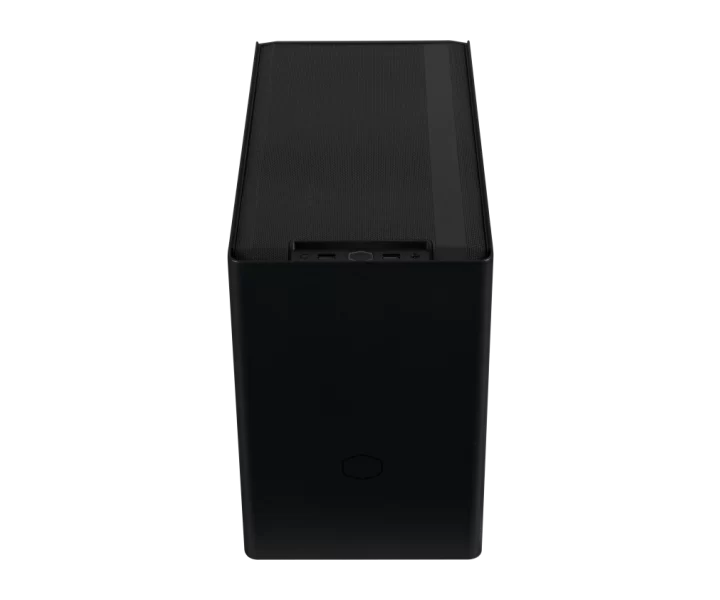

Cooler Master MasterBox NR200P özellikleri ve fiyatları

Cooler Master MasterBox NR200P teknik özellikleri

Model kodu

MCB-NR200P-KGNN-S00

part Number

MCB-NR200P-KGNN-S00

case Form Factor

Mini ITX

motherboard Support

Motherboard Support: Mini-ITX, Mini-DTX, Max. size: 244 x 226mm

Boyutlar

Dimensions (L x W x H): 376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

panel Materials

Materials - Exterior: SGCC Steel, Mesh, ABS Plastic; Materials - Left Side Panel: Tempered Glass x1, Steel x1

side Panel Material

Materials - Left Side Panel: Tempered Glass x1, Steel x1

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0); I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Top: 2x 120mm 650-1800RPM PWM (SickleFlow)

fan Mounts

Fan Support - Top: 2x 120mm; Fan Support - Side: 2x 120/140mm; Fan Support - Rear: 1x 92mm; Fan Support - Bottom: 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

radiator Support

Radiator Support - Left side: 120 / 140 / 240 / 280mm (not compatible with vertical GPU installation); Radiator Support - Rear: 92mm (Not Compatible with Vertical GPU Installation); Radiator Support - Bottom: 120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)

drive Bays

5.25" Drive Bays: 0; 3.5" Drive Bays: 1 (Max. 2); 2.5" / 3.5" Drive Bays (Combo): 1; 2.5" Drive Bays: 2 (Max. 3)

dust Filters

Dust Filters: Bottom, Left, Right, Top Panels

psu Support

Power Supply Support: SFX, SFX-L

clearance Conditions

Clearance - CPU Cooler: 155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position); Clearance - PSU: 130mm; Clearance - GFX: L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

Garanti

Warranty: 2 years

Kutu içeriği

Accessories: 1x PCIe 3.0 x16 riser cable

case Features

Note: This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.; Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position

expansion Slots

3

psu Max Length Mm

130

Üreticinin ayrıntılı teknik bilgileri

Model Number: MasterBox NR200P: MCB-NR200P-KGNN-S00, MasterBox NR200P White: MCB-NR200P-WGNN-S00, Exterior Color: Black, White / Grey, Materials - Exterior: SGCC Steel, Mesh, ABS Plastic, Materials - Left Side Panel: Tempered Glass x1, Steel x1, Dimensions (L x W x H): 376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions), Volume: 18.25L (exlc. Protrusions), Motherboard Support: Mini-ITX, Mini-DTX, Max. size: 244 x 226mm, Expansion Slots: 3, 5.25" Drive Bays: 0, 3.5" Drive Bays: 1 (Max. 2), 2.5" / 3.5" Drive Bays (Combo): 1, 2.5" Drive Bays: 2 (Max. 3), I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic), Accessories: 1x PCIe 3.0 x16 riser cable, Pre-installed Fans - Top: 2x 120mm 650-1800RPM PWM (SickleFlow), Pre-installed Fans - Front: N/A, Pre-installed Fans - Rear: N/A, Pre-installed Fans - Bottom: N/A, Fan Support - Top: 2x 120mm, Fan Support - Side: 2x 120/140mm, Fan Support - Rear: 1x 92mm, Fan Support - Bottom: 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots), Radiator Support - Top: N/A, Radiator Support - Left side: 120 / 140 / 240 / 280mm (not compatible with vertical GPU installation), Radiator Support - Rear: 92mm (Not Compatible with Vertical GPU Installation), Radiator Support - Bottom: 120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs), Clearance - CPU Cooler: 155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position), Clearance - PSU: 130mm, Clearance - GFX: L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot), Dust Filters: Bottom, Left, Right, Top Panels, Power Supply Support: SFX, SFX-L, Warranty: 2 years, Size: Mini ITX, Series: MasterBox Series, Note: This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation., Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
