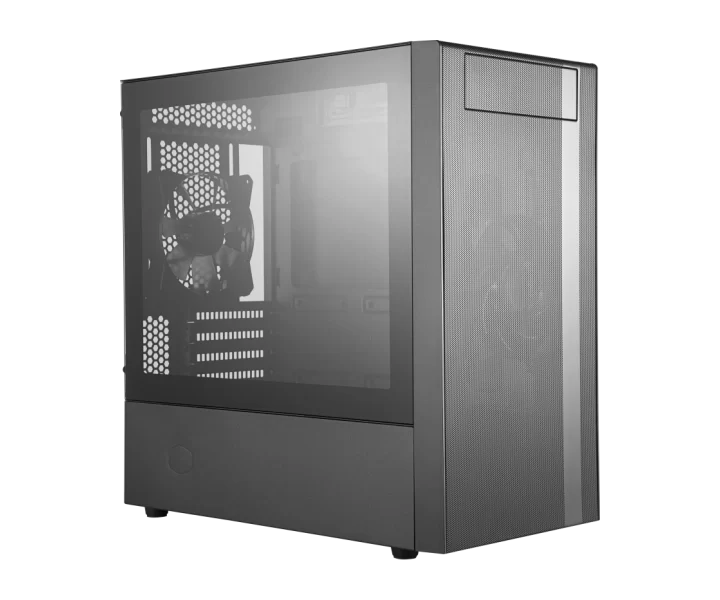

Cooler Master MasterBox NR400 with ODD özellikleri ve fiyatları

Cooler Master MasterBox NR400 with ODD teknik özellikleri

Model kodu

MCB-NR400-KG5N-S00

part Number

MCB-NR400-KG5N-S00

case Form Factor

Mini Tower

motherboard Support

Motherboard Support: Mini-ITX, Micro-ATX

Boyutlar

Dimensions (L x W x H): 411 (L) x 210 (W) x 411 (H) mm

panel Materials

Materials - Body: Steel, Plastic; Materials - Side Panel: Tempered Glass

side Panel Material

Materials - Side Panel: Tempered Glass

front Io

I/O Panel - USB Ports: 2x USB 3.0; I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Front: 1x 120mm; Pre-installed Fans - Rear: 1x 120mm

fan Mounts

Fan Support - Front: 2x 120/140mm; Fan Support - Top: 1x 120/140mm; Fan Support - Rear: 1x 120mm

radiator Support

Radiator Support - Front: 120 / 140 / 240 / 280mm (may interfere with HDD mounted below ODD); Radiator Support - Top: 120mm; Radiator Support - Rear: 120mm

drive Bays

5.25" Drive Bays: 1; 3.5" Drive Bays: 4; 2.5" Drive Bays: 4

dust Filters

Dust Filters: Top, Bottom

psu Support

Power Supply Support: Bottom Mount, ATX PS2

clearance Conditions

Clearance - CPU Cooler: 166mm; Clearance - PSU: 325mm max (w/o front radiator & HDD cage), 140mm (HDD cage in backmost position); Clearance - GFX: 346mm

case Features

Cable Routing - Behind Motherboard Tray: 22mm

expansion Slots

4

gpu Max Length Mm

346

cpu Cooler Max Height Mm

166

Üreticinin ayrıntılı teknik bilgileri

Model Number: MCB-NR400-KG5N-S00, Exterior Color: Black, Materials - Body: Steel, Plastic, Materials - Side Panel: Tempered Glass, Dimensions (L x W x H): 411 (L) x 210 (W) x 411 (H) mm, Motherboard Support: Mini-ITX, Micro-ATX, Expansion Slots: 4, 5.25" Drive Bays: 1, 3.5" Drive Bays: 4, 2.5" Drive Bays: 4, I/O Panel - USB Ports: 2x USB 3.0, I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic), Pre-installed Fans - Front: 1x 120mm, Pre-installed Fans - Rear: 1x 120mm, Fan Support - Front: 2x 120/140mm, Fan Support - Top: 1x 120/140mm, Fan Support - Rear: 1x 120mm, Radiator Support - Front: 120 / 140 / 240 / 280mm (may interfere with HDD mounted below ODD), Radiator Support - Top: 120mm, Radiator Support - Rear: 120mm, Clearance - CPU Cooler: 166mm, Clearance - PSU: 325mm max (w/o front radiator & HDD cage), 140mm (HDD cage in backmost position), Clearance - GFX: 346mm, Cable Routing - Behind Motherboard Tray: 22mm, Dust Filters: Top, Bottom, Power Supply Support: Bottom Mount, ATX PS2, Size: Mini Tower, Series: MasterBox Series, Back Connector Motherboard Support: No
