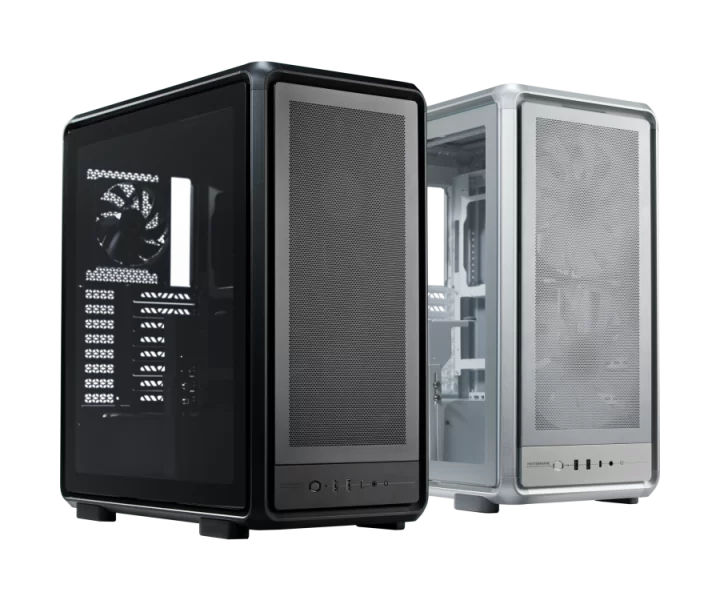

Cooler Master MasterFrame 500 Mesh özellikleri ve fiyatları

Cooler Master MasterFrame 500 Mesh teknik özellikleri

Model kodu

MF500M-KHNN-S01

part Number

MF500M-KHNN-S01

case Form Factor

Mid Tower

motherboard Support

Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support)

Boyutlar

Dimensions (L x W x H): 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions)

panel Materials

Materials - Exterior: SGCC Steel, Aluminum; Materials - Side panel (Right / Left): Tempered Glass

side Panel Material

Materials - Side panel (Right / Left): Tempered Glass

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C; I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm; Pre-installed Fans - Rear: ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm

fan Mounts

Fan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm; Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm; Fan Support - Rear: 1x 120mm; Fan Support - Bottom: 1x 120mm

radiator Support

Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm; Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm; Radiator Support - Rear: 120 mm

drive Bays

3.5" Drive Bays: 0; 2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom); Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD): 1x 2.5 or 1x 3.5

dust Filters

Dust Filters: Mesh Only (Removable Filters)

psu Support

Power Supply Support: ATX

clearance Conditions

Clearance - CPU Cooler: 190 mm; Clearance - PSU: 235 mm; Clearance - Graphics Card: 390 mm

Garanti

Warranty: 2 years

Kutu içeriği

Included Accessories: GPU Support Bracket

case Features

Cable Routing - Behind Motherboard Tray: 43 mm

expansion Slots

8

gpu Max Length Mm

390

cpu Cooler Max Height Mm

190

psu Max Length Mm

235

Üreticinin ayrıntılı teknik bilgileri

Model Number: Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB), Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB), Color(s): Black / Silver, Materials - Exterior: SGCC Steel, Aluminum, Materials - Side panel (Right / Left): Tempered Glass, Dimensions (L x W x H): 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions), Volume: 60.9 L (Excl. Protrusions), Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support), Power Supply Support: ATX, PCI Expansion Slots: 8, 3.5" Drive Bays: 0, 2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom), Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD): 1x 2.5 or 1x 3.5, I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C, I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic), Pre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm, Pre-installed Fans - Rear: ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm, Fan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, Fan Support - Rear: 1x 120mm, Fan Support - Bottom: 1x 120mm, Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm, Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm, Radiator Support - Rear: 120 mm, Dust Filters: Mesh Only (Removable Filters), Clearance - CPU Cooler: 190 mm, Clearance - PSU: 235 mm, Clearance - Graphics Card: 390 mm, Included Accessories: GPU Support Bracket, Cable Routing - Behind Motherboard Tray: 43 mm, Warranty: 2 years, Size: Mid Tower, Series: MasterFrame Series
