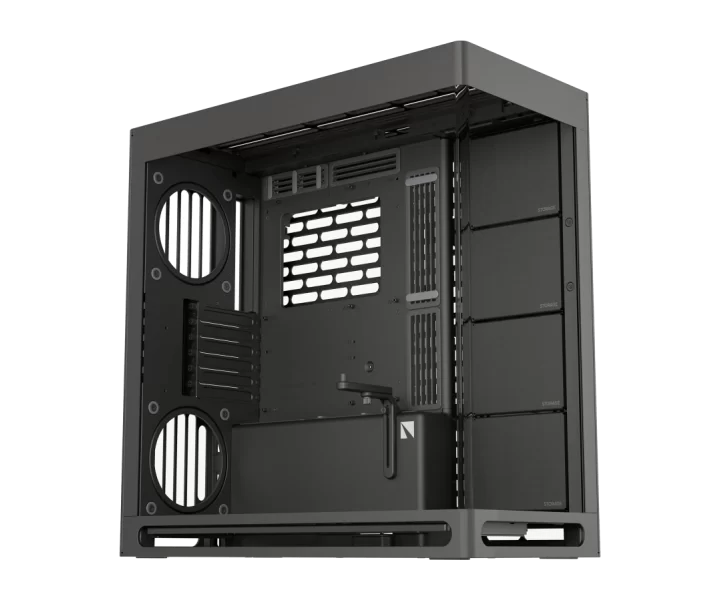

HAVN HS 420 Black HVN-CA-HS420-06 özellikleri ve fiyatları

HAVN HS 420 Black HVN-CA-HS420-06 teknik özellikleri

Model kodu

HVN-CA-HS420-06

part Number

HVN-CA-HS420-06

case Form Factor

Mid Tower

motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Boyutlar

541 x 259.5 x 547 mm

panel Materials

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

Ağırlık

17840 g

color

Black

front Io

USB 3.2 Gen 2 Type-C x1; USB 3.2 Gen 1 Type-A x2; Audio Jack x1; Power & Reset Button x1

Garanti

1 year; ; Notice; Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.; Please review our full warranty terms for more information.

fan Mounts

Maximum Amount: 11; Top: 3 x 120 / 3 x 140 mm; Right: 3 x 120 / 3 x 140 mm; Bottom: 3 x 120 / 3 x 140 mm; Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

fan Capacity

11

fan Controller

Fan Ports: 2 x PWM repeaters, 12 ports total; Location: 1 x Cable Management Tray; 1 x PSU Shroud; Fan Connectors: 6 ports per repeater x 4-pin PWM ; ; (Connect your primary fan to the white port to control PWM signal.; All other ports mirror the white port's signal.); Fan Rated Voltage: 12V; Fan Safety Current: Up to 2.6A across 6 ports; Power Connector: 1 x SATA Power; Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

radiator Support

Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM); Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO); Bottom: 280 / 360 / 420 mm (Thickness: 120 mm); Width: Up to 145 mm

drive Bays

Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''; Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' ; Storage Bay Included: 4x

psu Support

ATX; Length: Up to 220mm (Clearance - 290mm)

psu Form Factor

ATX

dust Filters

Bottom: 1 (Removable); Top: 1 (Built-in); Right: 1 (Built-in); Rear Bottom: 1 (Removable)

psu Max Length Mm

220

gpu Max Length Mm

480

cpu Cooler Max Height Mm

185

clearance Conditions

CPU Tower Cooler Clearance: Height: Up to 185 mm. Liquid cooling recommended.; Graphics Card Clearance: Length: Up to 480 mm; Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.; RAM Clearance: If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm; Motherboard Support: E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

expansion Slots

6

Üreticinin ayrıntılı teknik bilgileri

Form Factor: Mid Tower, Material: SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets, PC Case Dimensions (L x W x H): 541 x 259.5 x 547 mm, Net Weight: 17.84 kg, Warranty: 1 year; ; Notice; Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.; Please review our full warranty terms for more information., Front I/O: USB 3.2 Gen 2 Type-C x1; USB 3.2 Gen 1 Type-A x2; Audio Jack x1; Power & Reset Button x1, Motherboard Support: E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX, Expansion Slots: 6, Fan Support: Maximum Amount: 11; Top: 3 x 120 / 3 x 140 mm; Right: 3 x 120 / 3 x 140 mm; Bottom: 3 x 120 / 3 x 140 mm; Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm), Fan PWM Repeater: Fan Ports: 2 x PWM repeaters, 12 ports total; Location: 1 x Cable Management Tray; 1 x PSU Shroud; Fan Connectors: 6 ports per repeater x 4-pin PWM ; ; (Connect your primary fan to the white port to control PWM signal.; All other ports mirror the white port's signal.); Fan Rated Voltage: 12V; Fan Safety Current: Up to 2.6A across 6 ports; Power Connector: 1 x SATA Power; Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max), CPU Tower Cooler Clearance: Height: Up to 185 mm. Liquid cooling recommended., Liquid Cooling Support: Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM); Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO); Bottom: 280 / 360 / 420 mm (Thickness: 120 mm); Width: Up to 145 mm, Graphics Card Clearance: Length: Up to 480 mm; Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended., GPU Support: 2 - 5 Slots, RAM Clearance: If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm, Power Supply Support: ATX; Length: Up to 220mm (Clearance - 290mm), Storage: Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''; Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' ; Storage Bay Included: 4x, Internal Display Support: VESA Mounting: 75 x 75 mm / 100 x 100 mm; Display Size: 14 in. (Max); Location: Front Right Pillar, Dust Filter: Bottom: 1 (Removable); Top: 1 (Built-in); Right: 1 (Built-in); Rear Bottom: 1 (Removable)

Güncel mağaza teklifleri

Gaming.Gen.TR · Satıcı: Gaming.Gen.TR · 10.799,00 TL · Kargo bedeli doğrulanmadı · Son gözlem: 2026-10-24 16:08:02 UTC
