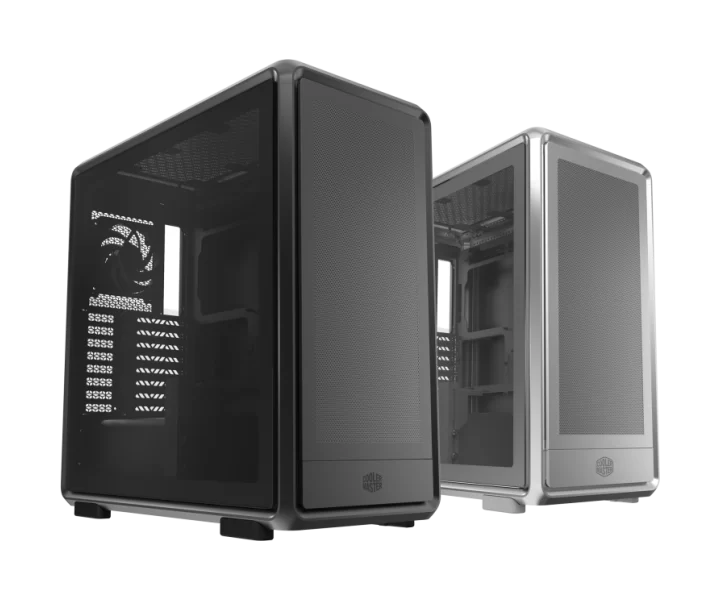

Cooler Master MasterFrame 600 Mesh özellikleri ve fiyatları

Cooler Master MasterFrame 600 Mesh teknik özellikleri

Model kodu

MF600M-KGNN-S01

part Number

MF600M-KGNN-S01

case Form Factor

Mid Tower

motherboard Support

Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support)

Boyutlar

Dimensions (L x W x H): 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)

panel Materials

Materials - Exterior: SGCC Steel, Aluminum; Materials - Side panel (Right / Left): Tempered Glass / Aluminum

side Panel Material

Materials - Side panel (Right / Left): Tempered Glass / Aluminum

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C; I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Front: 2x SickleFlow 200 ARGB; Pre-installed Fans - Rear: 1x SickleFlow 120 ARGB

fan Mounts

Fan Support - Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm; Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm; Fan Support - Rear: 1x 120mm; Fan Support - Side: 3x 120mm, 3x 140mm

radiator Support

Radiator Support - Front: 120 / 140 / 240 / 280 / 360 / 420 mm; Radiator Support - Top: 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel); Radiator Support - Rear: 120 mm; Radiator Support - Side: 240 / 280 / 360 / 420 mm

drive Bays

5.25" Drive Bays: 0; 3.5" Drive Bays: 0; 2.5" / 3.5" Drive Bays (Combo): 2; 2.5" Drive Bays: 3

dust Filters

Dust Filters: Top, Front, Bottom, Right side panel

psu Support

Power Supply Support: ATX

clearance Conditions

Clearance - CPU Cooler: 190 mm; Clearance - PSU: 235 mm; Clearance - Graphics Card: L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)

Garanti

Warranty: 2 years

Kutu içeriği

Included Accessories: GPU Support Bracket / ARGB PWM Hub

case Features

Cable Routing - Behind Motherboard Tray: 43 mm

expansion Slots

8

cpu Cooler Max Height Mm

190

psu Max Length Mm

235

Üreticinin ayrıntılı teknik bilgileri

Model Number: Black: MF600M-KGNN-S01, Silver: MF600M-SGNN-S01, Color(s): Black / Silver, Materials - Exterior: SGCC Steel, Aluminum, Materials - Side panel (Right / Left): Tempered Glass / Aluminum, Dimensions (L x W x H): 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions), Volume: 73.6 L (Liters Incl. Protrusions), Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support), Power Supply Support: ATX, PCI Expansion Slots: 8, 5.25" Drive Bays: 0, 3.5" Drive Bays: 0, 2.5" / 3.5" Drive Bays (Combo): 2, 2.5" Drive Bays: 3, I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C, I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic), Pre-installed Fans - Front: 2x SickleFlow 200 ARGB, Pre-installed Fans - Top: N/A, Pre-installed Fans - Rear: 1x SickleFlow 120 ARGB, Fan Support - Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm, Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm, Fan Support - Rear: 1x 120mm, Fan Support - Side: 3x 120mm, 3x 140mm, Radiator Support - Front: 120 / 140 / 240 / 280 / 360 / 420 mm, Radiator Support - Top: 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel), Radiator Support - Rear: 120 mm, Radiator Support - Side: 240 / 280 / 360 / 420 mm, Dust Filters: Top, Front, Bottom, Right side panel, Clearance - CPU Cooler: 190 mm, Clearance - PSU: 235 mm, Clearance - Graphics Card: L: 485 mm (incl. power connector), H: 190 mm (incl. power connector), Included Accessories: GPU Support Bracket / ARGB PWM Hub, Cable Routing - Behind Motherboard Tray: 43 mm, Warranty: 2 years, Size: Mid Tower, Series: MasterFrame Series
