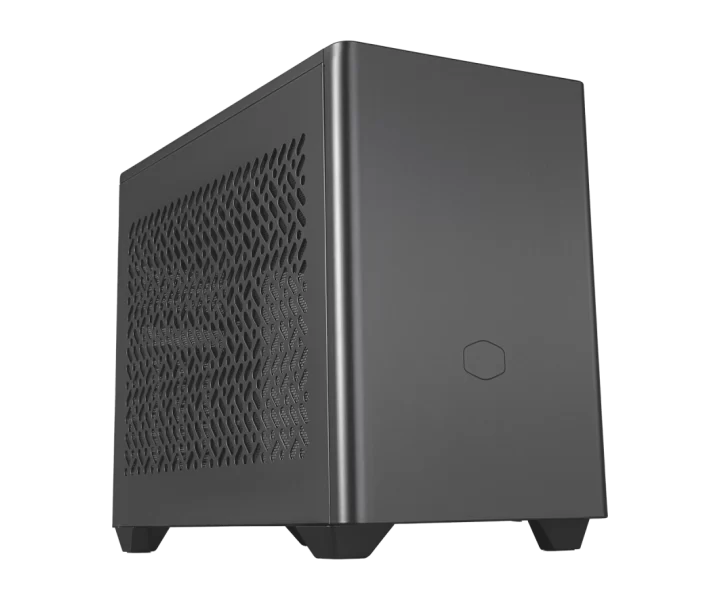

Cooler Master MasterBox NR200P V2 özellikleri ve fiyatları

Cooler Master MasterBox NR200P V2 teknik özellikleri

Model kodu

NR200PV2-KCNN-S00

part Number

NR200PV2-KCNN-S00

case Form Factor

Mini ITX

motherboard Support

Motherboard Support: Mini-ITX, Max. size: 170 x180mm

Boyutlar

Dimensions (L x W x H): 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

panel Materials

Materials - Exterior: SGCC Steel, Mesh, ABS Plastic; Materials - Left Side Panel: Tempered Glass x1, Steel x1

side Panel Material

Materials - Left Side Panel: Tempered Glass x1, Steel x1

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C; I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

included Fans

Pre-installed Fans - Bottom: 1x 120mm 650~1800rpm PWM SickleFlow

fan Mounts

Fan Support - Top: 2x 120/140mm; Fan Support - Bottom: 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)

radiator Support

Radiator Support - Top: 120 / 140 / 240 / 280mm

drive Bays

5.25" Drive Bays: 0; 3.5" Drive Bays: 1 (Max. 2, remove bottom fan); 2.5" / 3.5" Drive Bays (Combo): 1; 2.5" Drive Bays: 1 (Max. 2)

dust Filters

Dust Filters: Bottom, Left, Right, Top Panels

psu Support

Power Supply Support: SFX, SFX-L

clearance Conditions

Clearance - CPU Cooler: 67mm; Clearance - PSU: 130mm; Clearance - GFX: Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)

Garanti

Warranty: 2 years

Kutu içeriği

Included Accessories: 1x PCIe 4.0 x16 riser cable, 1x GPU Holder

expansion Slots

3

cpu Cooler Max Height Mm

67

psu Max Length Mm

130

Üreticinin ayrıntılı teknik bilgileri

Model Number: MasterBox NR200P V2: NR200PV2-KCNN-S00, MasterBox NR200P V2 White: NR200PV2-WCNN-S00, Exterior Color: Black, White / Grey, Materials - Exterior: SGCC Steel, Mesh, ABS Plastic, Materials - Left Side Panel: Tempered Glass x1, Steel x1, Dimensions (L x W x H): 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions), Volume: 18.25L, Motherboard Support: Mini-ITX, Max. size: 170 x180mm, Expansion Slots: 3, 5.25" Drive Bays: 0, 3.5" Drive Bays: 1 (Max. 2, remove bottom fan), 2.5" / 3.5" Drive Bays (Combo): 1, 2.5" Drive Bays: 1 (Max. 2), I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C, I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic), Included Accessories: 1x PCIe 4.0 x16 riser cable, 1x GPU Holder, Pre-installed Fans - Top: N/A, Pre-installed Fans - Front: N/A, Pre-installed Fans - Rear: N/A, Pre-installed Fans - Bottom: 1x 120mm 650~1800rpm PWM SickleFlow, Fan Support - Top: 2x 120/140mm, Fan Support - Side: N/A, Fan Support - Rear: N/A, Fan Support - Bottom: 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom), Radiator Support - Top: 120 / 140 / 240 / 280mm, Radiator Support - Side: N/A, Radiator Support - Rear: N/A, Radiator Support - Bottom: N/A, Clearance - CPU Cooler: 67mm, Clearance - PSU: 130mm, Clearance - GFX: Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot), Dust Filters: Bottom, Left, Right, Top Panels, Power Supply Support: SFX, SFX-L, Warranty: 2 years, Series: MasterBox Series, Size: Mini ITX
