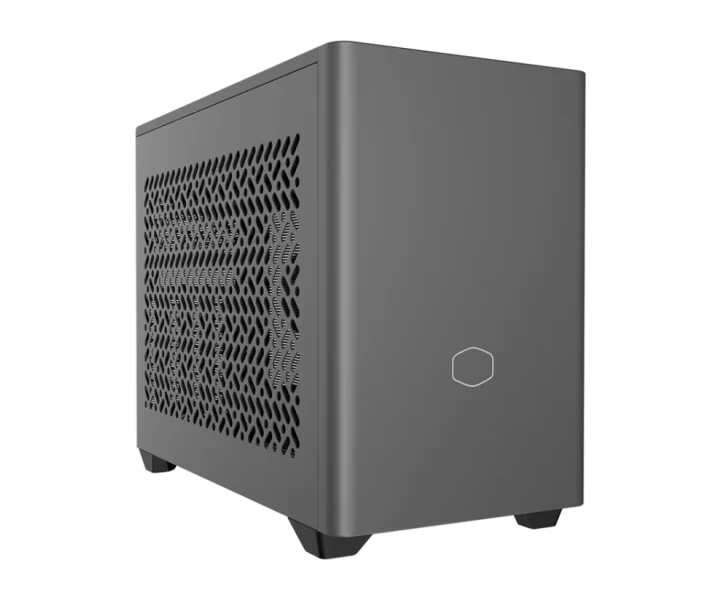

Cooler Master NR200P MAX V2 özellikleri ve fiyatları

Cooler Master NR200P MAX V2 teknik özellikleri

Model kodu

NR200PV2-MCNN85-SL0

part Number

NR200PV2-MCNN85-SL0

case Form Factor

Mini ITX

motherboard Support

Motherboard Support: Mini-ITX, Max. size: 170 x 180mm

Boyutlar

Dimensions (L x W x H): 377 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

panel Materials

Materials - Exterior: SGCC Steel, Mesh, ABS Plastic; Materials - Left Side Panel: Tempered Glass x1, Steel x1

side Panel Material

Materials - Left Side Panel: Tempered Glass x1, Steel x1

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen2x2 Type C; I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio + Mic)

fan Mounts

Fan Support - Top: 2 x 120mm / 2 x 140mm; Fan Support - Bottom: 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)

radiator Support

Radiator Support - Top: 120 / 140 / 240 / 280mm

drive Bays

Drive Bays - 5.25" ODD: 0; Drive Bays - 3.5" HDD: 1 (Max. 2, remove bottom fan); Drive Bays - 3.5" / 2.5" Combo: 1; Drive Bays - 2.5" SSD: 1 (Max. 2)

dust Filters

Dust Filters: Bottom, Left, Right, Top Panels

psu Support

Included Power Supply Unit: V SFX Gold 850W ATX 3.0; Power Supply Support: SFX, SFX-L

clearance Conditions

Clearances - CPU Cooler: 67mm; Clearances - Power Supply: 130mm; Clearances - Graphics Card: Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot); Clearances - Graphics Card: Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot)

Garanti

Warranty: 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)

Kutu içeriği

Included Accessories: 1x PCIe 4.0 x16 Riser Cable, 1x GPU Holder

case Features

Included CPU Cooling Solution: 2x 140mm SickleFlow PWM, 280mm Radiator, Gen 3 Cooler Master Pump / CPU Block

expansion Slots

3

cpu Cooler Max Height Mm

67

psu Max Length Mm

130

Üreticinin ayrıntılı teknik bilgileri

Product Number: NR200PV2-MCNN85-SL0, NR200PV2-MCNN85-SL1, Exterior Color: Grey, Materials - Exterior: SGCC Steel, Mesh, ABS Plastic, Materials - Left Side Panel: Tempered Glass x1, Steel x1, Dimensions (L x W x H): 377 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions), Volume: 18.25L, Motherboard Support: Mini-ITX, Max. size: 170 x 180mm, Expansion Slots: 3, Drive Bays - 5.25" ODD: 0, Drive Bays - 3.5" HDD: 1 (Max. 2, remove bottom fan), Drive Bays - 3.5" / 2.5" Combo: 1, Drive Bays - 2.5" SSD: 1 (Max. 2), I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen2x2 Type C, I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio + Mic), Included Accessories: 1x PCIe 4.0 x16 Riser Cable, 1x GPU Holder, Included CPU Cooling Solution: 2x 140mm SickleFlow PWM, 280mm Radiator, Gen 3 Cooler Master Pump / CPU Block, Included Power Supply Unit: V SFX Gold 850W ATX 3.0, Fan Support - Top: 2 x 120mm / 2 x 140mm, Fan Support - Bottom: 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom), Radiator Support - Top: 120 / 140 / 240 / 280mm, Clearances - CPU Cooler: 67mm, Clearances - Power Supply: 130mm, Clearances - Graphics Card: Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot), Clearances - Graphics Card: Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot), Dust Filters: Bottom, Left, Right, Top Panels, Power Supply Support: SFX, SFX-L, Warranty: 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery), Size: Mini ITX
