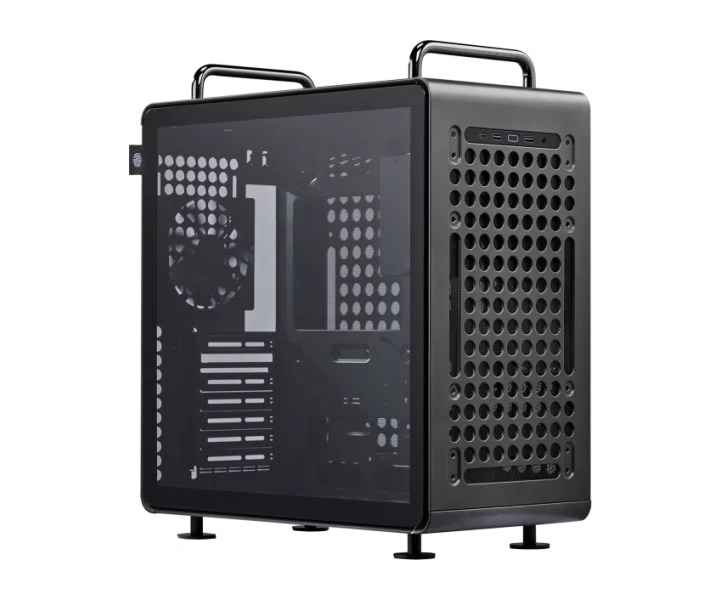

Cooler Master QUBE 540 özellikleri ve fiyatları

Cooler Master QUBE 540 teknik özellikleri

Model kodu

Q540-MGNN-S00

part Number

Q540-MGNN-S00

case Form Factor

Mid Tower

motherboard Support

Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)

Boyutlar

Dimensions (L x W x H): Incl. Protrusions: 438.5 x 225 x 492.1 mm; Dimensions (L x W x H): Excl. Protrusions: 425 x 225 x 425 mm

panel Materials

Materials - Exterior: Steel; Material - Side Panel (Right): Steel; Material - Side Panel (Left): TG

side Panel Material

Material - Side Panel (Right): Steel; Material - Side Panel (Left): TG

front Io

I/O Panel - USB Ports: 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C; I/O Panel - Audio In / Out: 1 x 3.5 Mic / Audio Combo Jack

included Fans

Pre-installed Fans - Rear: 1x 120mm Black Fan

fan Mounts

Fan Support - Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm; Fan Support - Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm; Fan Support - Rear: 1x 120mm; Fan Support - Bottom: 3 x 120 mm / 2 x 140 mm

radiator Support

Radiator Support - Front: 140 / 280 / 360 mm (w/o I/O panel); Radiator Support - Top: 140 / 280 / 360 mm (w/o I/O panel); Radiator Support - Rear: 120 mm; Radiator Support - Bottom: 140 / 280 / 360mm (w/o I/O panel)

drive Bays

Drive Bays - 3.5" HDD: 1 (Shared 3.5" and 2.5" mounting on PSU bracket); Drive Bays - 2.5" SSD: 2 (Max. 5)

dust Filters

Dust Filters: Top / Bottom / Front

psu Support

Power Supply Support: ATX / SFX

clearance Conditions

Clearances - CPU Cooler: 172 mm; Clearances - Power Supply: 200 mm; Clearances - Graphics Card: 415 mm (w/o Front Fan)

Garanti

Warranty: 2 years

case Features

Cable Routing - Behind Motherboard Tray: 27 mm

expansion Slots

7

cpu Cooler Max Height Mm

172

psu Max Length Mm

200

Üreticinin ayrıntılı teknik bilgileri

Product Name: QUBE 540, Model Number: Stardust Iron: Q540-MGNN-S00, Model Number: Moonstone: Q540-LGNN-S00, Color(s): Stardust Iron / Moonstone, Materials - Exterior: Steel, Material - Side Panel (Right): Steel, Material - Side Panel (Left): TG, Dimensions (L x W x H): Incl. Protrusions: 438.5 x 225 x 492.1 mm, Dimensions (L x W x H): Excl. Protrusions: 425 x 225 x 425 mm, Volume (w/o protrusions): 40.64 L, Volume (with panel, protrusions and feet): 48.55 L, Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm), Expansion Slots: 7, Drive Bays - 5.25" ODD: N/A, Drive Bays - 3.5" HDD: 1 (Shared 3.5" and 2.5" mounting on PSU bracket), Drive Bays - 2.5" SSD: 2 (Max. 5), I/O Panel - USB Ports: 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C, I/O Panel - Audio In / Out: 1 x 3.5 Mic / Audio Combo Jack, Fan Support - Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm, Fan Support - Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm, Fan Support - Rear: 1x 120mm, Fan Support - Bottom: 3 x 120 mm / 2 x 140 mm, Preinstalled Fan(s) - Front: N/A, Preinstalled Fan(s) - Top: N/A, Pre-installed Fans - Rear: 1x 120mm Black Fan, Radiator Support - Front: 140 / 280 / 360 mm (w/o I/O panel), Radiator Support - Top: 140 / 280 / 360 mm (w/o I/O panel), Radiator Support - Rear: 120 mm, Radiator Support - Bottom: 140 / 280 / 360mm (w/o I/O panel), Clearances - CPU Cooler: 172 mm, Clearances - Power Supply: 200 mm, Clearances - Graphics Card: 415 mm (w/o Front Fan), Cable Routing - Behind Motherboard Tray: 27 mm, Dust Filters: Top / Bottom / Front, Power Supply Support: ATX / SFX, Warranty: 2 years, Note: -, Series: QUBE Series, Size: Mid Tower
