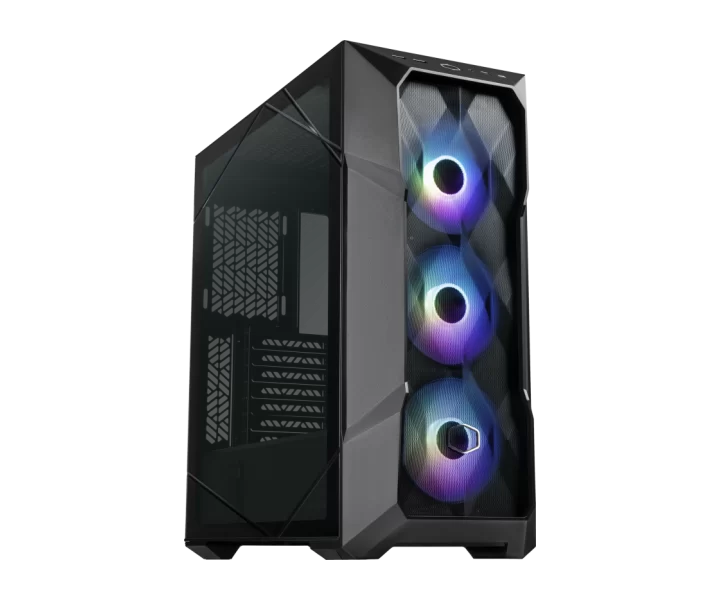

Cooler Master MasterBox TD500 Mesh V2 özellikleri ve fiyatları

Cooler Master MasterBox TD500 Mesh V2 teknik özellikleri

Model kodu

TD500V2-KGNN-S00

part Number

TD500V2-KGNN-S00

case Form Factor

Mid Tower

motherboard Support

Motherboard Support: Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

Boyutlar

Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

panel Materials

Materials - Exterior: Steel, Mesh, Plastic; Materials - Left Side Panel: Tempered Glass

side Panel Material

Materials - Left Side Panel: Tempered Glass

front Io

I/O Panel - USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C; I/O Panel - Audio In / Out: 1x Audio Jack; I/O Panel - Other: 1x ARGB Fan Hub

included Fans

Pre-installed Fans - Front: 3x 120mm CF120 ARGB

fan Mounts

Fan Support - Top: 3x 120mm, 2x 140mm; Fan Support - Front: 3x 120mm, 2x 140mm; Fan Support - Rear: 1x 120mm

radiator Support

Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm); Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm; Radiator Support - Rear: 120mm

drive Bays

3.5" Drive Bays: 2; 2.5" Drive Bays: 3

dust Filters

Dust Filters: Front, Top, Bottom

psu Support

Power Supply Support: Bottom Mount, ATX

clearance Conditions

Clearance - CPU Cooler: 165mm; Clearance - PSU: 200mm (Recommended up to 170mm); Clearance - GFX: 410mm

Garanti

Warranty: 2 years

case Features

Cable Routing - Behind Motherboard Tray: 19mm / 0.74"

expansion Slots

7

gpu Max Length Mm

410

cpu Cooler Max Height Mm

165

Üreticinin ayrıntılı teknik bilgileri

Model Number: TD500 Mesh V2: TD500V2-KGNN-S00, TD500 Mesh V2 White: TD500V2-WGNN-S00, Exterior Color: Black, White, Materials - Exterior: Steel, Mesh, Plastic, Materials - Left Side Panel: Tempered Glass, Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions), Motherboard Support: Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature), Expansion Slots: 7, 3.5" Drive Bays: 2, 2.5" Drive Bays: 3, I/O Panel - USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C, I/O Panel - Audio In / Out: 1x Audio Jack, I/O Panel - Other: 1x ARGB Fan Hub, Pre-installed Fans - Top: N/A, Pre-installed Fans - Front: 3x 120mm CF120 ARGB, Pre-installed Fans - Rear: N/A, Fan Support - Top: 3x 120mm, 2x 140mm, Fan Support - Front: 3x 120mm, 2x 140mm, Fan Support - Rear: 1x 120mm, Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm), Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm, Radiator Support - Rear: 120mm, Clearance - CPU Cooler: 165mm, Clearance - PSU: 200mm (Recommended up to 170mm), Clearance - GFX: 410mm, Cable Routing - Behind Motherboard Tray: 19mm / 0.74", Dust Filters: Front, Top, Bottom, Power Supply Support: Bottom Mount, ATX, Warranty: 2 years, Size: Mid Tower, Series: MasterBox Series, Back Connector Motherboard Support: No
