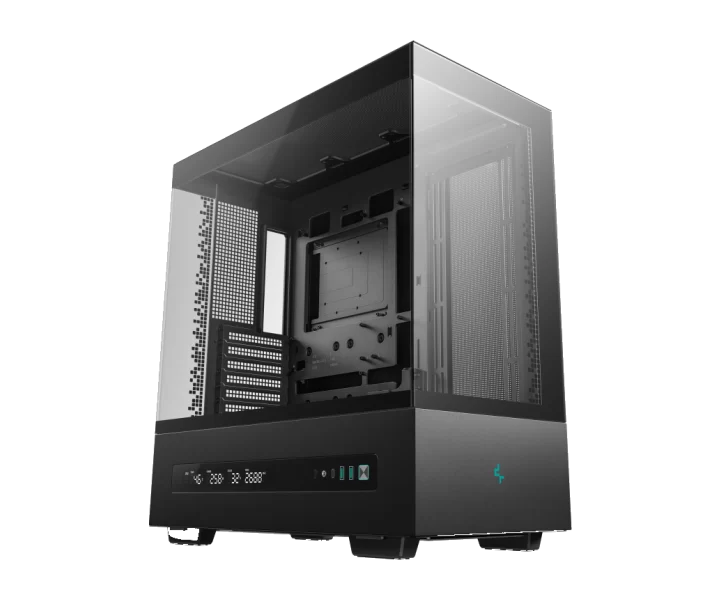

DeepCool CH690 DIGITAL özellikleri ve fiyatları

DeepCool CH690 DIGITAL teknik özellikleri

Model kodu

CH690 DIGITAL

part Number

R-CH690-BKNNA0D-G-1

case Form Factor

ATX

motherboard Support

Mini-ITX / Micro-ATX / ATX; ATX(Rear Connector)/Micro-ATX(Rear Connector)

Boyutlar

481×240×516mm(L×W×H)

panel Materials

ABS+SPCC+Tempered Glass

front Io

USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

fan Mounts

Front:NA; Top:3×120 / 3×140mm; Side:3×120 / 3×140mm; PSU Shrouded :3×120 / 3×140mm; Rear: 1×120 / 1×140mm

radiator Support

Front: NA; Top: 120/140/240/280/360/420mm; Side: 120/140/240/280mm; Bottom: 120/240/360mm

psu Form Factor

ATX PS2（maximum length: 180mm）

clearance Conditions

CPU Cooler Height Limit: 182mm; GPU Length Limit: 450mm

drive Bays

3.5" Drive Bays: 1; 2.5" Drive Bays: 2+1

Ağırlık

9800 g

device Depth

481

En

240 mm

Boy

516 mm

expansion Slots

8

gpu Max Length Mm

450

cpu Cooler Max Height Mm

182

Üreticinin ayrıntılı teknik bilgileri

Product Dimensions: 481×240×516mm(L×W×H), Net Weight: 9.8Kg, Materials: ABS+SPCC+Tempered Glass, Motherboard Support: Mini-ITX / Micro-ATX / ATX; ATX(Rear Connector)/Micro-ATX(Rear Connector), Front I/O Ports: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1, 3.5" Drive Bays: 1, 2.5" Drive Bays: 2+1, Expansion Slots: 8Slots, Pre-Installed Fans: None, Fan Support: Front:NA; Top:3×120 / 3×140mm; Side:3×120 / 3×140mm; PSU Shrouded :3×120 / 3×140mm; Rear: 1×120 / 1×140mm, Radiator Support: Front: NA; Top: 120/140/240/280/360/420mm; Side: 120/140/240/280mm; Bottom: 120/240/360mm, CPU Cooler Height Limit: 182mm, GPU Length Limit: 450mm, Power Supply Type: ATX PS2（maximum length: 180mm）, EAN: 6933412774037, P/N: R-CH690-BKNNA0D-G-1

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
