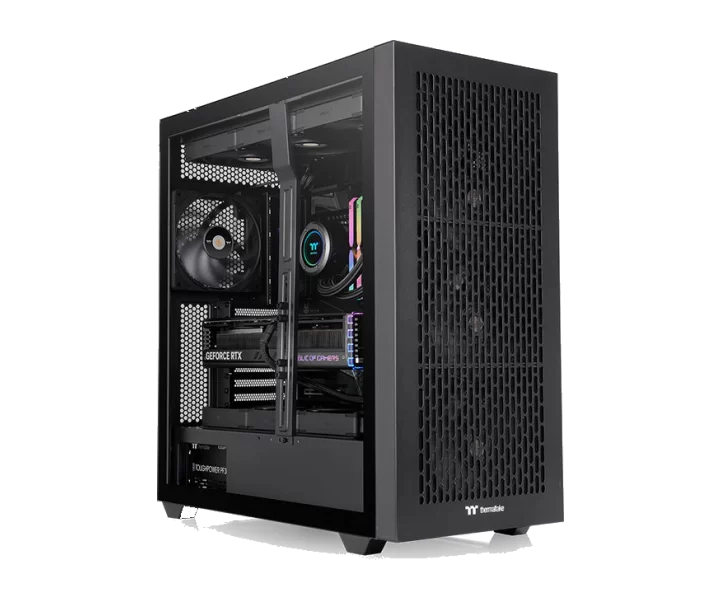

Thermaltake AX500 Full Tower Chassis özellikleri ve fiyatları

Thermaltake AX500 Full Tower Chassis teknik özellikleri

Model kodu

CA-11D-00F1WN-00

part Number

CA-11D-00F1WN-00

case Form Factor

Full Tower

motherboard Support

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX), SSI-CEB, SSI-EEB

Boyutlar

550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch)

panel Materials

SPCC

side Panel Material

Steel + TG

included Fans

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4

front Io

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

psu Support

Standard PS2 PSU (optional)

fan Mounts

Front: 4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Top: 3 x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Rear: 1 x 120mm , 1 x 140mm Right: 3 x 120mm , 2x 120mm , 1x 120mm 2 x 140mm , 1x 140mm Power Cover: 3 x 120mm , 2x 120mm , 1x 120mm

radiator Support

Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear(AIO): 1 x 120mm , 1 x 140mm

clearance Conditions

CPU cooler height limitation: 185mm(Max) VGA length limitation:460mm(Max) PSU length limitation: 200mm (Max)

color

Black

expansion Slots

8

psu Included

Yok

Üreticinin ayrıntılı teknik bilgileri

P/N: CA-11D-00F1WN-00, Model: AX500, Case Type: Full Tower, Dimensions: 550 x 248 x 548 mm, (21.7 x 9.8 x 21.6 inch), Side Panel: Steel + TG, Color: Black, Material: SPCC, Cooling System: 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4, Expansion Slots: 8, Motherboard: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,, 12” x 13” (E-ATX), SSI-CEB, SSI-EEB, Hidden-Connector Motherboard: 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), I/O Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1, PSU: Standard PS2 PSU (optional), Fan Support: Front:, 4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm, 3 x 140mm , 2x 140mm , 1x 140mm, Top:, 3 x 120mm , 2x 120mm , 1x 120mm, 3 x 140mm , 2x 140mm , 1x 140mm, Rear:, 1 x 120mm , 1 x 140mm, Right:, 3 x 120mm , 2x 120mm , 1x 120mm, 2 x 140mm , 1x 140mm, Power Cover:, 3 x 120mm , 2x 120mm , 1x 120mm, Radiator Support: Front (AIO):, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Top (AIO):, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Rear(AIO):, 1 x 120mm , 1 x 140mm, Clearance: CPU cooler height limitation: 185mm(Max), VGA length limitation:460mm(Max), PSU length limitation: 200mm (Max)
